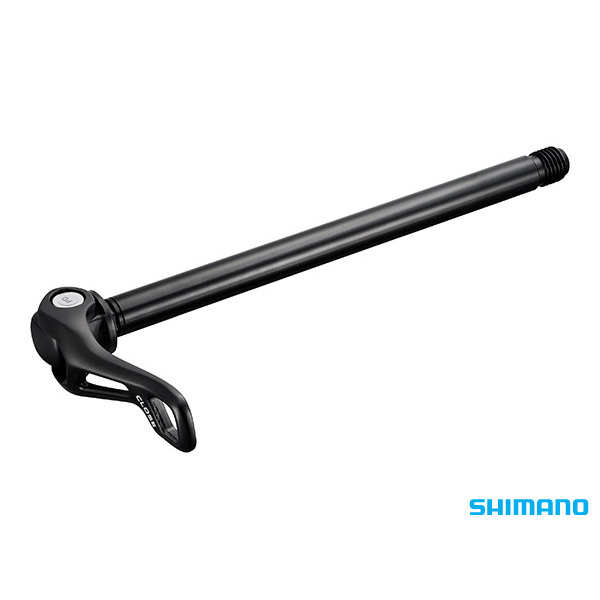

AX-MT700-142x12

SHIMANO - 142x12 mm E-THRU Axle - 166 mm Axle - I-type - MTB - Rear

For modern disc brake bicycles, SHIMANO's E-THRU Axles deliver ease of use and wheel fixing security thanks to quality materials and SHIMANO's internal cam mechanism. I-type axles feature a left side housing to adjust lever position.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Clean and simple design
  • Approximately -10 mm smaller housing (vs. SM-AX78/58)​
  • Easy lever-position adjust with hexagon wrench
  • Adjusting nut integrated into axle
  • Easy and stable operation
  • Stable fixing force
  • Cam structure
  • Fast fixing
  • Optimized thread pitch
  • Lightweight
  • Smaller housing
  • Hollow aluminum axle
  • Same frame requirement as SM-AX78/58
  • MODEL NO: AX-MT700-142x12
  • DEORE XT M8000 Series
  • 75 Average weight
  • Hollow axle
  • 166mm Axle Length
  • M12 x 1.5 Axle Thread pitch
  • 142 x 12mm Axle type
  • I-type (left housing) Lever position adjust
  • Hexagon wrench type Lever position adjustment
SKU SHM-EAXMT70014212
Barcode # 4524667392897
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
