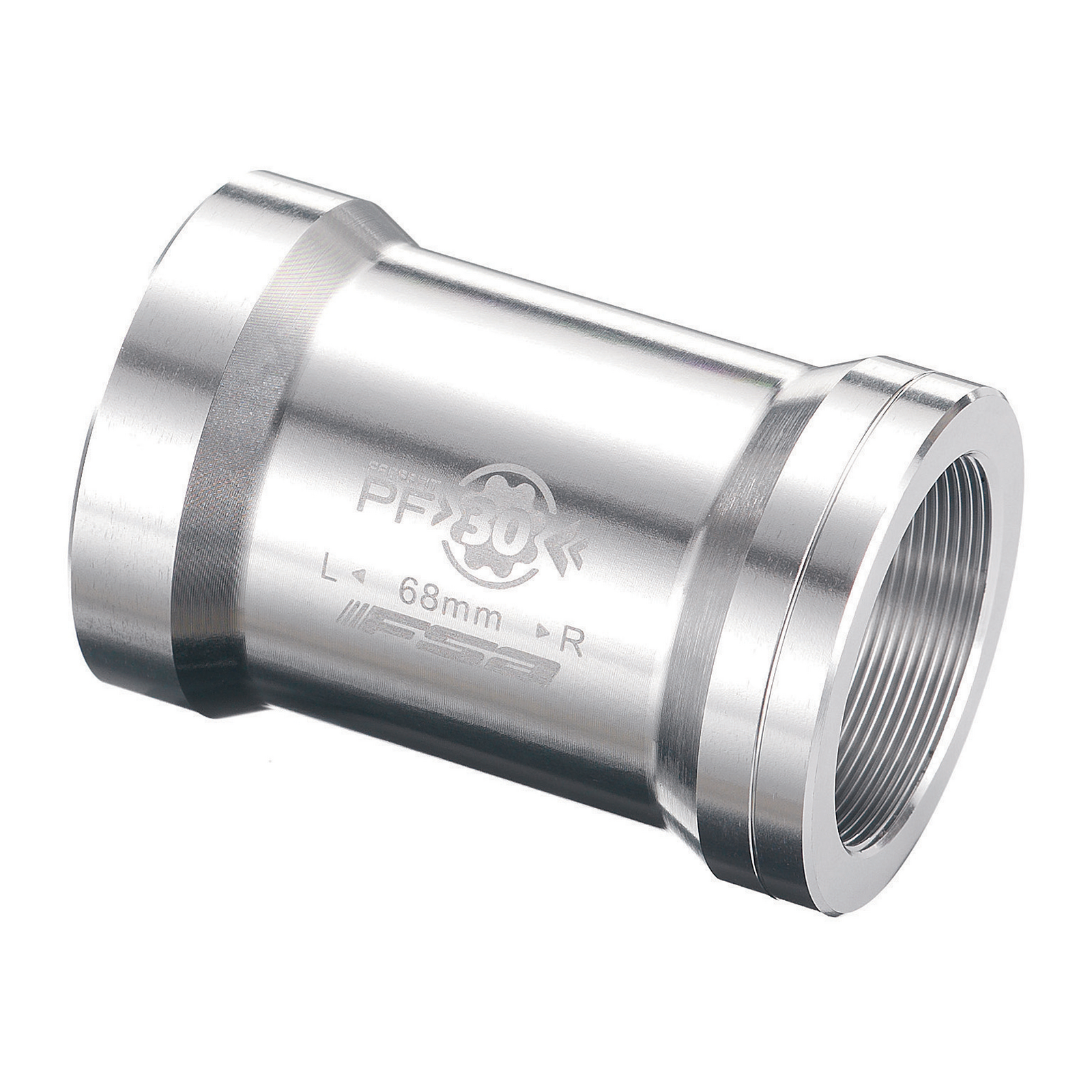

An FSA threaded shell adapter that converts a PF30 shell to a BSA 68mm threaded shell.

Highlights

  • Frame shell: PF30
  • Result: BSA (English) 68mm threaded shell

Details

A threaded shell adapter converts an unthreaded shell into a threaded one, so you can run a threaded bottom bracket.

Fit and compatibility

It suits a frame with a PF30 shell. Once fitted, you'll need a BSA 68mm threaded bottom bracket to suit your crank's spindle. If you're changing crank standards at the same time, check that the new crank's spindle length and chainline suit the frame as well.

Fitting

Bottom brackets need the right tools and a clean, properly prepared shell, and press-fit cups must go in square. Our workshop can fit it and check the crank's preload and play at the same time.

Not sure what shell your frame has? Send us the frame model or a photo of the bottom bracket area and we'll confirm the fit before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Frame shell: PF30
  • Result: BSA (English) 68mm threaded shell
Frame shellPF30
ResultBSA (English) 68mm threaded shell
SKU BPW-FSA-0174
Model # FSA-0174
Barcode # 4712010053506
Brand FSA
