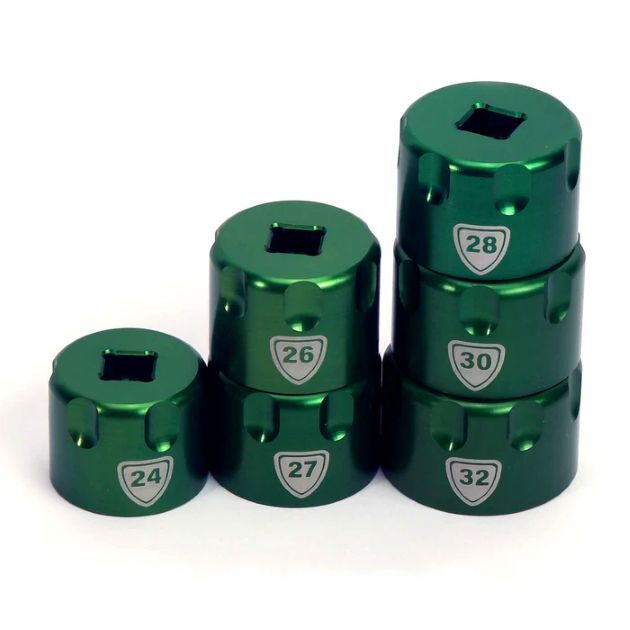

This six-socket set covers the top cap sizes needed for most modern suspension forks, each machined from billet aluminium with zero lead-in to protect the fork's top cap hex.

Highlights

  • Includes 24, 26, 27, 28, 30 and 32mm sockets
  • Zero lead-in, CNC-machined from billet aluminium
  • 3/8 in square drive for a ratchet or torque wrench
  • Finger splines for hand-tightening top caps
  • Made in Bend, Oregon, USA

Purpose-built for suspension service

Standard sockets have a lead-in chamfer that can scratch or round out a fork top cap's hex; Abbey machined these with zero lead-in to avoid that, and kept them short (25 mm) to reduce the chance of camming off under torque.

Compatibility & fit

The set covers 24, 26, 27, 28, 30 and 32mm top caps on a 3/8 in square drive, suiting most modern suspension forks. SCV/Abbey don't list specific fork models per size — check your fork's top cap hex size before ordering.

Sizes & options

Included sizeDrive
24mm3/8 in square
26mm3/8 in square
27mm3/8 in square
28mm3/8 in square
30mm3/8 in square
32mm3/8 in square
Abbey Bike Tools doesn't publish fixed consumer warranty terms for its tools; as workshop equipment built for years of professional use, cover is against manufacturing defects under Australian Consumer Law. For warranty support, return the product to Tune Cycles and we'll manage the claim with Abbey Bike Tools' Australian distributor.
Six sockets: 24, 26, 27, 28, 30 and 32mm, CNC-machined from billet aluminium with zero lead-in, 3/8 in square drive for a ratchet or torque wrench, Finger splines for hand-tightening top caps, Made in Bend, Oregon, USA
Set contents24, 26, 27, 28, 30, 32mm sockets
Drive3/8 in square
Socket length25 mm (1 in) each
MaterialBillet aluminium, CNC-machined
Country of manufactureUSA (Bend, Oregon)
SKU SCV-ABTL-TCSOCKET-SET6
Brand Abbey Tools
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
