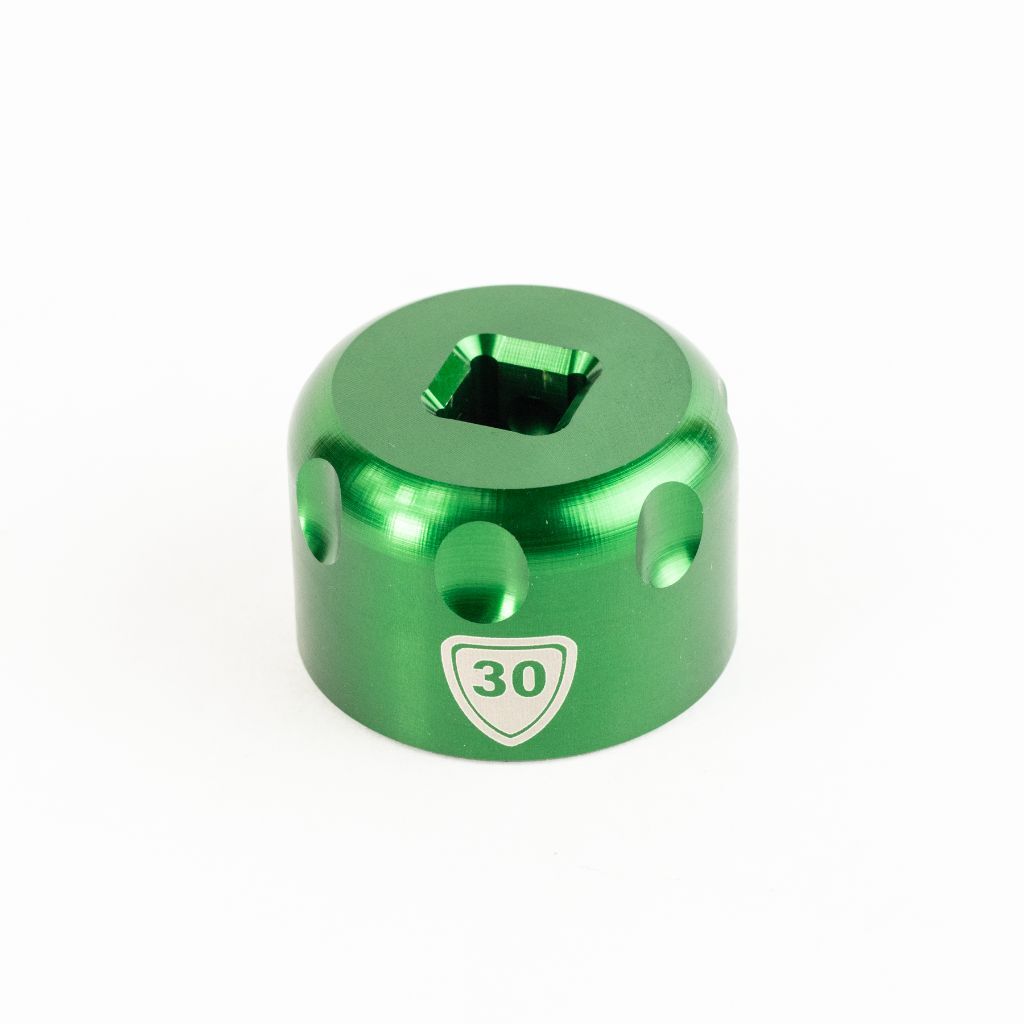

Abbey's suspension top cap sockets are machined from billet aluminium with zero lead-in, so they grip the low-profile hex on a fork top cap without rounding it out the way a standard socket can.

Highlights

  • Zero lead-in, CNC-machined from billet aluminium
  • 3/8 in square drive for a ratchet or torque wrench
  • Finger splines for running the top cap in by hand
  • Short 25 mm (1 in) length to reduce cam-off risk under torque
  • Made in Bend, Oregon, USA

Purpose-built for suspension service

Standard sockets have a lead-in chamfer that reduces contact with a fork top cap's hex and can scratch or deform it; Abbey machined these with zero lead-in specifically to avoid that.

Compatibility & fit

Fits 30mm suspension fork top caps taking a 3/8 in square drive. SCV/Abbey describe the range as suiting most modern suspension forks but don't name specific fork models for each size — check your fork's top cap hex size before ordering.

Abbey Bike Tools doesn't publish fixed consumer warranty terms for its tools; as workshop equipment built for years of professional use, cover is against manufacturing defects under Australian Consumer Law. For warranty support, return the product to Tune Cycles and we'll manage the claim with Abbey Bike Tools' Australian distributor.
CNC-machined from billet aluminium with zero lead-in, 3/8 in square drive for a ratchet or torque wrench, Finger splines for hand-tightening top caps, Short 25 mm length reduces cam-off risk, Made in Bend, Oregon, USA
Socket size30mm
Drive3/8 in square
Length25 mm (1 in)
MaterialBillet aluminium, CNC-machined
Country of manufactureUSA (Bend, Oregon)
SKU SCV-ABTL-TCSOCKET30MM
Brand Abbey Tools
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
