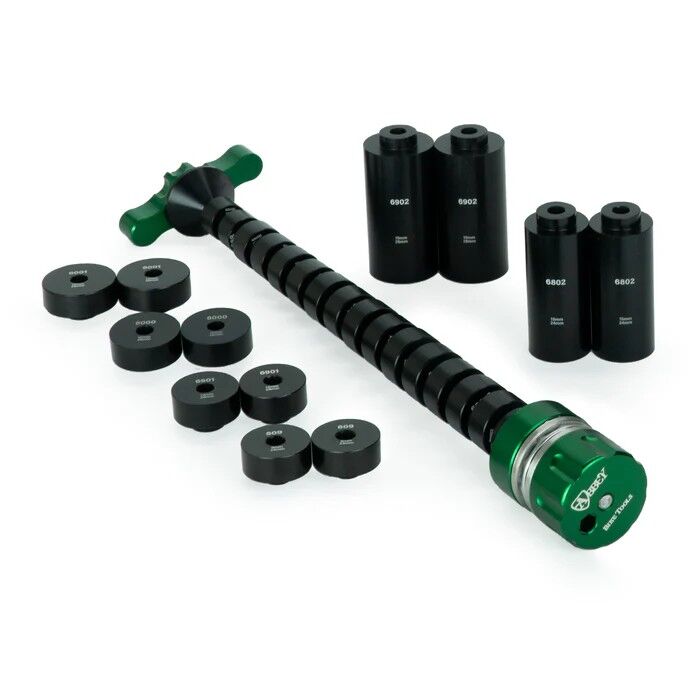

The Micro Modular Bearing Press is built for smaller hub and suspension bearings, up to 13mm inside diameter.

Highlights

  • True thrust bearing in the press head isolates torque from compression, so bearings press in square
  • Smooth enough to use without handles
  • 6mm hex in the top of the press head as a bail-out for excessively tight fits

Drifts included

Drifts to precisely fit these bearing sizes: 608, 608-9, 609, 619, 688, 6000, 6001, 6701, 6800, 6801, 6802, 6900, 6901, 6902.

Compatibility & fit

For bearings with an inside diameter of 13mm and smaller. Uses Abbey's 1/4in-shaft micro press system — additional micro-press drifts and parts (including the Spin Nut) are sold separately. Made in Bend, Oregon.

Abbey Bike Tools doesn't publish fixed consumer warranty terms for this item, so cover is assessed against manufacturing defects under normal workshop use, and for warranty support, return the product to Tune Cycles and we'll manage the claim with Abbey Bike Tools' Australian distributor.
  • Thrust-bearing press head for square, low-effort pressing
  • Drifts for 14 common small bearing sizes included
  • 6mm hex bail-out in the press head
  • Handles not required for smooth operation
Bearing ID range13mm and smaller
Drifts included608, 608-9, 609, 619, 688, 6000, 6001, 6701, 6800, 6801, 6802, 6900, 6901, 6902
Shaft system1/4in (Abbey micro press)
OriginBend, Oregon, USA
SKU SCV-ABTLABTMIPRESS
Brand Abbey Tools
Shipping Weight 0.0500kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
