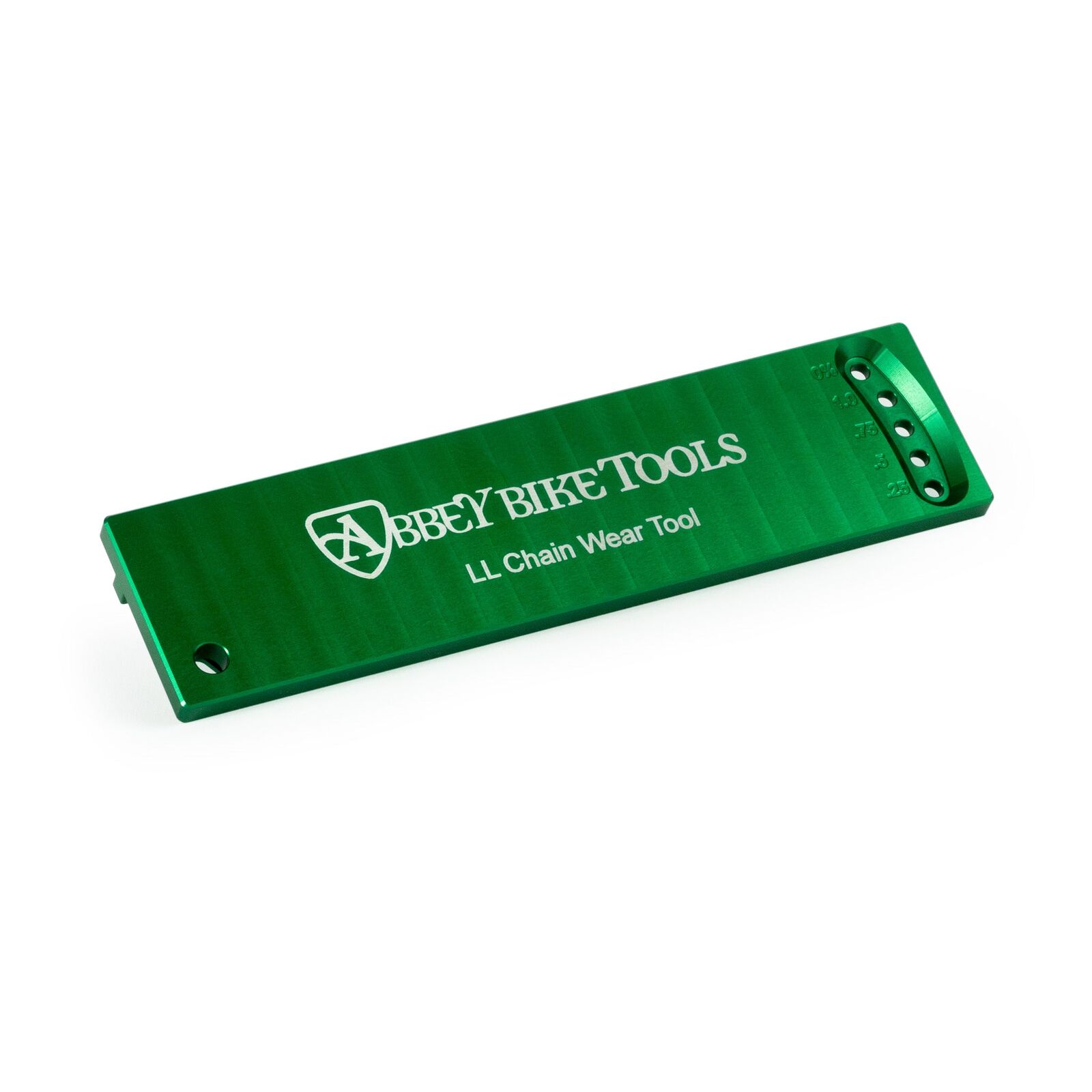

The LL Chain Wear Tool checks both linear wear (stretch) and lateral wear, CNC-machined from billet for accuracy that laser-cut gauges can't match.

Highlights

  • Locates both sides of the roller in a V-notch to find the roller centre regardless of roller diameter — accounting for the larger rollers on SRAM's flat-top chains
  • Lateral wear check: pinch the chain against the boss, held vertical, and read the sag
  • CNC-machined from billet, held to tolerances Abbey states as tight as roughly 0.005mm

How it's read

Linear wear lines the roller up against one of five holes on the opposite end. For lateral wear, check the chain off the bike; Abbey Bike Tools states anything below a reading of 6 on their scale isn't shifting well and a new chain will improve shifting quality.

Compatibility & fit

Designed around modern 1x drivetrains, including SRAM's flat-top chains. Made in Bend, Oregon.

Abbey Bike Tools doesn't publish fixed consumer warranty terms for this item, so cover is assessed against manufacturing defects under normal workshop use, and for warranty support, return the product to Tune Cycles and we'll manage the claim with Abbey Bike Tools' Australian distributor.
  • Checks linear (stretch) and lateral chain wear
  • V-notch design accounts for SRAM flat-top roller diameter
  • CNC-machined from billet for accuracy
  • Five-hole scale for linear wear
Wear types checkedLinear (stretch) and lateral
ConstructionCNC-machined billet
OriginBend, Oregon, USA
SKU SCV-ABTL-CHN-STD-WRPLT
Brand Abbey Tools
Shipping Weight 0.3500kg
Shipping Width 0.120m
Shipping Height 0.040m
Shipping Length 0.150m
