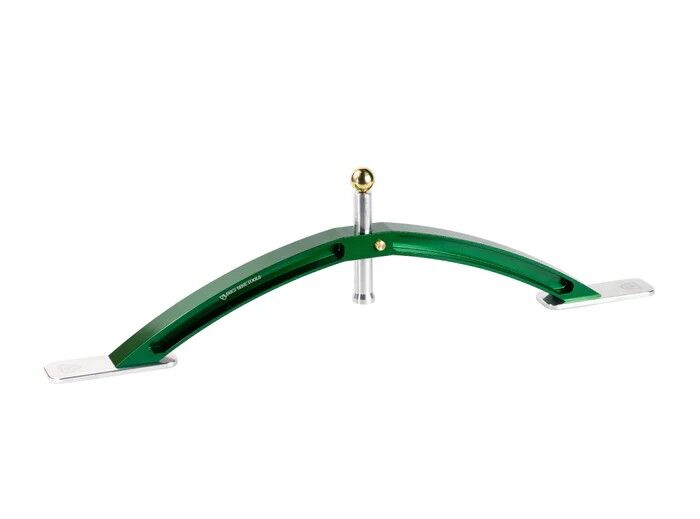

The Harbor Gauge is Abbey's precision wheel dishing tool, machined from aluminium billet with a spring-loaded plunger for a fast, repeatable dish check.

Highlights

  • Compatible with wheels from 20 to 29 inches and all hub combinations
  • Spring-loaded plunger — press the release button and the plunger drops to the hub face, no threaded indicator to wind in
  • Stand-off feet included, so dish can be checked with the tyre still fitted

Compatibility & fit

Fits wheels from 20 to 29 inches across hub combinations. Made in Bend, Oregon. The name comes from a Sydney customer, Dave Rome, who thought the tool resembled the Sydney Harbour Bridge.

Abbey Bike Tools doesn't publish fixed consumer warranty terms for this item, so cover is assessed against manufacturing defects under normal workshop use, and for warranty support, return the product to Tune Cycles and we'll manage the claim with Abbey Bike Tools' Australian distributor.
  • Machined aluminium construction
  • Spring-loaded plunger release
  • Fits 20-29 inch wheels, all hub combinations
  • Stand-off feet for checking dish with the tyre fitted
Wheel size range20-29 inches
MaterialMachined aluminium
MechanismSpring-loaded plunger
OriginBend, Oregon, USA
SKU SCV-ABTL-STD-HRBRDGG
Brand Abbey Tools
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
