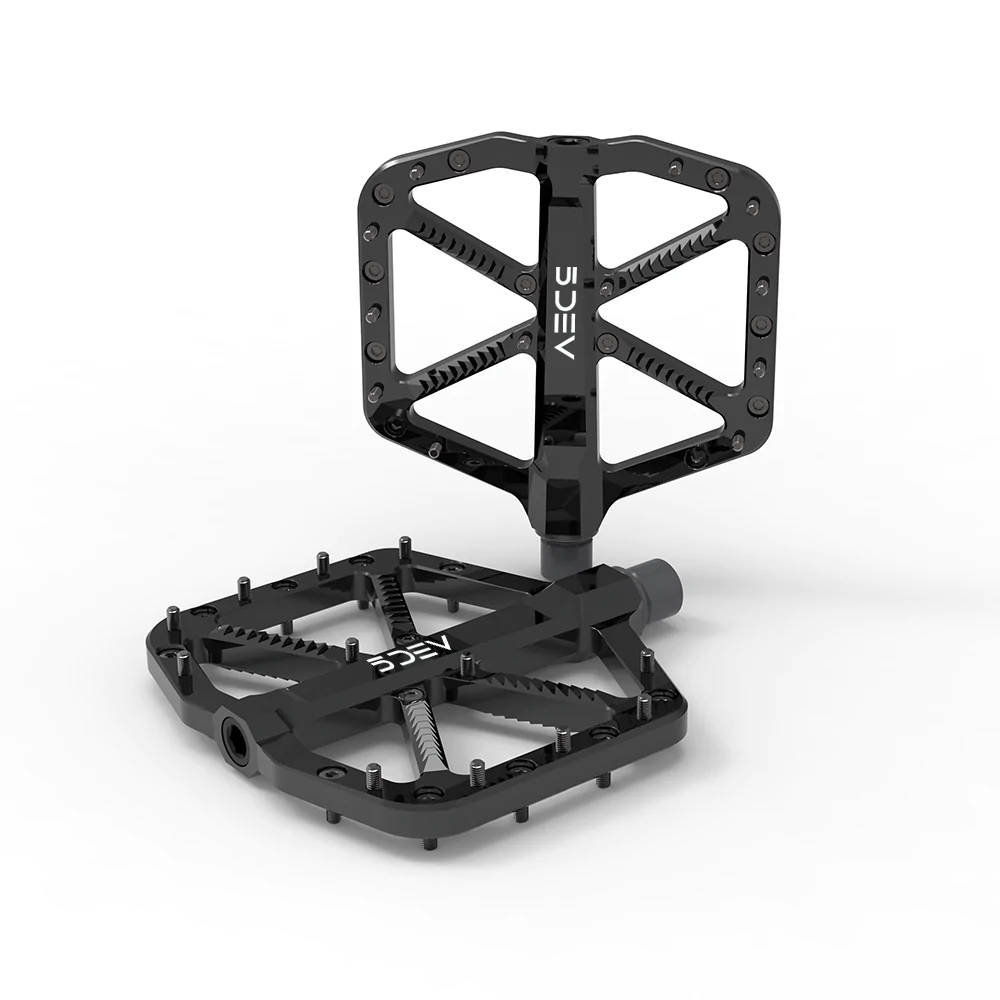

Maximum grip from a flat. The Trail/Enduro is 5DEV's most aggressive and lightest pedal: 343 g, a low profile, 24 pins and a sharp 5-axis machined body, made for advanced riders who want the most traction and performance from a flat pedal.

Highlights

  • 343 g, 5DEV's lightest pedal
  • 12 pins per side (24 in total), M3 x 8 mm, extra pins included
  • 106 x 110 mm 6061-T6 aluminium platform, 5-axis machined
  • 0.448 in (about 11.4 mm) profile; 1° dish with the centre pins fitted, 2.5° without
  • 17-4 stainless steel axle on 1 IGUS bushing and 4 bearings

Built for aggressive riding

Strategic pin placement and machined grooves give grip for DH, bike park, enduro and aggressive trail riding. Pull the centre pins and the dish goes from 1° to 2.5°, so you can tune how the pedal cups your shoe.

Looking after them

If side-to-side play develops, 5DEV publishes a simple fix: remove the end cap with a 6 mm hex key, take out the small retaining bolt with a 2.5 mm hex key, add blue thread-lock and reassemble. Or bring them in and we'll sort it. 5DEV recommends grease or anti-seize on the pedal threads when fitting. The Tune workshop can fit them; fitting is a separate workshop service and isn't included in the price.

Compatibility & fit

  • Flat pedal for flat shoes (no cleats).
  • Riding: DH, bike park, enduro and aggressive trail.
  • Pedal thread size isn't published by 5DEV; ask us if you're fitting them to an unusual crank.

Options

OptionColour
BlackBlack
Raw/ClearRaw/Clear

Both colours share the same platform, pins, axle and internals.

5DEV backs its products with a limited 5-year warranty from the date of manufacture, covering defects in materials and workmanship. If 5DEV finds a failure was caused by such a defect, it replaces the affected product with a comparable model. The warranty is void if a part from another manufacturer or retailer is used in place of the 5DEV component, so talk to us before replacing anything.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with 5DEV's Australian distributor.

  • 343 g, 5DEV's lightest pedal
  • 12 pins per side, extra pins included
  • 106 x 110 mm 6061-T6 platform, 5-axis machined
  • 0.448 in profile, 1° or 2.5° dish
  • 17-4 stainless steel axle
  • 1 IGUS bushing and 4 bearings
Platform material6061-T6 aluminium
Platform size106 x 110 mm
Pins12 per side, M3 x 8 mm (extra pins included)
Dish1° with centre pins, 2.5° without
Profile0.448 in (about 11.4 mm)
Axle17-4 stainless steel
Internals1 IGUS bushing, 4 bearings
Weight343 g (5DEV figure)
ColoursBlack, Raw/Clear
SKU DSG-5DEVTRAILPEDAL
Brand 5DEV
