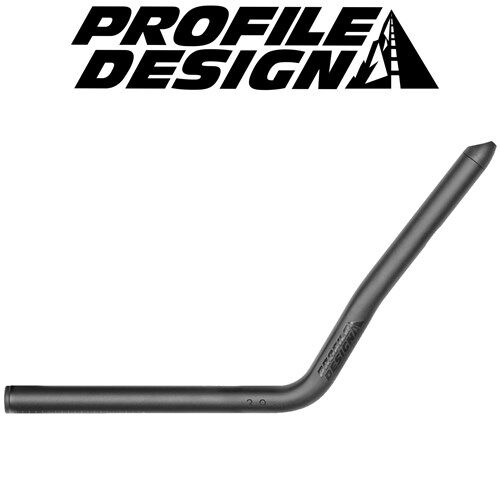

Profile Design 39AH Aluminium Aerobar Extensions 365 mm
SKU code: BCP-AC39HEXT365
The 39AH (39°, aluminium high rise) is designed to pair with pad wedges to give a non-tilting aerobar 10° or 15° of tilt. The extension starts at a 54° bend: add a 15° wedge and the grip sits at 39°, or a 10° wedge for 44°.
Highlights
- 54° bend, 39° with a 15° wedge or 44° with a 10° wedge
- 186 mm rise (bottom to top)
- Aero-shaped rise section with a lateral grip offset, 15 mm total
- Grip long enough to shorten for use with the 10° wedge
- 6061-T6 aluminium, 227 g pair
Who it's for
Use the 39AH with one of Profile Design's pad wedges and an Ergo+ or Race+ armrest to add tilt and comfort to a non-Profile Design aerobar.
Compatibility & fit
22.2 mm diameter in the clamping area, so the extensions fit any aerobar designed for 22.2 mm extensions. Profile Design notes that its pad wedges aren't compatible with Profile Design brackets, so the 39AH isn't recommended for Profile Design bars.
Designed for cables to exit at the rear of the extensions, so there are no cable exit holes; pre-drilled for bar-end shifter cable routing. Sold as a pair (one left, one right).
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 54° bend for use with 10° or 15° pad wedges
- 186 mm rise
- 365 mm long, sold as a pair
- 22.2 mm clamp diameter
- Rear-exit cable routing, drilled for bar-end shifters
- 6061-T6 aluminium, 227 g pair
| Length | 365 mm |
|---|---|
| Angle | 54° bend; 39° with a 15° wedge, 44° with a 10° wedge |
| Rise | 186 mm (bottom to top) |
| Outer diameter | 22.2 mm |
| Offset | 15 mm total |
| Material | 6061-T6 aluminium |
| Cable routing | Rear exit; pre-drilled for bar-end shifter cables |
| Includes | Pair (one left, one right) |
| Colour | Anodised matte black |
| Weight (brand-listed) | 227 g pair |
| SKU | BCP-AC39HEXT365 |
| Model # | AC39HEXT365 |
| Barcode # | 0723660011413 |
| Brand | Profile Design |
| Shipping Weight | 0.4070kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
