27.5" / 650B Front Wheel – Sturmey-Archer HBT30-F Front Track Hub, Alex DM18 24.4mm Black Rim, 36H
SKU code: BPW-93213-A1
A clean, polished front wheel for a single-speed, fixed-gear or classic build: this 27.5" / 650B wheel is laced to Sturmey-Archer's HBT30-F sealed-bearing track hub.
- Sealed cartridge bearings, a chromoly axle and a high-polish silver finish, per Sturmey-Archer

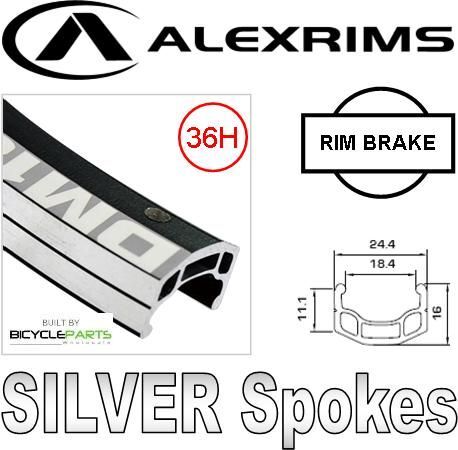

- Alex DM18 rim, 24.4 mm wide, double-wall, laced 36H
- Silver spokes, hand-laced, tensioned and trued
- Built to order to a standard spec, not machine-laced
The hub. Sturmey-Archer lists the HBT30-F as: 6061 aluminium hub shell; sealed cartridge bearings; chromoly axle; high-polish anodised alloy finish; hub weight 270 g.
Fit. It needs a fork with 100 mm front spacing and takes a nutted axle. The rim has a machined braking surface for rim brakes.
Built to order. Hand-built by our wheel builder and dispatched in about 5 days.
Not sure it suits your bike? Send us the make, model and year and we'll check before you order. Tune Cycles can also fit it and set up the gears and brake at the same visit.
Sturmey-Archer and the rim maker don't publish consumer warranty terms we can quote for this build. The wheel is covered against defects in materials and manufacture. Normal wear, crash or impact damage and misuse are not covered. If you have a problem, return the item to Tune Cycles with your proof of purchase and we'll manage the claim.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Sturmey-Archer HBT30-F: 6061 aluminium hub shell
- Alex DM18 rim, 24.4 mm wide, black, 36H double-wall
- Silver spokes, hand-laced and trued
- Brake: rim brake (machined braking surface)
- 3/8" nutted axle, 100 mm over-locknut width
- Built to order by our wheel builder
| Wheel size | 27.5" / 650B (ISO 584) |
| Position | Front |
| Rim | Alex DM18 double-wall (pinned joint) |
| Rim width (external) | 24.4 mm |
| Rim colour | Black |
| Spoke count | 36H |
| Spokes | Silver |
| Hub | Sturmey-Archer HBT30-F |
| Hub type | Front Track Hub |
| Gears | Single speed |
| Brake | Rim brake (machined braking surface) |
| Axle | 3/8" nutted axle |
| Over-locknut width (OLD) | 100 mm |
| Hub colour | Silver |
| Hub weight (Sturmey-Archer) | 270 g |
| Supplier code | BPW 93213-A1 |
| SKU | BPW-93213-A1 |
| Model # | 93213-A1 |
| Brand | Alex Rim |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
