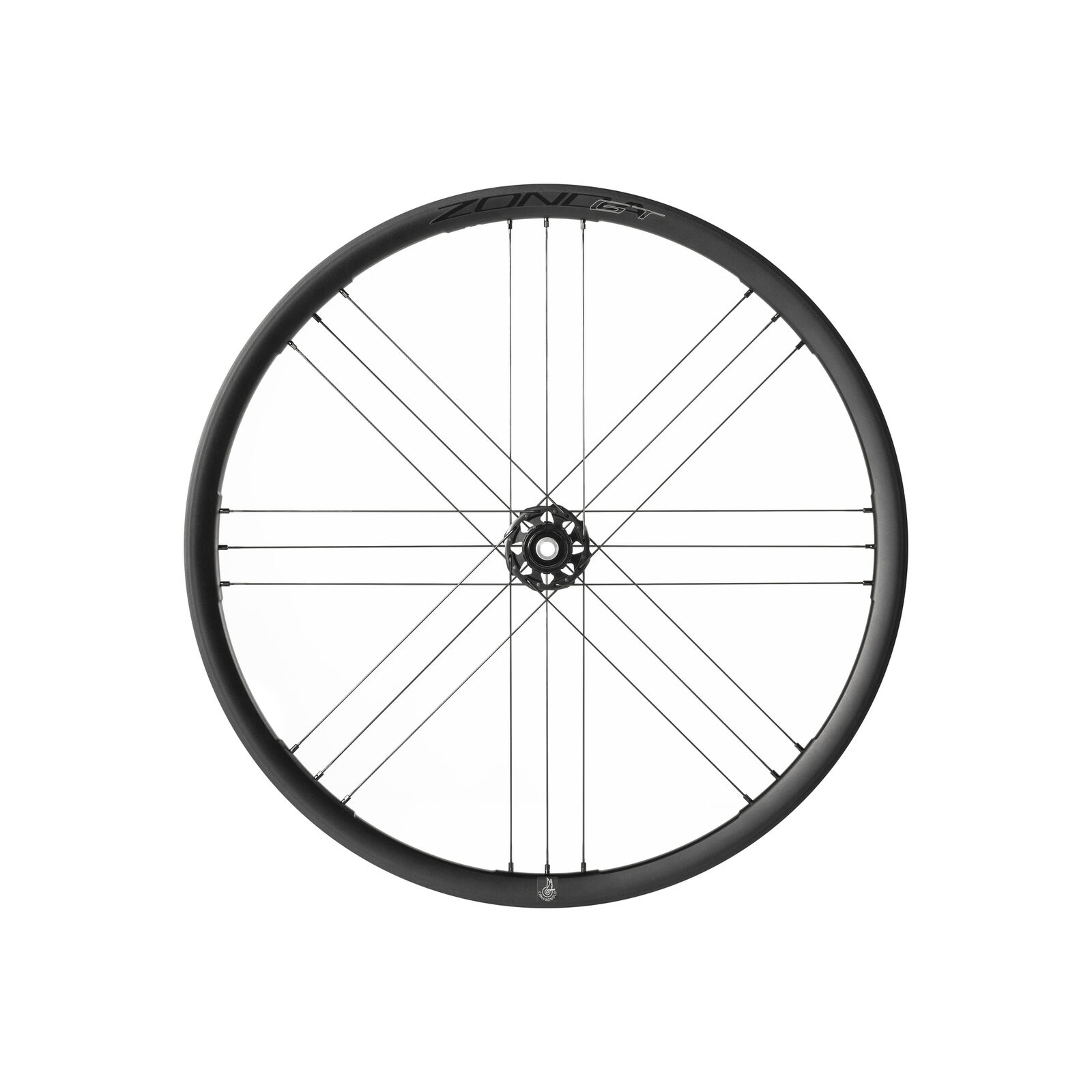

Where gravel meets road: the Zonda GT is an aluminium disc brake wheelset with a 23 mm internal rim that takes wide gravel tyres or narrower road tyres, designed to pair with Campagnolo's Ekar GT groupset. This version has a SRAM XDR freehub body.

Highlights

  • Aluminium C23 rim, 23 mm internal
  • 2-Way Fit: clincher or tubeless
  • G3 spoke pattern, 24 spokes per wheel
  • Cup-and-cone bearings
  • Claimed 1,690 g (780 g front, 910 g rear)

Versatile rim

The black anodised aluminium rim is 29.5 mm deep (28 mm in the milled zones) and 28 mm wide, with a 23 mm internal width shaped for smooth airflow. 2-Way Fit lets you train on clinchers and switch to tubeless, or fit a tube if you puncture a tubeless tyre.

Hubs and spokes

Black anodised aluminium hubs with oversize flanges run on cup-and-cone steel bearings, which handle lateral, radial and axial loads smoothly. Each wheel has 24 stainless steel spokes, bladed to 1.6 mm, in the G3 pattern, with self-locking aluminium nipples outside the rim that resist loosening under vibration. Each wheel is hand-assembled and checked by a Campagnolo technician.

Compatibility & fit

Disc brake only, AFS rotor interface, 12 mm thru-axles, 100 mm front and 142 mm rear. The SRAM XDR freehub body takes SRAM XDR cassettes. Campagnolo also makes the Zonda GT with N3W, HG and XDR freehub bodies. Cassette fitting and tubeless set-up are separate workshop services at Tune Cycles.

Campagnolo guarantees its products for three years from the date of purchase against defects in materials and workmanship; proof of purchase is required. The warranty doesn't cover crash damage, normal wear and tear, incorrect installation, use with non-compatible parts, or consumables such as tyres and rim tape. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Aluminium C23 rim, 23 mm internal, 29.5 mm deep
  • 2-Way Fit clincher/tubeless
  • 24 G3 stainless spokes per wheel, self-locking nipples
  • Cup-and-cone steel bearings, oversize flanges
  • AFS disc, 12 mm thru-axles
  • XDR freehub body
BrandCampagnolo
ModelZonda GT Disc Brake
RimBlack anodised aluminium, 29.5 mm deep (28 mm in milled zones), 28 mm wide
Internal width23 mm (C23)
TyresClincher or tubeless (2-Way Fit)
Spokes24 per wheel, stainless steel, bladed to 1.6 mm, G3 pattern
NipplesAluminium, self-locking, outside the rim
HubsBlack anodised aluminium, oversize flanges, cup-and-cone steel bearings
Axles12 mm thru-axle, 100 mm front, 142 mm rear
Brake interfaceAFS disc
FreehubSRAM XDR
Weight1,690 g per pair (780 g front, 910 g rear, claimed)
IncludesUser guide
SKU FES-WC4450AP5A110
Brand Campagnolo
