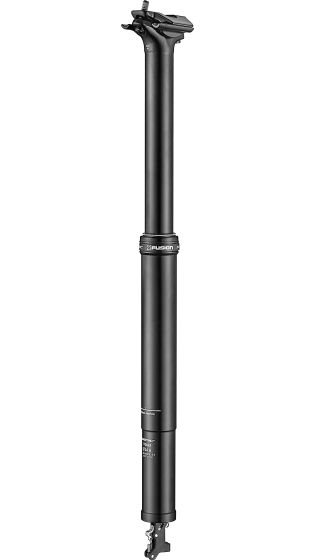

The X-Fusion Manic dropper post uses a simple, sealed cartridge that's easily removed for servicing, giving a smooth action with internal cable routing throughout. It spans four diameters and five travel lengths, so there's a Manic for gravel bikes through to enduro rigs.

Highlights

  • Sealed, removable cartridge internals
  • Internal cable routing only
  • Key-way design resists lateral twisting
  • Two-bolt saddle head with a wide range of angle adjustment
  • Passed ISO/TS 4210-10:2020 testing for e-bike use

Action and routing

Inside the Manic is a closed, sealed cartridge that can be removed from the post for servicing without a full rebuild. Cable routing is internal only, and the post is actuated by an alloy, shifter-style handlebar remote lever, sold separately.

Compatibility & fit

Choose the diameter to match your frame's seat tube and the travel to suit your seat height drop. Our workshop can fit a Manic with internally routed cable, including running the housing through the frame.

Sizes & options

DiameterTravelBuildLengthWeight
27.2mm50mmStandard350mm410g
27.2mm100mmStandard350mm465g
30.9mm150mmStandard425mm570g
30.9mm170mmStandard469mm627g
31.6mm100mmStandard310mm465g
31.6mm125mmStandard361mm575g
31.6mm150mmStandard425mm570g
31.6mm170mmStandard469mm627g
34.9mm100mmStandard310mm465g
34.9mm125mmCustom-assembled build361mm575g
34.9mm150mmStandard or custom-assembled build425mm570g
34.9mm170mmStandard469mm627g
X-Fusion dropper posts are covered by the brand's standard limited warranty against manufacturing defects. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, X-Fusion's Australian distributor.
  • Sealed, removable cartridge internals
  • Internal cable routing only
  • Key-way design resists lateral twisting
  • Two-bolt saddle head with wide angle adjustment
  • Passed ISO/TS 4210-10:2020 e-bike testing
CartridgeSealed, removable internal cartridge
Cable routingInternal only
HeadTwo-bolt saddle clamp
ColourBlack
RemoteAlloy, shifter-style lever, sold separately
CertificationISO/TS 4210-10:2020 (e-bike rated)
SKU LNK-P-XFU-MANIC-POST
Brand X-Fusion
Shipping Weight 0.7000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.500m
