Profile Design WINGc Carbon Aero Base Bar 42cm
SKU code: BCP-RHWC421

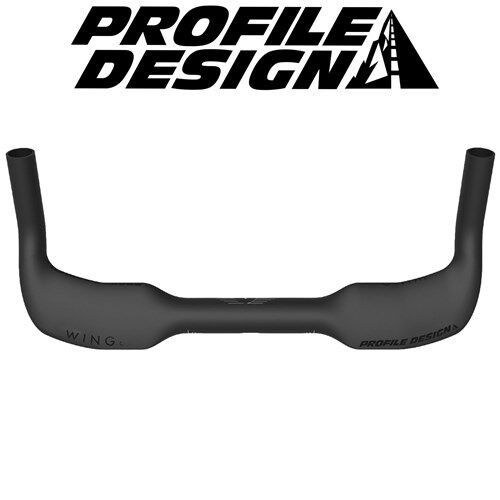

The WINGc (WING/C) uses Profile Design's carbon basebar shaping, optimised for aerodynamics, strength and stiffness, and adds an upturned hand grip for more control. This is the 42 cm width.
Highlights
- Upturned hand grip for rider control
- Truncated aerofoil shape
- Smoother wing-to-grip transition
- 41.6 mm stack
- Carbon, 31.8 mm clamp, Di2 compatible
Shape
The truncated aerofoil is the key to the bar's balance of aerodynamics, strength and comfort. The wing flows into the grip more smoothly for airflow and a better place to rest your hands. Carbon bars come with cable hole plugs.
Compatibility & fit
Clamps a 31.8 mm stem; Profile Design says it can be used with any Profile Design clip-on aerobar, brake lever and stem option. The basebar manual lists the Sonic, Supersonic, Subsonic, Neosonic and Hypersonic brackets, other Profile Design clip-ons with a 31.8 mm basebar clamp, and the Aerobar Bracket Riser Kit (15–70 mm). Only internally routed brake levers fit. Torque: stem clamp 6 Nm, aerobar bracket clamp 6 Nm; overtightening either clamp can crack the bar.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 42 cm centre to centre, 100 mm clamp width
- Upturned grips, 41.6 mm stack
- Truncated aerofoil shape
- Internally routed brake levers only, Di2 compatible
- Carbon, matte black, cable hole plugs included
| Width | 42 cm (centre to centre) |
|---|---|
| Centre clamp diameter | 31.8 mm |
| Clamp width | 100 mm |
| Material | Carbon |
| Finish | Matte black |
| Stack | 41.6 mm |
| Pursuit OD / ID | 24 / 19.8 mm |
| Brake levers | Internally routed only |
| Di2 | Compatible |
| Weight | 190–200 g (brand-listed range) |
| Torque | Stem clamp 6 Nm, aerobar clamp 6 Nm |
| SKU | BCP-RHWC421 |
| Model # | RHWC421 |
| Barcode # | 0723660010232 |
| Brand | Profile Design |
| Shipping Weight | 0.3500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
