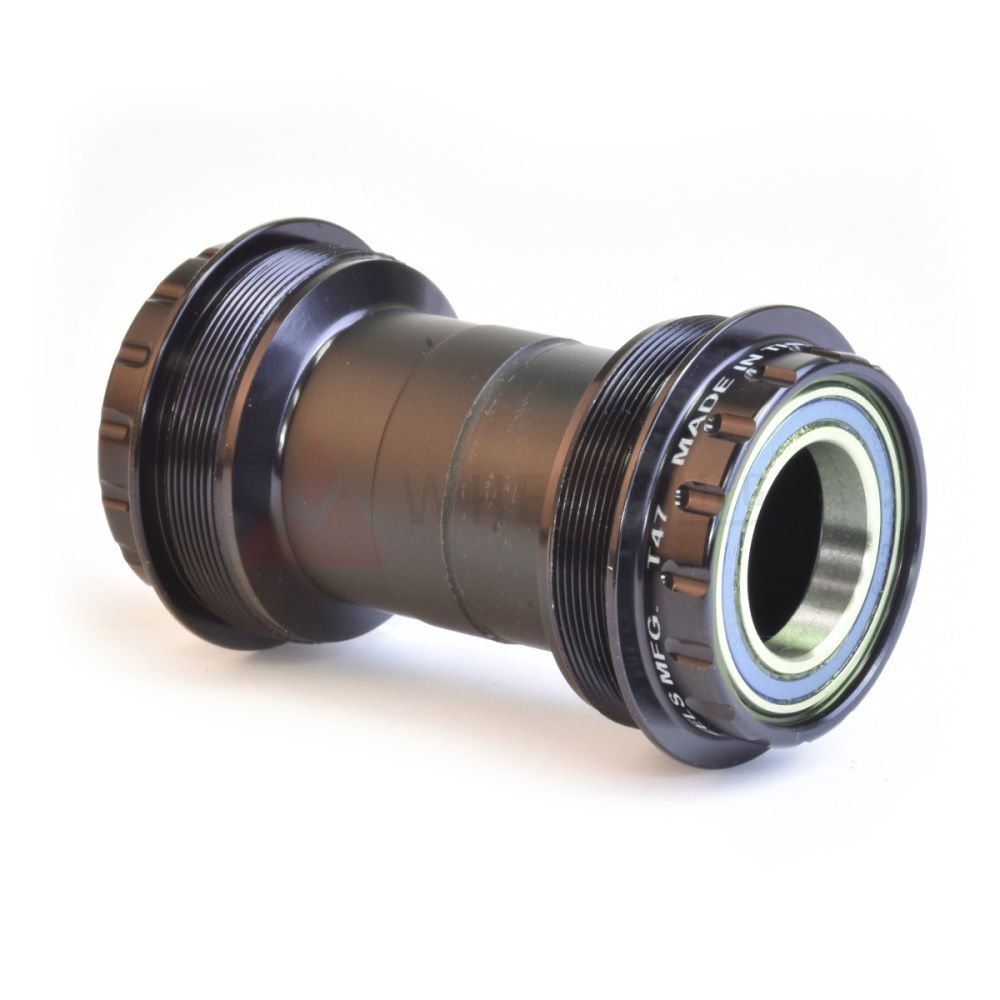

A T47 threaded bottom bracket with outboard Enduro ABEC-3 bearings, built for a SRAM GXP 22/24mm crank spindle.

Highlights

  • Machined aluminium cups thread directly into a T47 bottom bracket shell
  • Enduro ABEC-3 outboard bearings, easily serviced or replaced
  • Fits shells from 68mm to 100mm wide
  • Includes a sleeve between the cups to keep out dirt and protect internal cables and hoses
  • Comes with the seals, spacers and wave washer needed for a correct fit

What's included

BB cups with bearings, two silicone dust seals, two 0.5mm crank spindle spacers, two 1.0mm crank spindle spacers and one 24mm I.D. wave washer.

Threading and installation

Like standard BSA threaded cups, the drive side cup is left-hand thread and the non-drive side is right-hand thread. Use a quality grease on steel or aluminium shells, and an anti-seize compound on titanium shells.

Fitting

Tune's workshop can fit this bottom bracket for you — the right cup tool and torque setting matter, especially on a press-fit or T47 shell.

Compatibility & fit

Fits T47 threaded frames with shell widths from 68mm to 100mm, and SRAM/Truvativ GXP 22/24mm diameter crank spindles.

Wheels Manufacturing backs this bottom bracket with a 1 year warranty against manufacturing defects, plus 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Machined aluminium cups thread directly into a T47 bottom bracket shell
  • Enduro ABEC-3 outboard bearings, easily serviced or replaced
  • Fits shells from 68mm to 100mm wide
  • Includes a sleeve between the cups to keep out dirt and protect internal cables and hoses
  • Comes with the seals, spacers and wave washer needed for a correct fit
Frame interfaceT47 threaded
Shell width range68mm to 100mm
Shell I.D.47 x 1.0mm
Crank spindle typeSRAM/Truvativ GXP
Crank spindle diameter22/24mm
BearingsEnduro ABEC-3, outboard
Over bearing width91.2mm in a 68mm wide shell
Tool pattern44mm x 16-notch
SKU SCV-WMBB-T47-OUT-SRAM-BB
Brand Wheels MFG
