T47 threaded cups with internal bearings for a 29mm SRAM DUB crank, built to thread directly into a T47 shell across a wide range of widths.

Highlights

  • Machined aluminium cups thread directly into a T47 shell
  • Internal bearings, easily serviced or replaced
  • Includes a centre sleeve to protect internal cabling from the spindle
  • Fits shell widths from 68mm to 132mm

Threading and installation

Like standard BSA cups, the drive-side cup is left-hand threaded and the non-drive side is right-hand threaded. Wheels Manufacturing recommends a quality grease for steel or aluminium shells, and an anti-seize compound for titanium shells.

Sizes & options

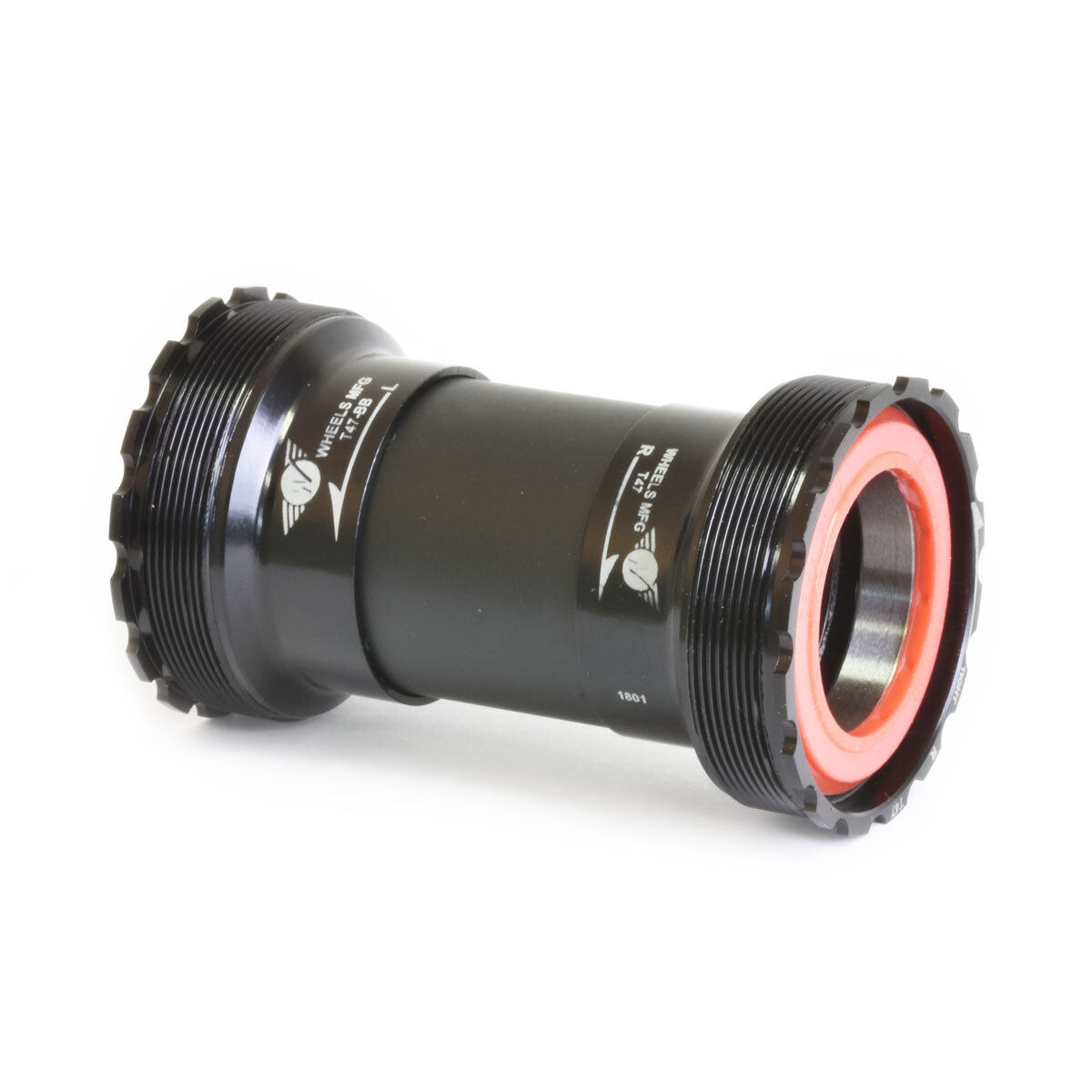

BlackStandard black anodised finish

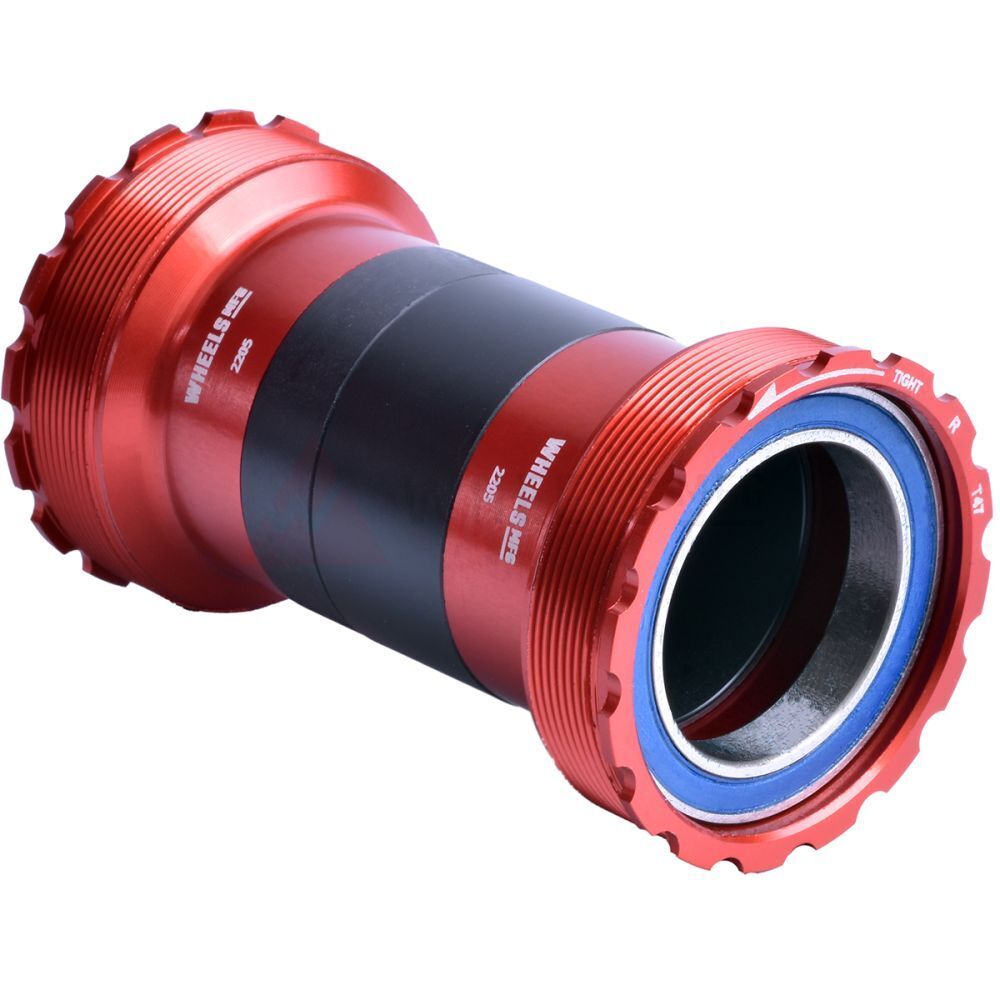

RedRed anodised finish

Compatibility & fit

Fits T47 threaded shells, 86-121mm wide (rated to 132mm for the cups), 47 x 1.0mm threaded shell ID. For 29mm SRAM DUB spindle cranks. Includes silicone dust seals and 0.5mm/1.0mm/2.5mm crank spindle spacers.

Wheels Manufacturing bottom brackets and bearings carry a warranty against manufacturing defects (wheelsmfg.com states 1 year warranty, 30-day returns on its products).

For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.

  • Thread-together T47 cups with internal bearings
  • Enduro ABEC-3 bearings
  • Fits 68-132mm wide T47 shells
  • Includes dust seals and spindle spacers
Frame interfaceT47 threaded
Shell width86mm - 121mm
Shell ID47 x 1.0mm threaded
Spindle fit29mm SRAM DUB
Tool pattern48.5mm x 16-notch
SKU SCV-P-10764
Brand Wheels MFG
