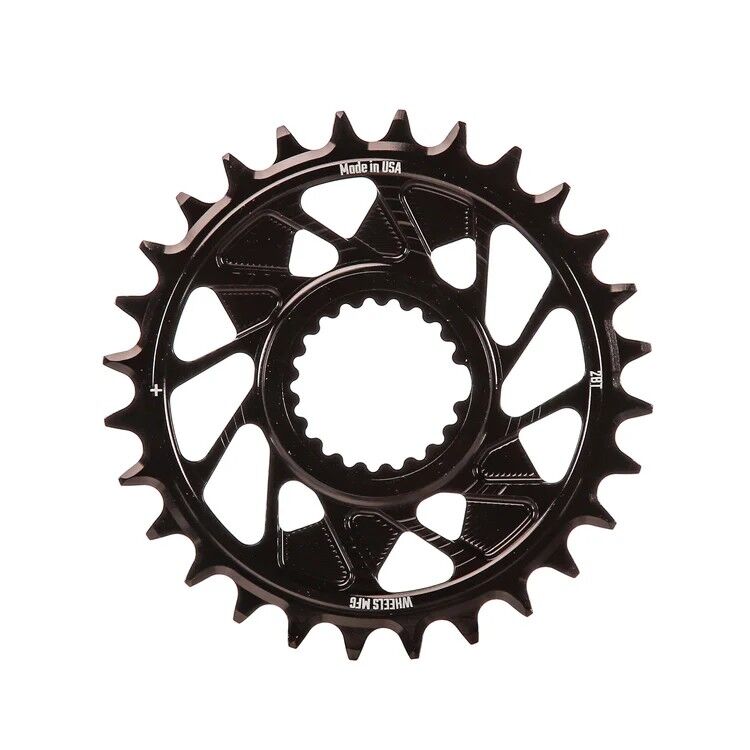

A Shimano Direct Mount chainring built for 1× MTB drivetrains, machined from 7075 aluminium with a Hyperglide+ (HG+) tooth profile that keeps a Shimano 12-speed chain tracking cleanly under load.

Highlights

  • Shimano Direct Mount fitting
  • Hyperglide+ (HG+) tooth profile for Shimano HG+ and 12-speed KMC chains
  • CNC-machined 7075 aluminium, made in the USA
  • 1.5mm offset, available as inboard (52mm chainline) or outboard (55mm chainline)
  • Seven anodised colour options

Fitting the right offset

Wheels Manufacturing publishes the 1.5mm inboard version for a 52mm chainline and the 1.5mm outboard version for a 55mm chainline, the spacing used on newer full-wireless Shimano and current SRAM Transmission-equipped cranksets. Check your crank's chainline before ordering.

Sizes & options

Tooth countOffset
28T1.5mm outboard (55mm chainline)
30T1.5mm inboard (52mm chainline)
32T1.5mm inboard (52mm chainline)
34T1.5mm inboard (52mm chainline)

Compatibility & fit

Fits Shimano Direct Mount cranksets only. Install to the crank manufacturer's torque specification and confirm chainline before fitting. The Tune workshop can fit and check chainline as part of a drivetrain service.

Wheels Manufacturing backs this chainring with a 1-year warranty against manufacturing defects from the original date of purchase; normal wear, chain wear transferred to the ring and crash damage aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Shimano Direct Mount fitting
  • Hyperglide+ (HG+) tooth profile
  • 7075 aluminium, CNC-machined in the USA
  • 1.5mm offset, inboard or outboard
  • Seven anodised colours
MountShimano Direct Mount
Tooth profileHyperglide+ (HG+)
Material7075 aluminium
Offset1.5mm (inboard = 52mm chainline, outboard = 55mm chainline)
Compatible chainsShimano HG+ chain, 12-speed KMC chain
Sizes & offset28T outboard; 30T, 32T, 34T inboard
SKU SCV-P-12547
Brand Wheels MFG
