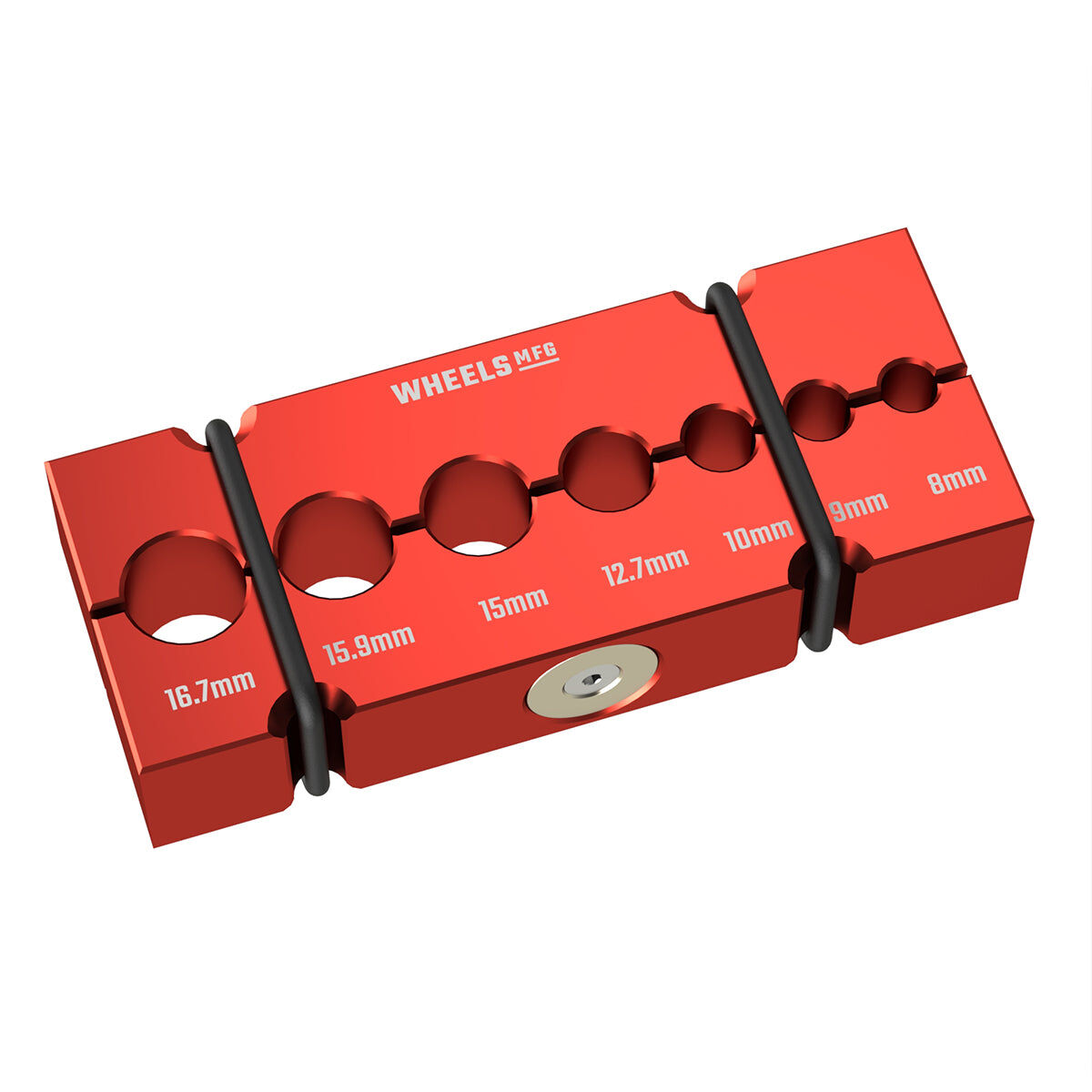

Clamping a round shock shaft directly in a vice risks marking or bending it. Wheels Manufacturing's shaft clamps cradle the shaft in a matched semi-circular cut and use magnet inserts to stay put in the vice jaws while you work.

Highlights

  • Precision machined, anodized aluminium
  • Magnet inserts hold the clamps in place against vice jaws
  • Sold as one matched pair per size set
  • Three size sets cover shaft diameters from 8mm to 28.6mm

Sizes & options

Option valueShaft diameters covered
Small8mm, 9mm, 10mm, 12.7mm, 15mm, 15.9mm, 16.7mm
Medium17.5mm, 18.7mm, 19.5mm, 21mm, 22.2mm
Large23.8mm, 25.4mm, 28.6mm

Compatibility & fit

Choose the size set that covers the round shaft diameter on the shock or suspension component being serviced. Each set comes as one pair of clamps sized for multiple common shaft diameters.

Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the date of purchase, and accepts returns of unused, unopened stock within 30 days of purchase. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Wheels Manufacturing’s Australian distributor.

  • Precision machined, anodized aluminium
  • Magnet inserts keep the clamps seated in a vice
  • Three sizes cover 8mm to 28.6mm shaft diameters
  • Sold as a matched pair
TypeRound shaft clamp, for vice-mounted suspension service
MaterialPrecision machined, anodized aluminium
RetentionMagnet inserts
Sold as1 pair per size set
Option valueSmall (8–16.7mm), Medium (17.5–22.2mm), Large (23.8–28.6mm)
SKU SCV-P-10942
Brand Wheels MFG
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
