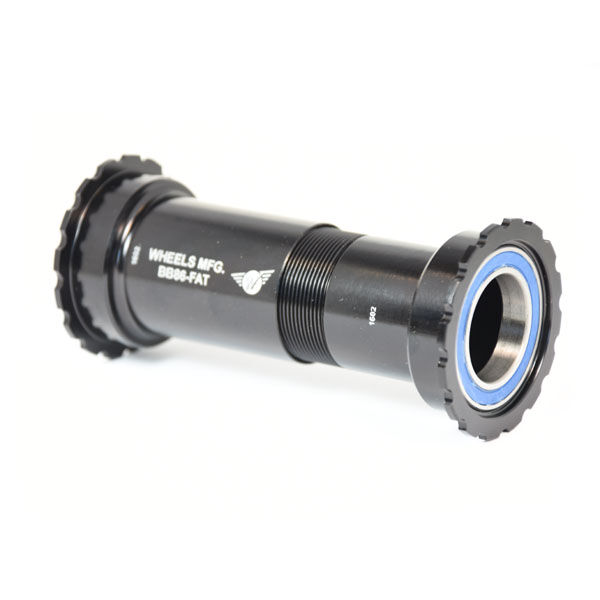

A press-fit 41mm bottom bracket for fat bike frames running a SRAM/Truvativ GXP crank spindle, with ABEC-3 bearings and cups that thread together for a stable, creak-free fit.

Highlights

  • Press-fit 41mm (PF41) bottom bracket for fat bike frames
  • ABEC-3 bearings; machined cups thread together for stability and increased bearing life
  • Simple installation and maintenance, with fast bearing replacement
  • For SRAM/Truvativ GXP 22/24mm crank spindles

Tool needed

Use only bottom bracket tools compatible with 16-notch MegaEvo bottom brackets, such as the FSA MegaEvo tool or Park Tool BBT-29.

Fitting

Tune's workshop can fit this bottom bracket for you — the right cup tool and torque setting matter, especially on a press-fit or T47 shell.

Compatibility & fit

Requires a fat bike frame with a 41mm inner diameter bottom bracket shell, in either 121mm or 132mm width, and a SRAM/Truvativ GXP 22/24mm crank spindle.

Wheels Manufacturing backs this bottom bracket with a 1 year warranty against manufacturing defects, plus 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Press-fit 41mm (PF41) bottom bracket for fat bike frames
  • ABEC-3 bearings; machined cups thread together for stability and increased bearing life
  • Simple installation and maintenance, with fast bearing replacement
  • For SRAM/Truvativ GXP 22/24mm crank spindles
Frame interfacePF41 press-fit, 41mm shell I.D.
Shell width121mm or 132mm
Crank spindle typeSRAM/Truvativ GXP
Crank spindle diameter22/24mm
BearingsABEC-3
Tool pattern16-notch MegaEvo (FSA MegaEvo / Park Tool BBT-29)
SKU SCV-WMBB-BB86-FAT-SRAM7
Brand Wheels MFG
