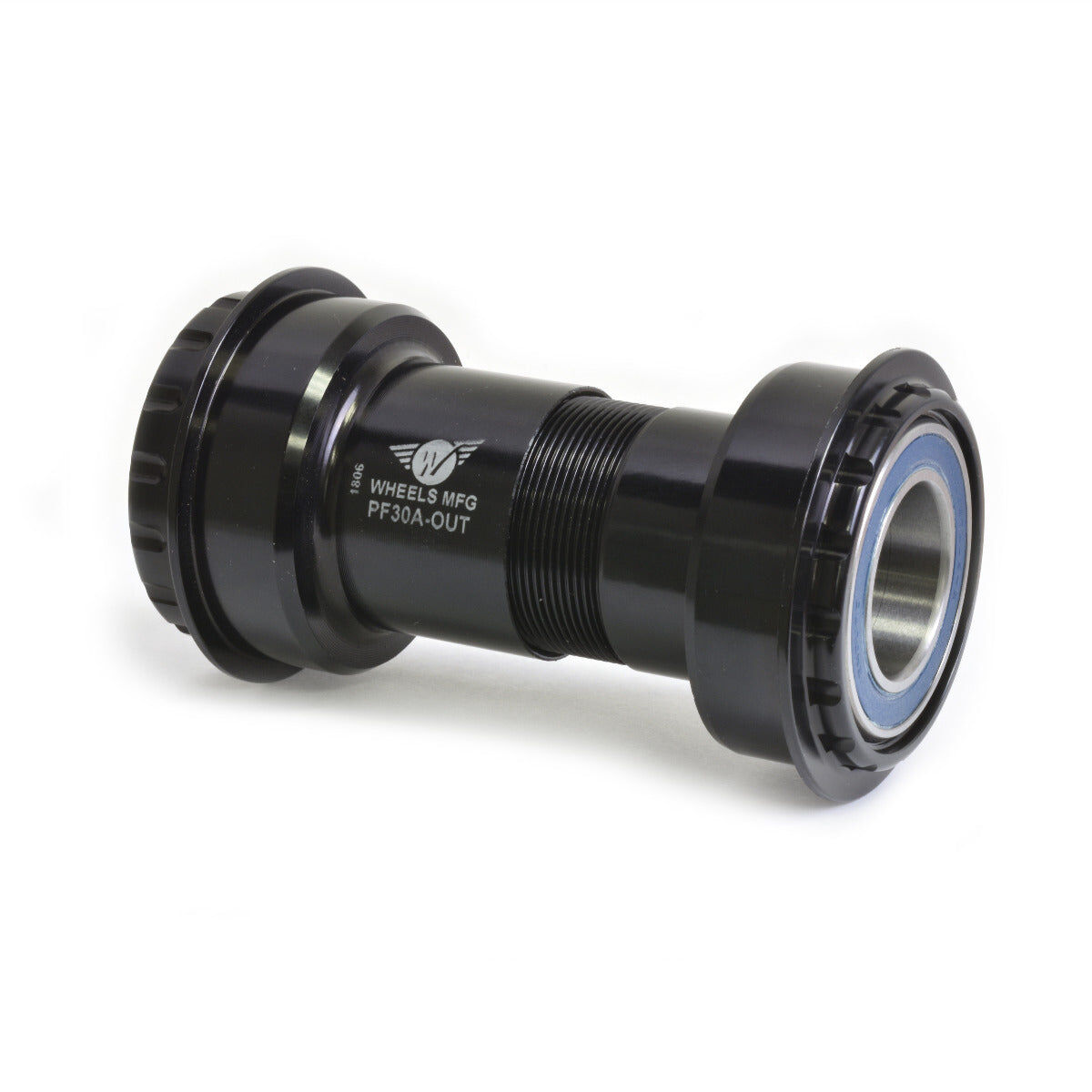

This Wheels Manufacturing bottom bracket fits 22/24mm SRAM and Truvativ GXP spindle cranks into Cannondale's asymmetrical PF30A frame shell without adapters.

Highlights

  • Two machined aluminium cups thread together, keeping the bottom bracket stable in the frame
  • Increases bearing life and simplifies maintenance - no more creaking, smoother operation, quick bearing replacement
  • 44mm, 16-notch tool pattern

Compatibility & fit

Specifically designed for Cannondale PF30A frames (46mm bottom bracket shell inner diameter, 73mm wide asymmetrical shell), for 22/24mm SRAM/Truvativ GXP spindle cranks.

Wheels Manufacturing backs this bottom bracket with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. Wear items such as bearings, seals and spacers aren't covered under the defect warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Threaded, self-mating aluminium cups
  • Fits SRAM/Truvativ GXP 22/24mm cranks
  • Built for Cannondale's asymmetrical PF30A shell
  • 44mm, 16-notch tool pattern
Bottom bracket/frame interfaceCannondale PF30A
Bottom bracket shell width73mm (asymmetrical)
Bottom bracket shell ID46mm
Crank spindle22/24mm (SRAM/Truvativ GXP)
Tool pattern44mm x 16-notch
SKU SCV-WMBB-PF30A-OUT-SRAM
Brand Wheels MFG
