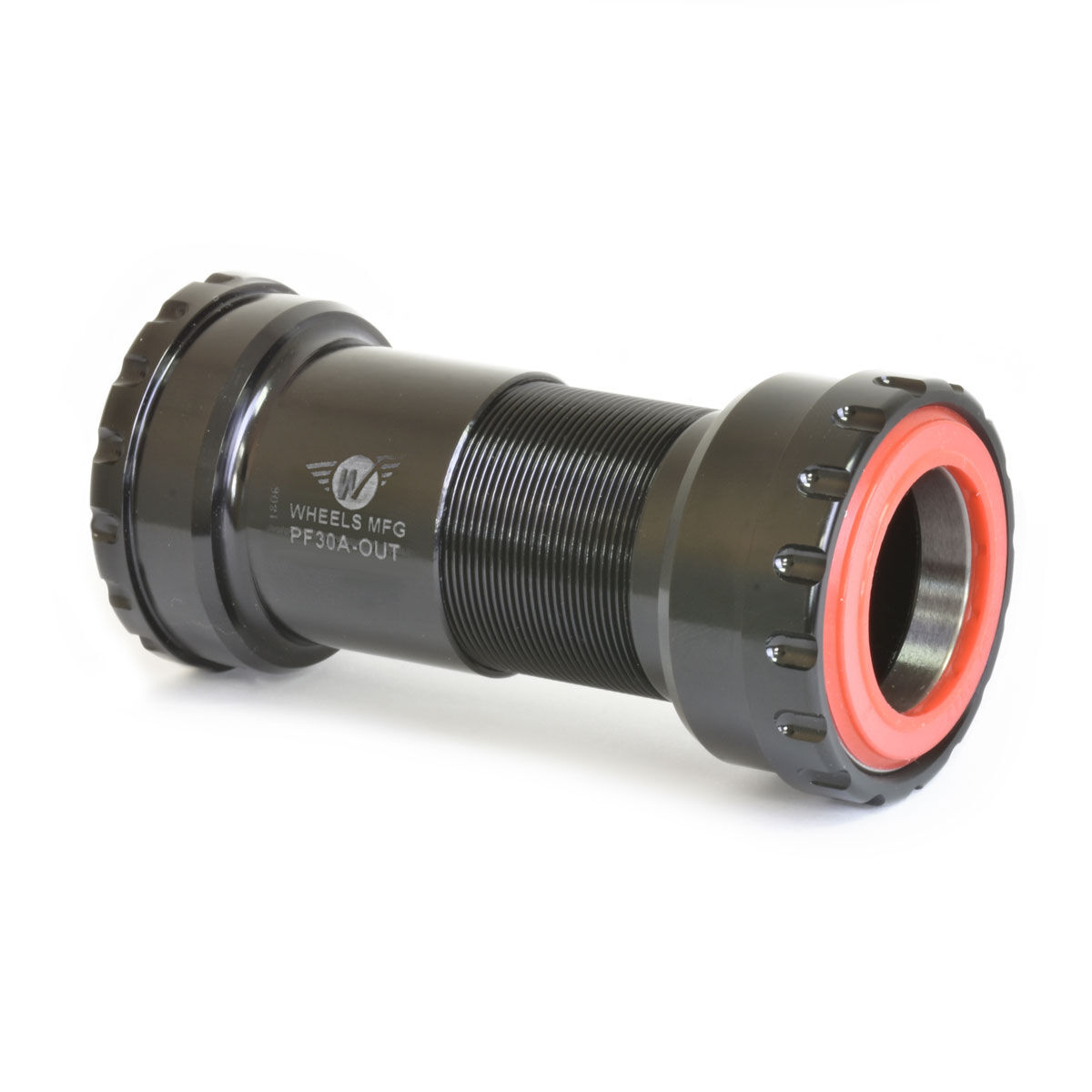

This Wheels Manufacturing bottom bracket fits SRAM DUB-compatible 29mm spindle cranks into Cannondale's asymmetrical PF30A frame shell with outboard bearings.

Highlights

  • Two machined aluminium cups thread together, keeping the bottom bracket stable in the frame
  • Increases bearing life and simplifies maintenance - no more creaking, smoother operation, quick bearing replacement
  • Includes BB cups with bearings, 2 silicone dust seals, 2 x 0.5mm and 2 x 1.0mm crank spindle spacers, and 1 x 2.5mm spindle spacer

Compatibility & fit

Specifically designed for Cannondale PF30A frames (46mm bottom bracket shell inner diameter, 73mm wide asymmetrical shell), for SRAM DUB-compatible cranks.

Wheels Manufacturing backs this bottom bracket with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. Wear items such as bearings, seals and spacers aren't covered under the defect warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Threaded, self-mating aluminium cups
  • Fits SRAM DUB-compatible 29mm cranks
  • Built for Cannondale's asymmetrical PF30A shell
  • Dust seals and spindle spacer set included
Bottom bracket/frame interfaceCannondale PF30A
Bottom bracket shell width73mm (asymmetrical)
Bottom bracket shell ID46mm
Crank spindle29mm (SRAM DUB)
IncludedBB cups with bearings, 2 dust seals, 2x 0.5mm + 2x 1.0mm + 1x 2.5mm spindle spacers
SKU SCV-WMBB-PF30A-OUT-29MM
Brand Wheels MFG
