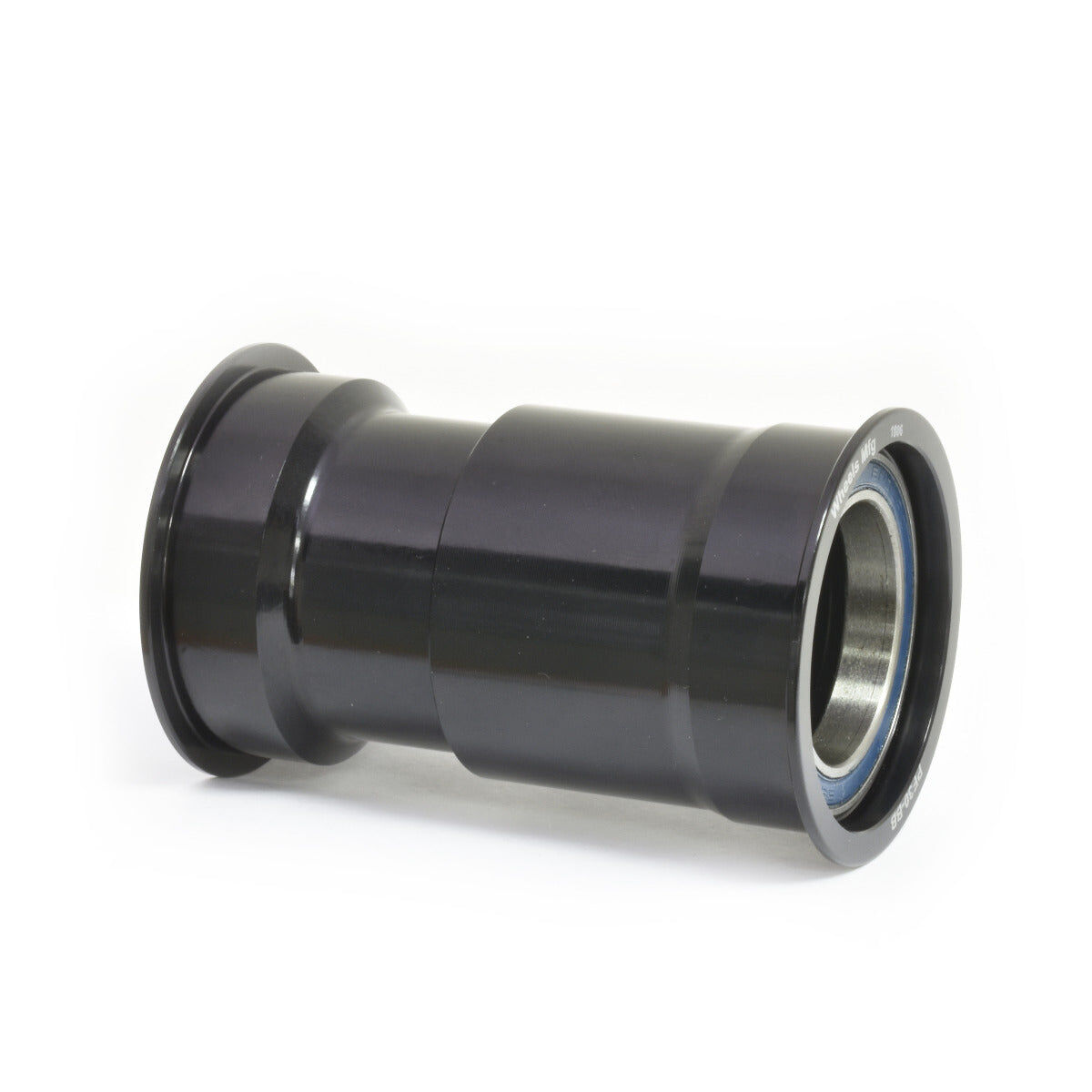

An economical, reliable press-fit bottom bracket for PF30-specific frames, with machined aluminium cups and sealed bearings that back up to a wide range of shell widths.

Highlights

  • Machined aluminium cups with 6806 (30mm I.D.) Enduro ABEC-3 sealed bearings
  • Exterior seal system keeps contamination out
  • Adaptable across 61mm to 86.5mm shell widths
  • Accepts current 30mm spindle cranksets, or 24mm cranksets with a Wheels Manufacturing adapter shim (sold separately)

Fitting

Tune's workshop can fit this bottom bracket for you — the right cup tool and torque setting matter, especially on a press-fit or T47 shell.

Compatibility & fit

Fits PF30-specific frames with a 46mm inner diameter shell (including PF30, BB386EVO, Specialized Carbon OSBB and BBRight press-fit interfaces), across 61mm to 86.5mm shell widths. Takes 30mm spindle cranksets directly, or 24mm cranksets with an adapter shim.

Wheels Manufacturing backs this bottom bracket with a 1 year warranty against manufacturing defects, plus 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Machined aluminium cups with 6806 (30mm I.D.) Enduro ABEC-3 sealed bearings
  • Exterior seal system keeps contamination out
  • Adaptable across 61mm to 86.5mm shell widths
  • Accepts current 30mm spindle cranksets, or 24mm cranksets with a Wheels Manufacturing adapter shim (sold separately)
Frame interfacePF30, BB386EVO, Specialized Carbon OSBB, BBRight press-fit
Shell I.D.46mm
Shell width range61mm to 86.5mm
Crank spindle diameter30mm (24mm with adapter shim)
Bearings6806, Enduro ABEC-3
SKU SCV-WMBB-PF30-BB
Brand Wheels MFG
