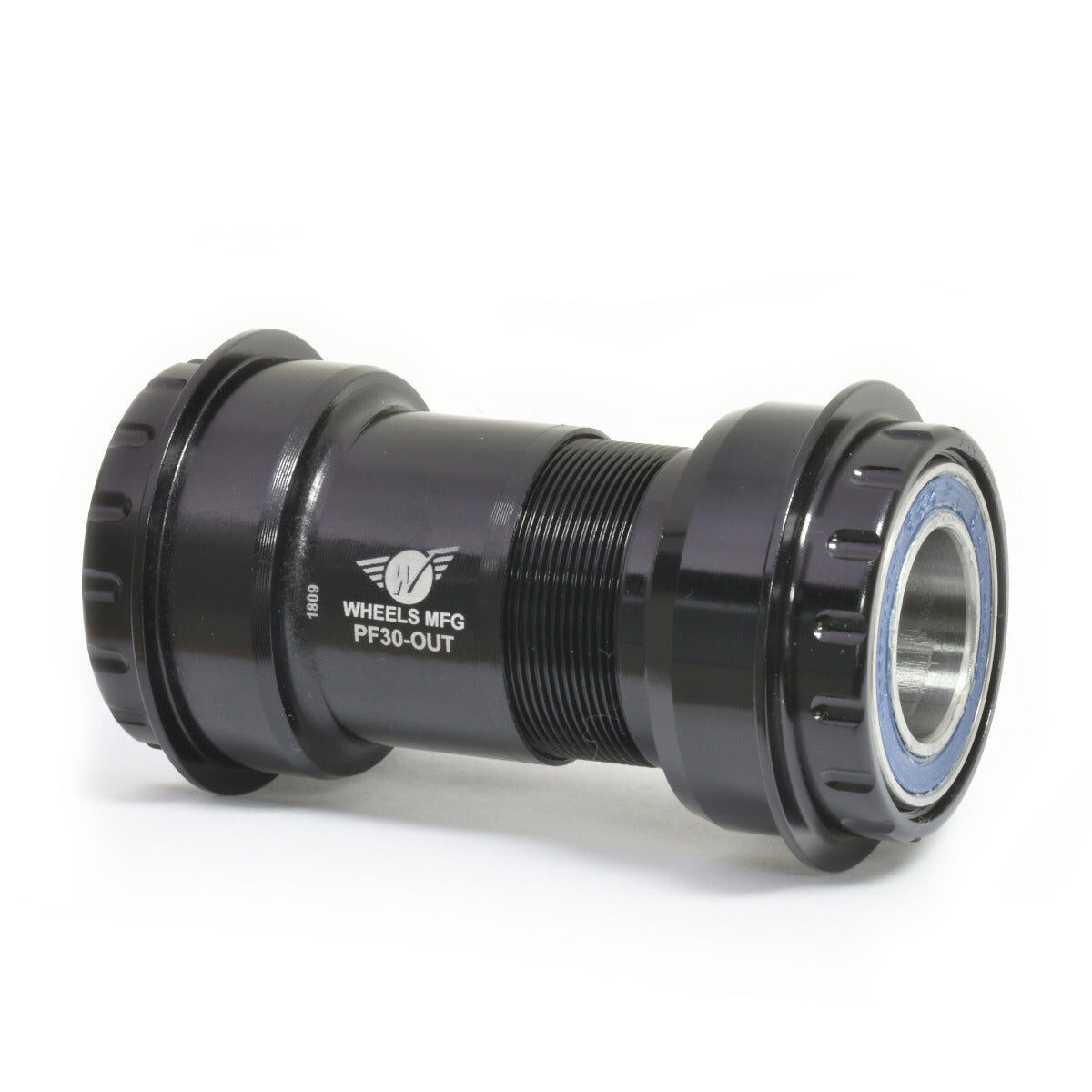

This Wheels Manufacturing bottom bracket converts a PF30 frame shell to outboard bearings, letting you run 24/22mm SRAM and Truvativ cranks without a separate adapter.

Highlights

  • Enduro ABEC 3 sealed bearings
  • Dual silicone seals keep contamination out for longer bearing life
  • Black anodised, machined aluminium cups
  • Made in the USA
  • Weighs 153g

Fits SRAM and Truvativ 24/22mm cranks

Built for current 24/22mm SRAM and Truvativ crank spindles. Wheels Manufacturing also lists an angular contact version of this bottom bracket - check which bearing type your build needs.

Compatibility & fit

Fits PF30 frame shells 68-73mm wide with a 46mm bottom bracket shell inner diameter.

Wheels Manufacturing backs this bottom bracket with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. Wear items such as bearings, seals and spacers aren't covered under the defect warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Enduro ABEC 3 sealed bearings
  • Dual silicone seals
  • Black anodised machined aluminium cups
  • Fits 24/22mm SRAM/Truvativ cranks
  • Made in the USA
Bottom bracket shell width68-73mm (PF30)
Bottom bracket shell ID46mm
Crank spindle24/22mm (SRAM, Truvativ)
BearingsEnduro ABEC 3
FinishBlack anodised aluminium
Weight153g
SKU SCV-WMBB-PF30-OUT-7
Brand Wheels MFG
