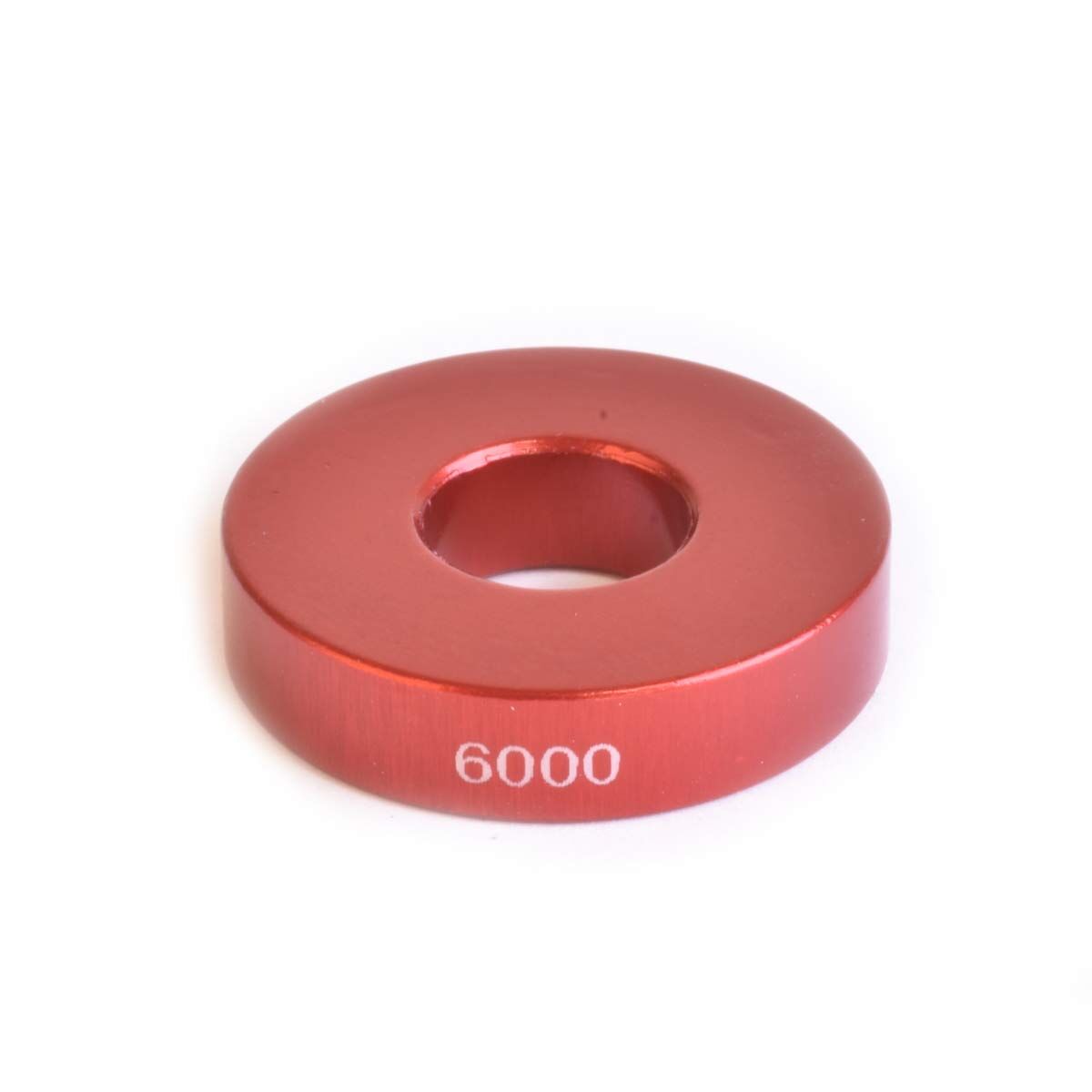

Wheels MFG Over Axle Bearing Drift – 6000 X 6mm
SKU code: SCV-WMTL-6000OA-6
Some hub and suspension pivot bearings sit over the axle rather than beside it, which an open bore drift can't reach. An over axle adapter slides over the axle first so the press load still lands squarely on the bearing.
Highlights
- Slides over the axle so the bearing can be pressed home from outside it
- Covers common 6000–6904 series bearings, sized by outer diameter and thickness
- Often used together with speed spacers to clear the end of the axle
- Machined, red anodized aluminium
- Sold individually — some installations need more than one adapter
How it works
An over axle adapter is necessary when the bearing slides over the axle before it's pressed into the hub shell or suspension component. Additional speed spacers are often needed alongside it to clear the end of the axle and give the press enough travel to fully seat the bearing.
Sizes & options
| Option value | Installs / dimensions |
|---|---|
| 6000 X 6mm | 6000 bearing; OD 25.8mm, thickness 6mm, thru hole 10.2mm |
| 6001 X 7mm | 6001 bearing; OD 27.8mm, thickness 7mm, thru hole 12.2mm |
| 6002 X 7mm | 6002 bearing; OD 31.8mm, thickness 7mm, thru hole 15.2mm |
| 6003 X 7mm | 6003 bearing; OD 34.8mm, thickness 7mm, thru hole 17.2mm |
| 6802 | 6802 bearing [dimensions not given in source — flagged] |
| 6803 X 20mm | 6803 bearing; OD 25.8mm, thickness 20mm, thru hole 17.2mm |
| 6804 X 20mm | 6804 bearing; OD 31.8mm, thickness 20mm, thru hole 20.2mm |
| 6900 X 40mm | 6900 bearing; OD 21.8mm, thickness 40mm, thru hole 10.2mm |
| 6901 | 6901 bearing; OD 23.8mm, thickness 17mm, thru hole 12.2mm |
| 6901 X 40mm | 6901 bearing; OD 23.8mm, thickness 40mm, thru hole 12.2mm |
| 6902 | 6902 bearing [dimensions not given in source — flagged] |
| 6903 X7mm | 6903 bearing; OD 29.8mm, thickness 7mm, thru hole 17.2mm |
| 6904 X 7mm | 6904 bearing; OD 37.8mm, thickness 7mm, thru hole 20.2mm |
Compatibility & fit
Match the option value's bearing number to the sealed bearing being installed. Compatible with the Wheels Manufacturing PRESS-1 or PRESS-4 handles. The 6802 and 6902 option values ship with thin SCV source copy that doesn't state a bearing OD or thickness — treat those two as unverified and check wheelsmfg.com before publishing a full spec for them.
Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the date of purchase, and accepts returns of unused, unopened stock within 30 days of purchase. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Wheels Manufacturing’s Australian distributor.
- Slides over the axle to press over-axle hub and pivot bearings
- 13 sizes covering the common 6000–6904 bearing range
- Often paired with speed spacers for axle clearance
- Machined, red anodized aluminium
| Type | Over axle bearing drift |
|---|---|
| Material | Machined, red anodized aluminium |
| Compatible press | PRESS-1 or PRESS-4 handles |
| Option value | See Sizes & options above — 13 bearing-specific sizes |
| SKU | SCV-P-5196 |
| Brand | Wheels MFG |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.080m |
| Shipping Length | 0.300m |
