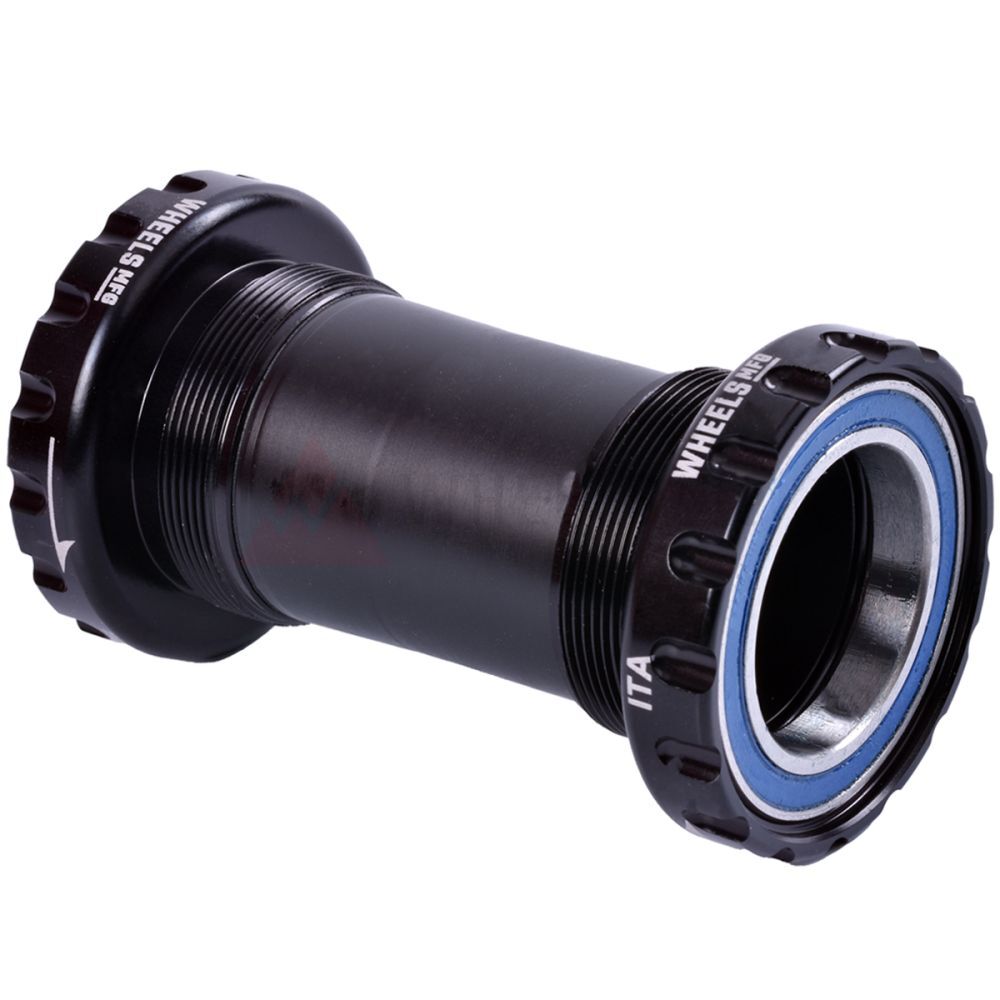

A bottom bracket built to the Italian threaded standard, letting an Italian-thread frame run a 29mm SRAM DUB spindle crank.

Highlights

  • Right-hand thread on both sides, 36mm x 24 TPI
  • Machined aluminium cups thread into a standard Italian threaded frame
  • ABEC-3 sealed bearings outboard of the shell
  • Fully serviceable

Compatibility & fit

Fits frames with Italian standard threaded bottom bracket shells (36mm x 24 TPI, right-hand thread both sides), for SRAM DUB 29mm spindle cranks.

Wheels Manufacturing bottom brackets and bearings carry a warranty against manufacturing defects (wheelsmfg.com states 1 year warranty, 30-day returns on its products).

For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.

  • Italian thread, 36mm x 24 TPI, right-hand both sides
  • ABEC-3 sealed bearings
  • Includes silicone dust seals and crank spindle spacers
  • Fully serviceable
Thread standardItalian, 36mm x 24 TPI, RH both sides
Spindle fit29mm SRAM DUB
Bearing gradeABEC-3
Includes2x dust seals, 0.5/1.0/2.5mm spindle spacers
SKU SCV-WMBB-ITA-29MM
Brand Wheels MFG
Shipping Weight 0.2200kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
