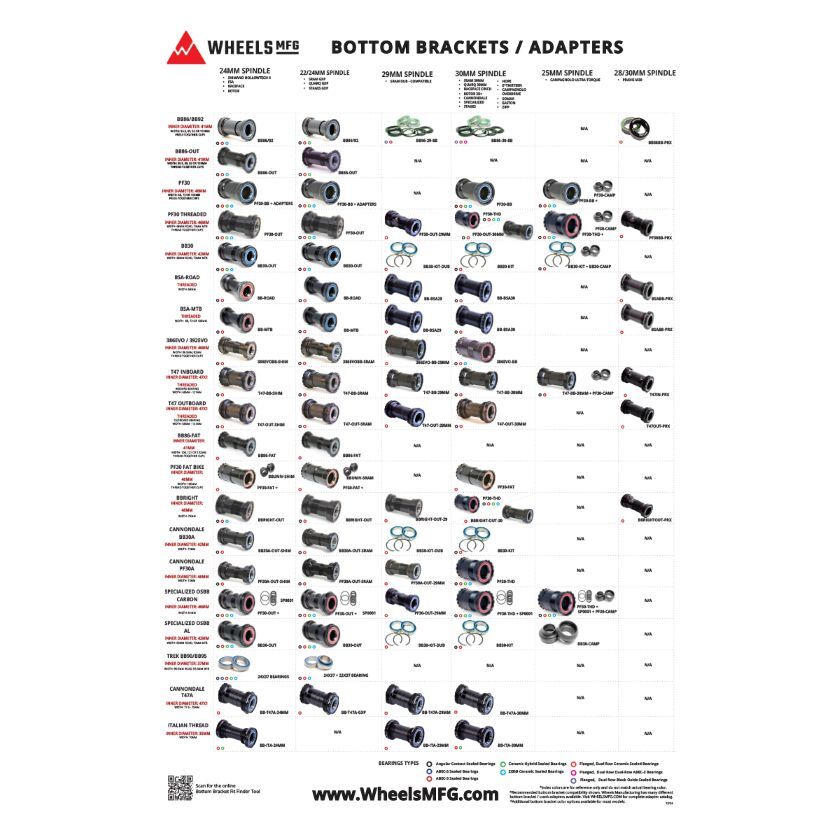

This wall chart lays out the most popular bottom bracket standards and cranksets in one reference, to help identify what a bike needs.

Highlights

  • 24 in wide x 36 in high
  • Printed on one side only

Compatibility & fit

A workshop reference chart, not a fit-specific part.

Wheels Manufacturing backs this tool with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • 24 in x 36 in wall chart
  • Covers popular BB standards and cranksets
  • Printed one side only
Size24 in x 36 in
PrintOne side only
SKU SCV-WMTL-BR-5
Brand Wheels MFG
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
