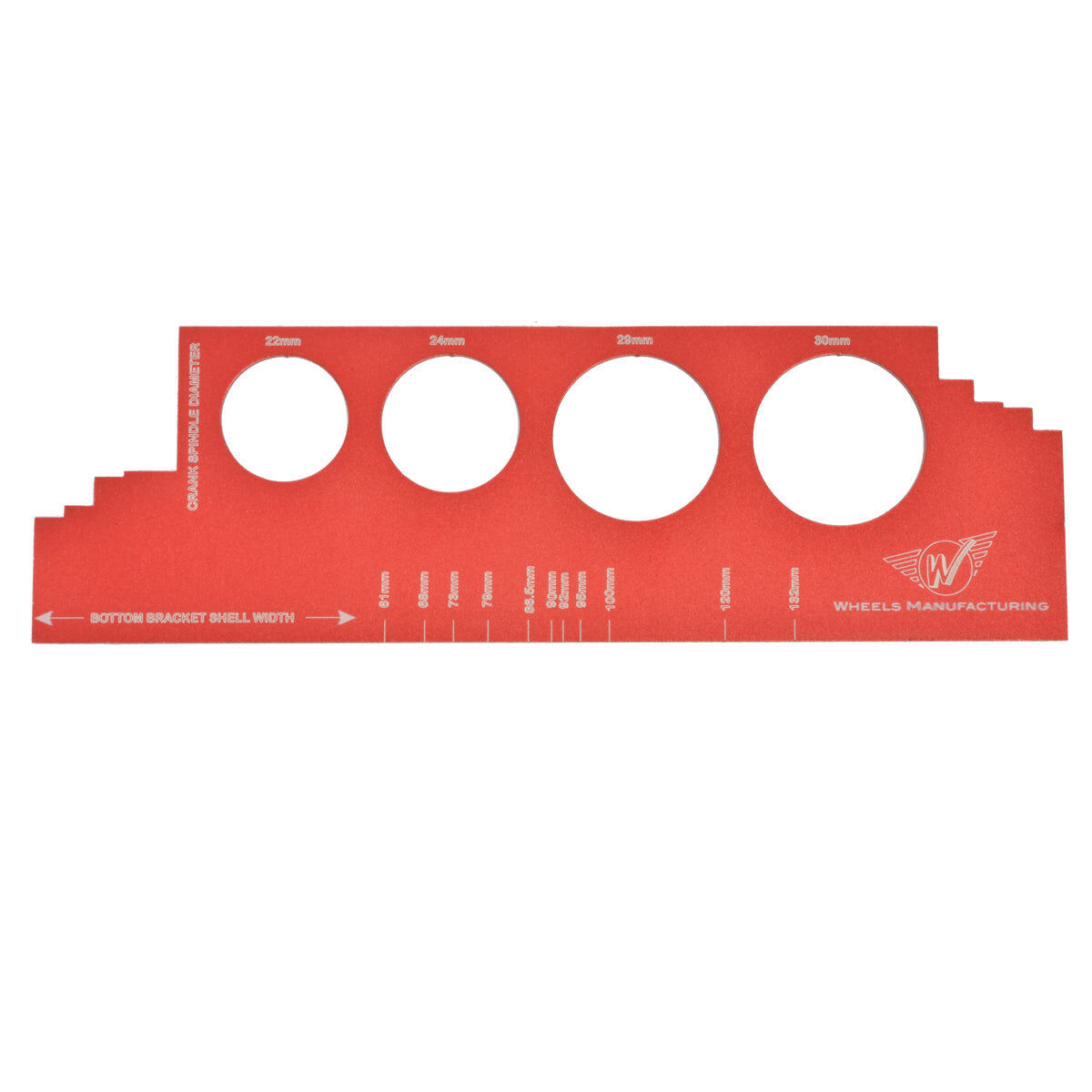

This gauge takes the measurements needed to identify the correct bottom bracket for a given frame and crankset.

Highlights

  • Measures bottom bracket shell width, shell inner diameter, crank spindle length, crank spindle diameter and bearing inner diameter
  • Metric scale along both long edges for shell width and spindle length
  • Durable red anodised aluminium with laser etching
  • Overall size 7 in x 3 in x 0.125 in

Compatibility & fit

A workshop reference tool, not a fit-specific spare part.

Wheels Manufacturing backs this tool with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Measures shell width and inner diameter
  • Measures crank spindle length and diameter
  • Measures bearing inner diameter
  • Red anodised aluminium, laser etched
MeasuresBB shell width, shell ID, crank spindle length/diameter, bearing ID
Size7 in x 3 in x 0.125 in
MaterialRed anodised aluminium
SKU SCV-WMTL-BBGAUGE
Brand Wheels MFG
Shipping Weight 0.4660kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
