A busy workshop bearing press spends most of its travel just closing the gap before the drifts meet the bearing. Wheels Manufacturing's Speed Spacers fill that gap so the T-handles need far fewer turns to do the job.

Highlights

  • Machined aluminium, sold individually
  • Fits over the threaded press rod between the handle and the drift
  • Sizes cover 10mm and 15–17mm thru-hole bores for larger axles
  • Cuts the number of handle turns needed to press a bearing

Sizes & options

Option valueDimensions

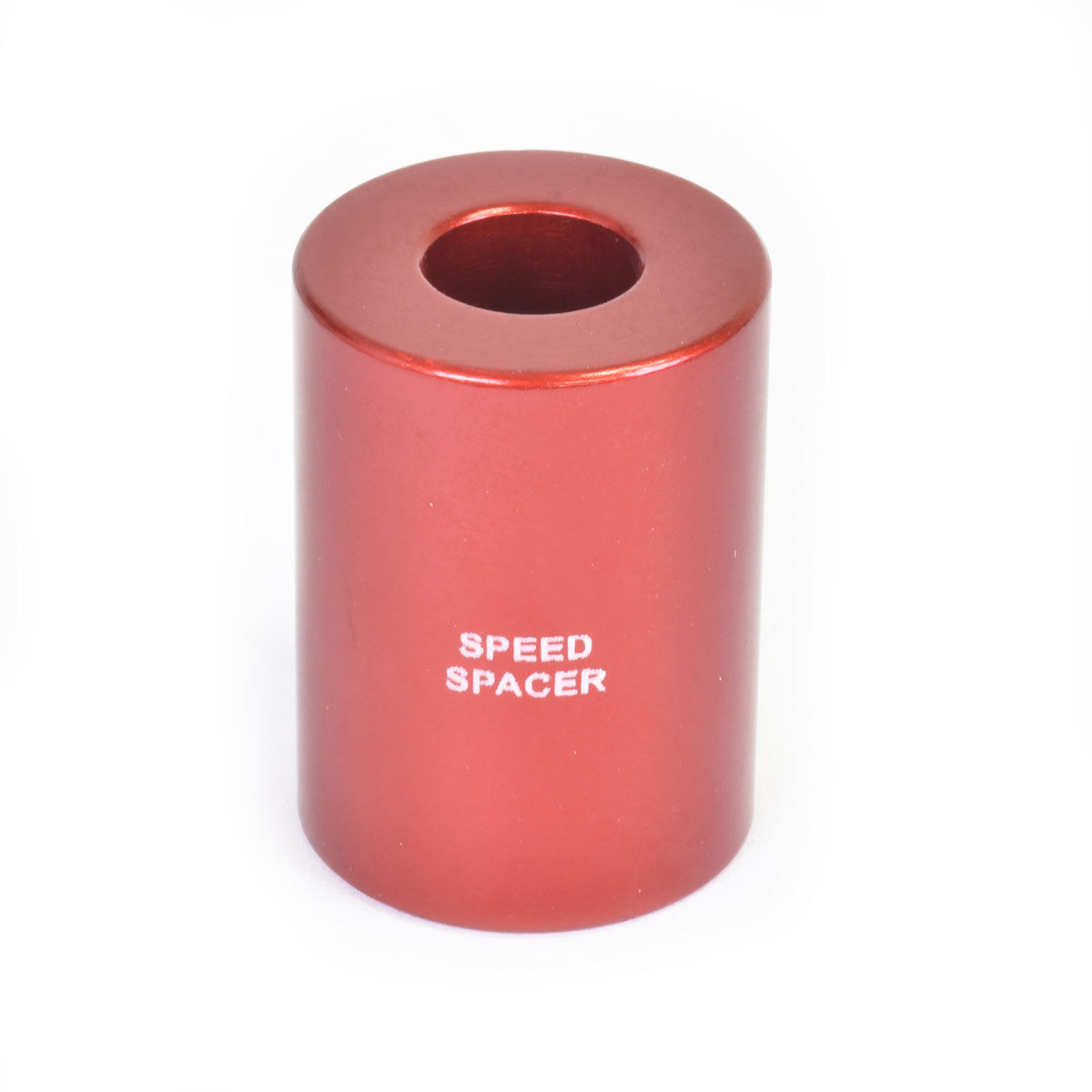

10mmLength 30mm, OD 22mm, ID 10mm, anodized red
15mmLength 25mm, OD 23.8mm, ID 15.1mm
17x25mmLength 25mm, OD 25.8mm, ID 17.1mm
17x35mmLength 35mm, OD 25.8mm, ID 17.1mm — also suits axle-through-bearing press setups

Compatibility & fit

Compatible with the Wheels Manufacturing PRESS-4 (Economy Press), PRESS-1 (Large Sealed Bearing Press) and PRESS-1 Handle & Rod Assembly, per Wheels Manufacturing's own listing. Choose the ID that clears the axle or rod you're pressing over.

Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the date of purchase, and accepts returns of unused, unopened stock within 30 days of purchase. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Wheels Manufacturing’s Australian distributor.

  • Machined aluminium construction
  • Reduces the handle turns needed on a threaded-rod bearing press
  • Four thru-hole sizes for different axle clearances
  • Sold individually
TypeBearing press speed spacer
MaterialMachined aluminium
Compatible pressesPRESS-4, PRESS-1, PRESS-1 Handle & Rod Assembly
Option value10mm, 15mm, 17x25mm, 17x35mm (see Sizes & options above)
Sold asIndividually
SKU SCV-P-5197
Brand Wheels MFG
Shipping Weight 0.0800kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
