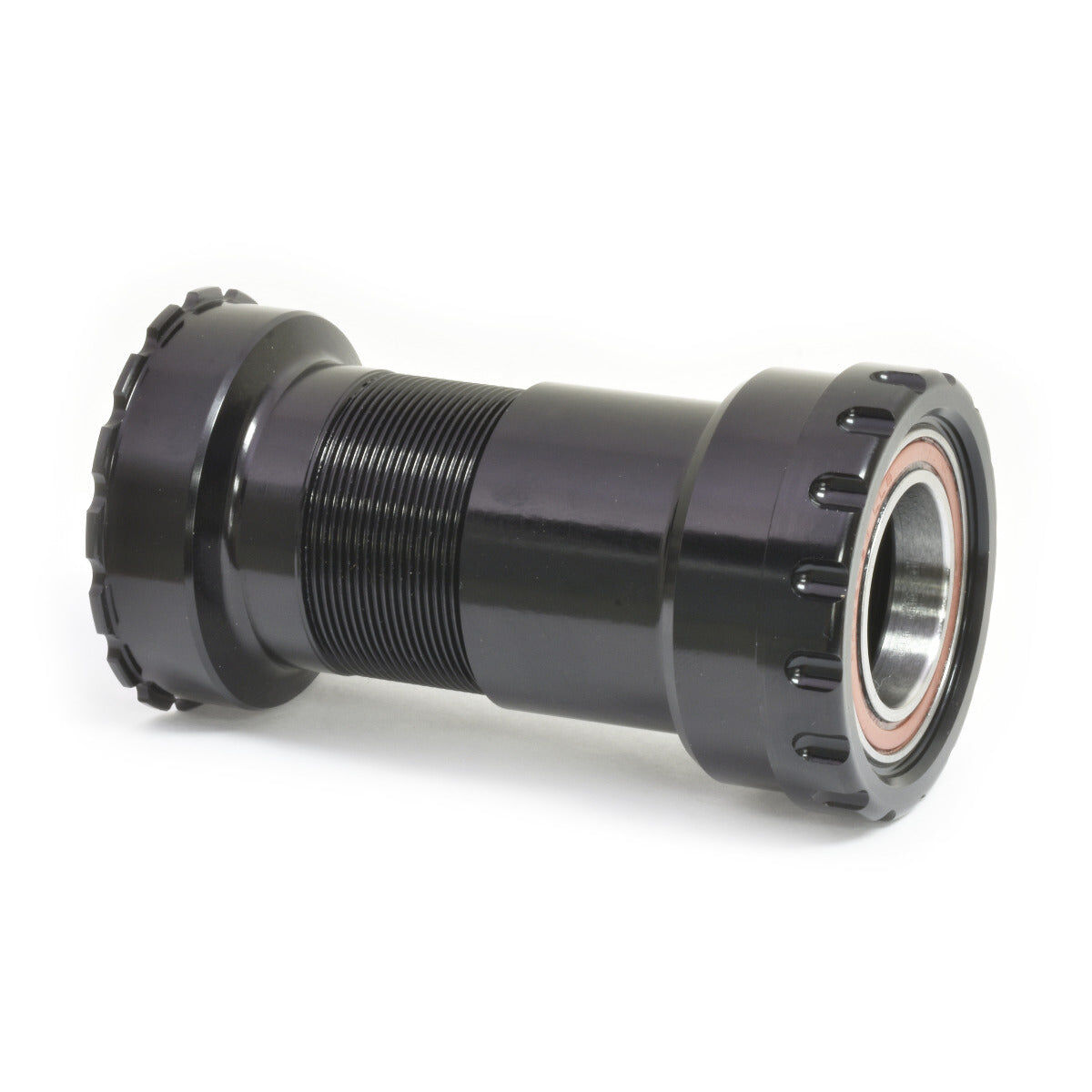

A BBright outboard bottom bracket with angular contact bearings, built for a SRAM 24/22mm crank spindle.

Highlights

  • Black anodised, machined aluminium cups
  • Enduro angular contact bearings
  • Dual silicone seal keeps contamination out for longer life
  • Fully serviceable
  • Weighs 98g

Tool needed

Use only bottom bracket tools compatible with 16-notch MegaEvo bottom brackets, such as the FSA MegaEvo tool or Park Tool BBT-29.

Fitting

Tune's workshop can fit this bottom bracket for you — the right cup tool and torque setting matter, especially on a press-fit or T47 shell.

Compatibility & fit

Fits BBright press-fit frames and accepts current 24/22mm diameter SRAM crank spindles.

Wheels Manufacturing backs this bottom bracket with a 1 year warranty against manufacturing defects, plus 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Black anodised, machined aluminium cups
  • Enduro angular contact bearings
  • Dual silicone seal keeps contamination out for longer life
  • Fully serviceable
  • Weighs 98g
Frame interfaceBBright press-fit
Crank spindle diameter24/22mm (SRAM)
BearingsEnduro angular contact
Weight98g
Tool pattern16-notch MegaEvo (FSA MegaEvo / Park Tool BBT-29)
SKU SCV-WMBB-BBRIGHT-OUT-9
Brand Wheels MFG
