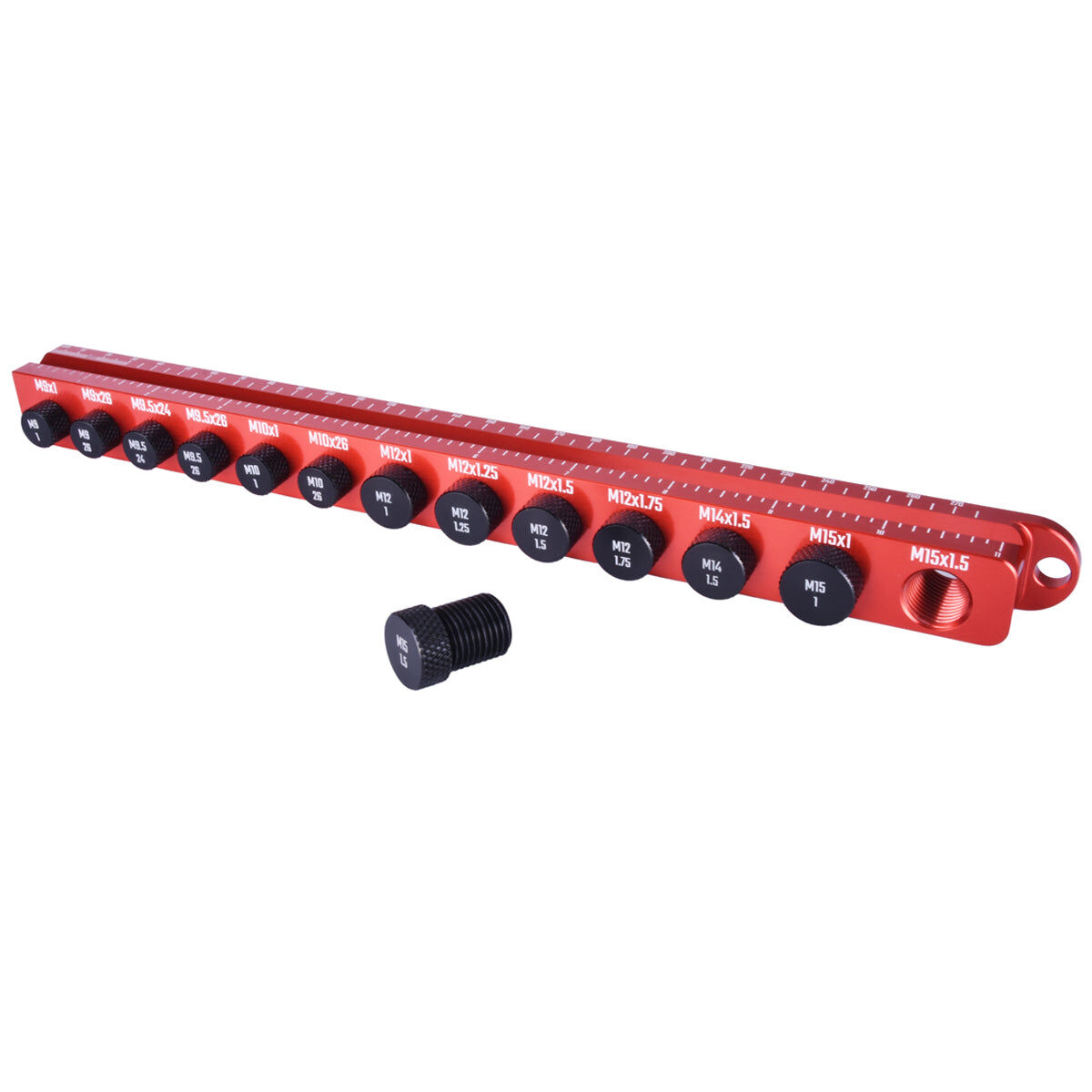

Ordering a replacement axle from a part number and a guess is a common way to end up with the wrong one. The Axle Ruler Pro measures length, thread size and pitch directly off the axle in hand, in inches or centimetres.

Highlights

  • Self-centring channel measures axle length accurately without guesswork
  • Covers common male and female thread pitches for solid, quick release and thru-axles
  • 11-inch and 28-centimetre scales on the one ruler
  • Machined from 6061 aluminium

What it's for

Identifying an unknown axle's length, thread size and pitch before ordering a replacement. Reads thread pitches including M9x1, M9x26, 3/8"x24, 3/8"x26, M10x1, M10x26, M12x1, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M15x1 and M15x1.5.

Compatibility & fit

Works with solid axles, quick release axles and thru-axles across the thread pitches listed above, per Wheels Manufacturing's own product description.

Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the date of purchase, and accepts returns of unused, unopened stock within 30 days of purchase. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Wheels Manufacturing’s Australian distributor.

  • Self-centring axle measurement channel
  • Reads 13 common male and female thread pitches
  • 11-inch and 28cm rulers in one tool
  • 6061 aluminium construction
TypeAxle length and thread pitch gauge
Material6061 aluminium
Scales11 in and 28 cm rulers
Thread pitches readM9x1, M9x26, 3/8"x24, 3/8"x26, M10x1, M10x26, M12x1, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M15x1, M15x1.5
SKU SCV-WMTL-AXLERULER-PRO
Brand Wheels MFG
Shipping Weight 0.6560kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
