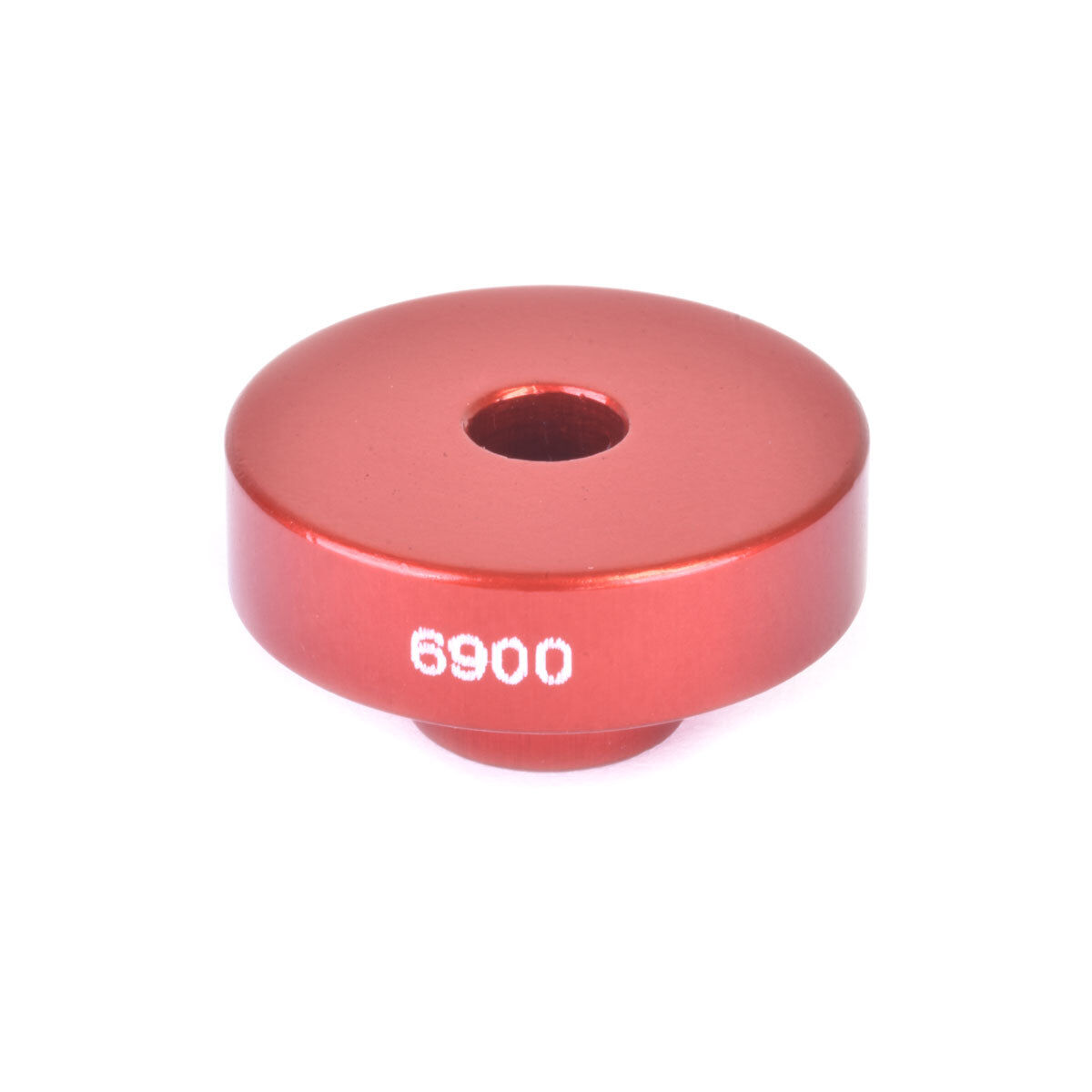

Pressing a bearing in off-square, or with a socket that bears on the wrong race, is one of the quickest ways to write off a new bearing. This drift is machined specifically for the 6900 bearing so the press load lands where it should.

Highlights

  • Inner step outer diameter 9.9mm locates inside the bearing bore
  • Outer diameter 21.8mm, thickness 5.9mm
  • Thru hole 5.2mm, sized to fit a quick release skewer or M5 bolt
  • Machined, red anodized aluminium

Compatibility & fit

Installs a 6900 sealed bearing. Compatible with the Wheels Manufacturing PRESS-2. Sold individually — some installations (bearings pressed from both sides) need two drifts.

Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the date of purchase, and accepts returns of unused, unopened stock within 30 days of purchase. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Wheels Manufacturing’s Australian distributor.

  • Machined specifically for the 6900 sealed bearing
  • Inner step aligns the drift in the bearing bore
  • Thru hole fits a QR skewer or M5 bolt
  • Red anodized aluminium
Installs6900 sealed bearing
Inner step OD9.9mm
Outer diameter21.8mm
Thickness5.9mm
Thru hole diameter5.2mm (QR skewer or M5 bolt)
Compatible pressPRESS-2
MaterialMachined, red anodized aluminium
