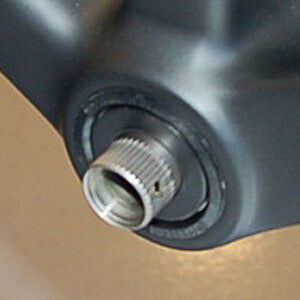

Adapter cups that let a 386EVO-standard frame run a 24mm Shimano crank or a SRAM/TruVativ crank, instead of the native 22/24mm 386EVO spindle.

Highlights

  • Adapts 386EVO frames to Shimano or SRAM/TruVativ cranks
  • Includes matched spacers for fine-tuning chainline

Sizes & options

Shimano 24mmTwo 24mm ID adapters + eight 0.7mm spacers, for Shimano cranks
22/24 SRAM GXP24mm ID adapter (right) + 22mm ID adapter (left) + eight 0.7mm spacers, for SRAM/TruVativ cranks

Compatibility & fit

Shimano version: two 24mm ID adapters plus eight 0.7mm spacers, for Shimano cranks. SRAM version: one 24mm ID adapter (right) and one 22mm ID adapter (left) plus eight 0.7mm spacers, for SRAM/TruVativ cranks. Both are for 386EVO-standard frames only.

Wheels Manufacturing bottom brackets and bearings carry a warranty against manufacturing defects (wheelsmfg.com states 1 year warranty, 30-day returns on its products).

For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.

  • Adapts 386EVO frame to another crank spindle
  • Two adapter cups plus 0.7mm spacers per kit
  • Available for Shimano or SRAM/TruVativ cranks
Frame standard386EVO
Spacer thickness0.7mm, 8 included
Crank optionsShimano 24mm or SRAM/TruVativ 22/24mm
SKU SCV-P-11705
Brand Wheels MFG
Shipping Weight 0.1200kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.400m
