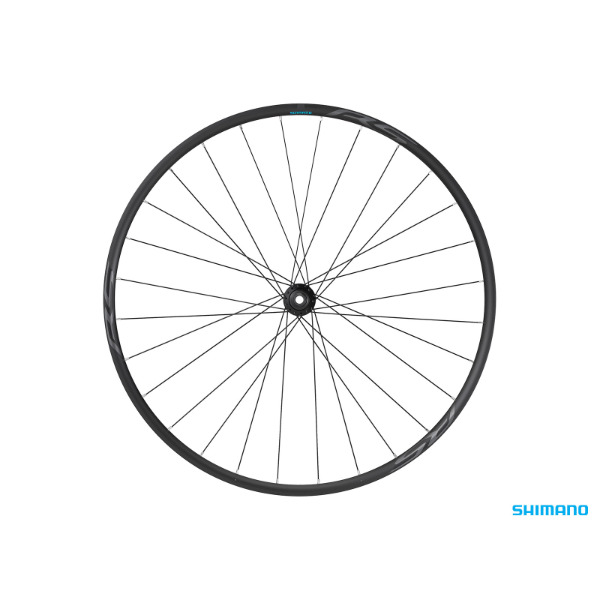

Shimano WH-RS171 front wheel, 700C Center Lock disc

A disc-brake front wheel built around a wider 19C rim, so wider tyres sit in a better shape and ride with more support. It is more than 100 g lighter than the WH-RS170 it replaces, and the 12 mm E-THRU axle keeps the front end precise under braking.

Highlights

  • 700C front wheel, rim listed by Shimano as 622 x 19C
  • Wide-profile 19C rim suits wider tyres
  • More than 100 g lighter than the previous WH-RS170
  • 12 mm E-THRU thru axle, 100 mm O.L.D.
  • Center Lock disc rotor mount
  • Average weight 897 g, black

Wider rim, lower weight

The 19C rim profile gives a wider tyre a flatter, better-supported casing than an older narrow rim, which helps grip and comfort at sensible pressures. Shimano lists the average weight at 897 g.

Compatibility and fit

Fits disc-brake frames with a 12 mm front thru axle and 100 mm hub spacing. The hub uses a Center Lock rotor mount, and Shimano lists this wheel as compatible with a 140 mm disc brake rotor. Clincher rim, so it takes a standard clincher tyre and tube. If you want us to fit a rotor and tyre before it goes out, tell us at checkout.

]]>

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Higher rigidity
  • Road E-THRU axle
  • Easy maintenance and installation
  • Simple handling and workability
  • MODEL NO: WH-RS170-CL-F12
  • SHIMANO 105 R7000 Series
  • Black | White color
  • Average weight: 942g
  • 12 mm E-THRU Axle Fixing method
  • Black QR lever
  • Rim brake type
  • 100*12mm (Length x Inner diameter) Thru Axle
  • CBN finish Cone Bearing
  • Polish Cup Bearing
  • CENTER LOCK disc brake/mount type
  • 100mm O.L.D.
  • 140mm Disc mount brake rotor compatible
  • Grease holding function
  • CATEYE RR-550-WUA SW AS Reflector
  • CATEYE RR-317-WUA SW DIN    Reflector
  • CATEYE RR-550-WUW SW JIS/CPSC Reflector
  • 24mm Rim height
  • 23mm Rim width
  • Requires rim tape
  • Sleeved Rim joint
  • Contact Hub Seal
  • OFFSET RIM
  • 28 Number Spokes
  • Tire recommended size: 25-622 - 38-622
  • Clincher Tire type
  • 622 x 17C Wheel Size
ModelWH-RS171-CL PositionFront Wheel size700C (622 x 19C) Rim typeClincher Axle12 mm E-THRU thru axle O.L.D.100 mm Brake typeCenter Lock disc brake Rotor compatibility140 mm (as listed by Shimano) Average weight897 g ColourBlack ]]>
SKU SHM-EWHRS171FED70B
Barcode # 4550170449414
Brand Shimano
Shipping Weight 0.3000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
