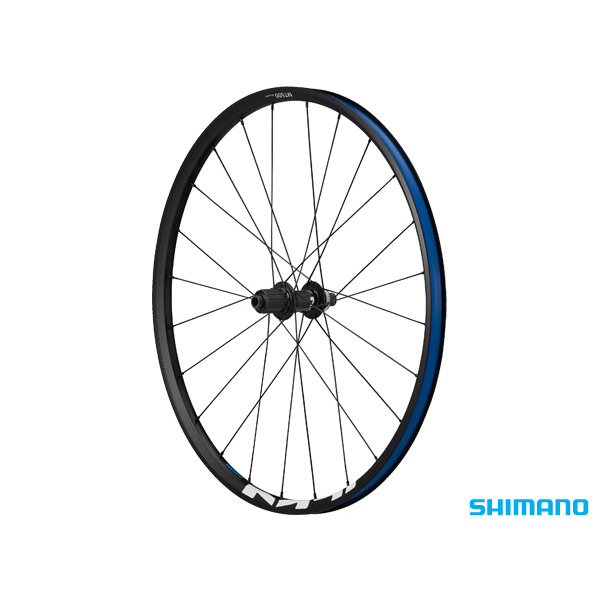

Shimano WH-MT500 REAR WHEEL - 27.5in BLACK QUICK RELEASE CENTERLOCK
EWHMT500RD7C
SKU code: SHM-EWHMT500RD7C
Shimano WH-MT500 27.5in rear wheel, Center Lock, quick release
A dependable trail wheel that keeps working when the weather does not. The labyrinth-sealed hub keeps grit out of the bearings, and the 24C wide-profile rim supports the tyre better for more grip and a steadier feel through corners.
Highlights
- 27.5in (584) rear wheel with a 24C wide-profile rim
- Center Lock disc rotor mounting
- 135 mm over-locknut spacing, quick release
- Labyrinth-sealed hub to keep dirt and water out
- Takes 8, 9, 10 and MTB 11-speed cassettes
- Average weight 1147 g
Trail-ready build
The wide rim profile gives the tyre a fuller shape, which helps traction and rigidity on loose trail surfaces. It is a straightforward, serviceable wheel built for riders who want reliability rather than the lightest possible build.
Compatibility and fit
Fits frames with 135 mm quick release rear spacing. Rotors must be Center Lock. Cassette fitment covers Shimano 8, 9, 10 and MTB 11-speed. Sold as a wheel; rotor, cassette and tyre are purchased separately. If you are unsure what your frame takes, ask us before you order.
Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.
- SHIMANO Performance MTB wheel for everyone
- Pricepoint: -20% vs WH-MT15 (depends on spec.)
- Wider and lighter
- 24C wide-profile rim for more tire rigidity and traction optimized for trail riding
- More than 100 g lighter (per bike vs. WH-MT15)
- MODEL NO: WH-MT500-CL-R-275
- DEORE M4100 Series
- Black color
- Average weight: 1147
- J-bend spokes
- Remarks *** Spoke protector is available only for 9 & 10-speed
- CENTER LOCK Disc Brake type
- Black QR lever
- Quick-release Axle fixing method
- Internal grease sleeve
- O.L.D: 135mm
- Rear speeds: 8-10 speed, MTB 11-speed
- CBN Cone Bearing
- Grease holding function
- CATEYE RR-550-WUA SW AS Reflector
- CATEYE RR317-WUA SW DIN: Reflector
- CATEYE RR-550-WUW SW JIS/CPSC Reflector
- Rim height: 21mm
- Rim width: 29.6mm
- Requires X(24 - 584) rim tape
- Sleeve Rim joint
- Labyrinth & Contact Hub Seal
- Butted Spokes: 2.3
- Number Butted: 24
- Tire recommended size: 27.5 x 2.00 - 2.40
- Clincher Tire Type
- 584 x 24C (650B = 27.5") Wheel Size
- HG spline
- Pawl ratchet system type
- WH-MT500-CL Model
- Specification: R-275
| Model name | WH-MT500-CL |
|---|---|
| Position | Rear |
| Wheel size | 584 x 24C (27.5 inch) |
| Brake type | Center Lock disc |
| O.L.D. (axle spacing) | 135 mm |
| Axle type | Quick release |
| Cassette compatibility | 8 / 9 / 10-speed and MTB 11-speed |
| Average weight | 1147 g |
| Colour | Black |
| SKU | SHM-EWHMT500RD7C |
| Barcode # | 4524667236115 |
| Brand | Shimano |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
| Shipping Cubic | 0.001000000m3 |
| Unit Of Measure | each |
Must be installed and serviced by qualified bicycle mechanic
