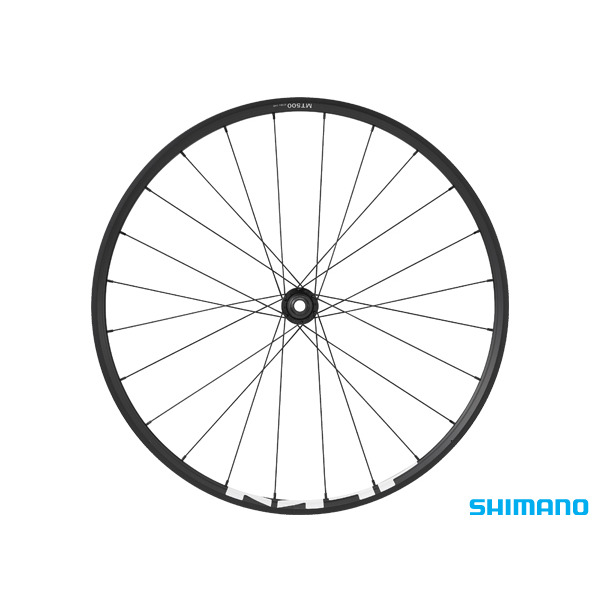

SHIMANO - 27.5" - Clincher - CENTER LOCK - 110x15 mm E-THRU Axle - Wheel Front

SHIMANO wheel brings robust performance to any trail. Smooth-rolling labyrinth seal hub.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • SHIMANO Performance MTB wheel for everyone
  • Pricepoint : -20% vs WH-MT15 (depends on spec.)
  • Wider and lighter
  • 24C wide-profile rim for more tire rigidity and traction optimized for trail riding
  • More than 100 g lighter (per bike vs. WH-MT15)
  • MODEL NO: WH-MT500-CL-F15-B-275
  • SHIMANO SERIES
  • Black Color
  • Average weight: 946
  • J-bend Spokes
  • with Disc mount Outer serration rotor lock ring
  • Brake type: CENTER LOCK Disc
  • Axle fixing method: 15 mm E-THRU
  • with External serration disc brake rotor lock ring
  • Thru Axle (Length x Inner diameter ; mm) 110 x 15
  • Internal grease sleeve
  • O.L.D.: 110mm
  • Axle Fixing method: 15 mm E-THRU
  • Axle Thru Axle Length x Inner Diameter (mm) 110x15
  • Bearing Cone: CBN
  • Brake Type: CENTER LOCK Disc
  • Outer Serration Rotor Lock Ring: Yes
  • Front/Rear: Front
  • Grease holding function
  • Reflector AS: CATEYE RR-550-WUA SW
  • Reflector DIN: CATEYE RR317-WUA SW
  • Reflector JIS/CPSC: CATEYE RR-550-WUW SW
  • Rim Height: 21mm
  • Rim Requires rim tape: X (24 - 584)
  • Rim joint: Sleeve
  • Rim Width: 29.6mm
  • Seal Hub: Labyrinth & Contact
  • Spokes Butted: 2.3
  • Spokes Number: 24
  • Tire Recommended size: 27.5 x 2.00 - 2.40
  • Tire Type: Clincher
  • Wheel Size: 584 x 24C (650B = 27.5 inch)
  • Model name: WH-MT500-CL
SKU SHM-EWHMT500FEBD7X
Barcode # 4550170450533
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
