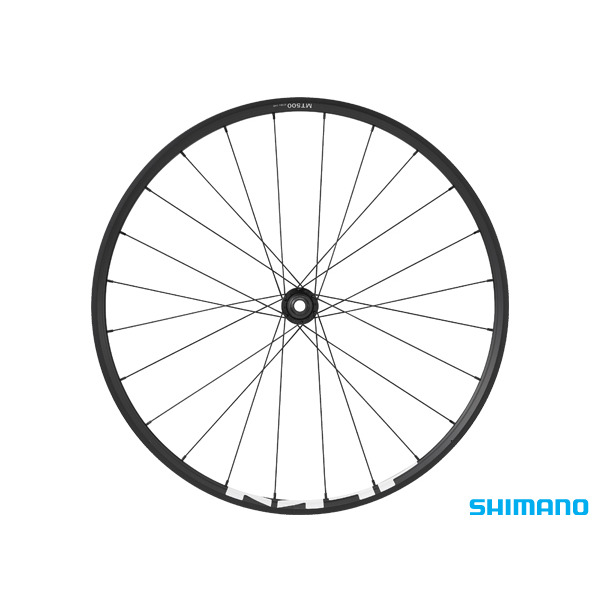

WH-MT500-CL-F15-275

SHIMANO - 27.5" - Clincher - CENTER LOCK - 100x15 mm E-THRU Axle - Wheel Front

SHIMANO wheel brings robust performance to any trail. Smooth-rolling labyrinth seal hub.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • SHIMANO Performance MTB wheel for everyone
  • Pricepoint : -20% vs WH-MT15 (depends on spec.)
  • Wider and lighter
  • 24C wide-profile rim for more tire rigidity and traction optimized for trail riding
  • More than 100 g lighter (per bike vs. WH-MT15)
  • MODEL NO: WH-MT500-CL-F15-275
  • SHIMANO Series
  • Black Color
  • 936 Average weight
  • J-bend Spokes
  • Disc mount_Outer serration rotor lock ring_with
  • CENTER LOCK Disc Brake type
  • 15 mm E-THRU Axle fixing method
  • with External serration disc brake rotor lock ring
  • Thru Axle (Length x Inner diameter ; mm)_100 x 15
  • Internal grease sleeve
  • 100mm O.L.D.
  • CBN Cone Bearing
  • Outer Serration Rotor Lock Ring: Yes
  • Front/Rear: Front
  • Grease holding function
  • O.L.D. (mm)    100
  • Reflector_AS: CATEYE RR-550-WUA SW
  • Reflector_DIN: CATEYE RR317-WUA SW
  • Reflector_JIS/CPSC: CATEYE RR-550-WUW SW
  • 21mm Rim Height
  • X (24 - 584) Requires rim tape
  • Sleeve Rim joint
  • 29.6mm Rim Width
  • Labyrinth & Contact Seal Hub
  • 2.3 Spokes Butted
  • 24 Spokes Number
  • 27.5 x 2.00 - 2.40 Recommended Tire size
  • Clincher Tire Type
  • 584 x 24C (650B = 27.5 inch) Wheel Size
  • Model name: WH-MT500-CL
SKU SHM-EWHMT500F15D7X
Barcode # 4550170450540
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
