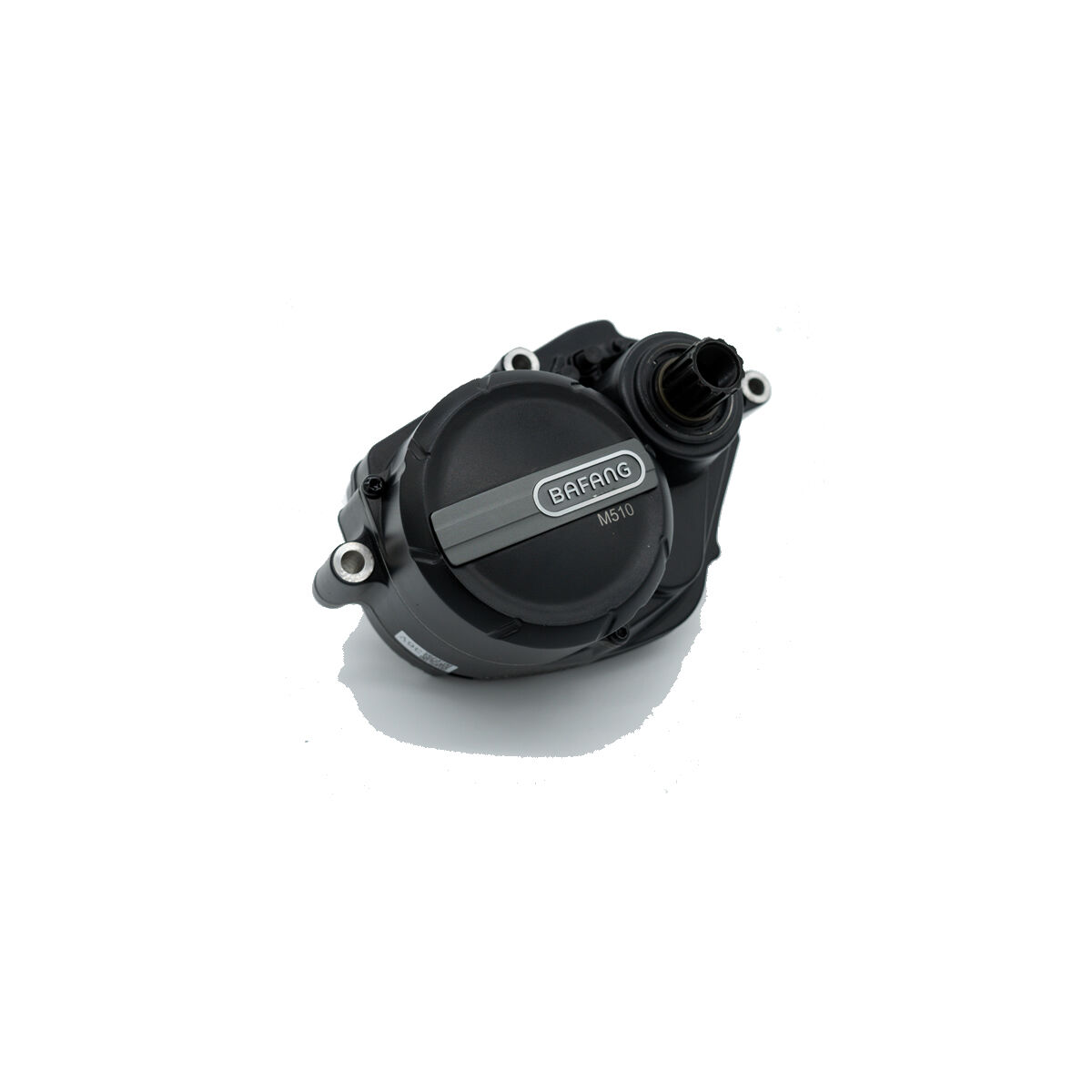

The Bafang M510 is the motor behind the VelectriX Ascent X eMTB, and this is its direct replacement: 36 V, 250 W, rated by VelectriX at 95 Nm, with CAN communication and IPX6 water resistance.

  • Bafang MM G522.250.C: check this code against the label on your motor.
  • 95 Nm torque: VelectriX's rating, matching the Ascent X spec.
  • CAN protocol: pairs with the Ascent X's Bafang DP C11.CAN display.
  • IPX6 rated for water resistance.

Workshop fit

Swapping a mid-drive motor means removing the cranks, chainring and wiring, so it's a workshop job. Tune Cycles can fit it, reconnect the display and sensors, and test the assist.

Fit and compatibility

The Ascent X runs a Bafang M510, 250 W, 36 V. For any other VelectriX with an M510, check the motor's model code reads MM G522.250.C and talk to us before ordering.

We'll confirm the fit and book your Ascent X in.

VelectriX warranty. 2 years against manufacturing defects in materials and workmanship (motor, battery and motor controller). The warranty covers the original purchaser of a product bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase. Claims go through the dealer you bought from.

  • Bafang M510 mid-drive, model code MM G522.250.C
  • 36 V, 250 W, 95 Nm (VelectriX rating)
  • CAN protocol
  • IPX6 water resistance
  • Direct replacement for the Ascent X
MakerBafang
ModelM510
Model codeMM G522.250.C
TypeMid-drive motor
Voltage36 V
Power250 W
Torque95 Nm (VelectriX rating)
CommunicationCAN protocol
Water resistanceIPX6
FitsVelectriX Ascent X
VelectriX part codeVXAUS10572
SKU VLX-VXAUS10572
Brand VelectriX
Shipping Weight 4.5000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.350m
