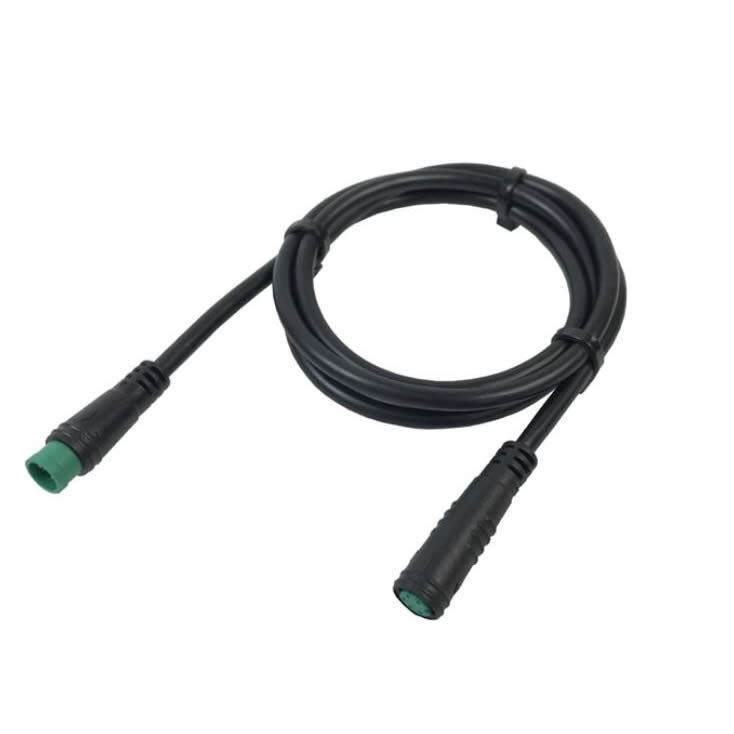

The cable that links the display to the controller on VelectriX's Bafang rear hub-drive eBikes with a Kingmeter KM3209 display. If the display won't power up or keeps dropping out, a pinched or damaged cable is a common cause, and this 1300 mm cable replaces it.

  • 1300 mm long: runs from the display to the controller.
  • KM3209 set-ups: for bikes with the Kingmeter KM3209 LCD.
  • Bafang hub-drive system: for bikes with a Bafang rear hub motor.

Fitting

Replacing it means tracing the old cable along the frame and reconnecting both ends. Tune Cycles can fit it and test the display and assist.

Fit and compatibility

Suits VelectriX models with a Bafang rear hub motor and a Kingmeter KM3209 display; on the current range that's the Cruiser, Cruiser ST, Urban ST and Ascent 29 (Bafang G120). Not for the SUV, which uses a Bafang DP C080.C display. Ascent 24 and 27.5 owners (VelectriX RX1 motor), check with us first.

Send us your model and year and we'll confirm.

VelectriX warranty. 1 year against manufacturing defects in materials and workmanship (battery chargers, displays, wiring looms, pedal-assist and gear-shift sensors). The warranty covers the original purchaser of a product bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase. Claims go through the dealer you bought from.

  • Display-to-controller cable
  • 1300 mm long
  • For Bafang rear hub-drive models
  • Suits bikes with a Kingmeter KM3209 display
TypeDisplay to controller cable
Length1300 mm
SystemBafang rear hub-drive with Kingmeter KM3209 display
FitsVelectriX Cruiser, Cruiser ST, Urban ST, Ascent 29
VelectriX part codeVXAUS10278
SKU VLX-VXAUS10278
Brand VelectriX
Shipping Weight 0.1500kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
