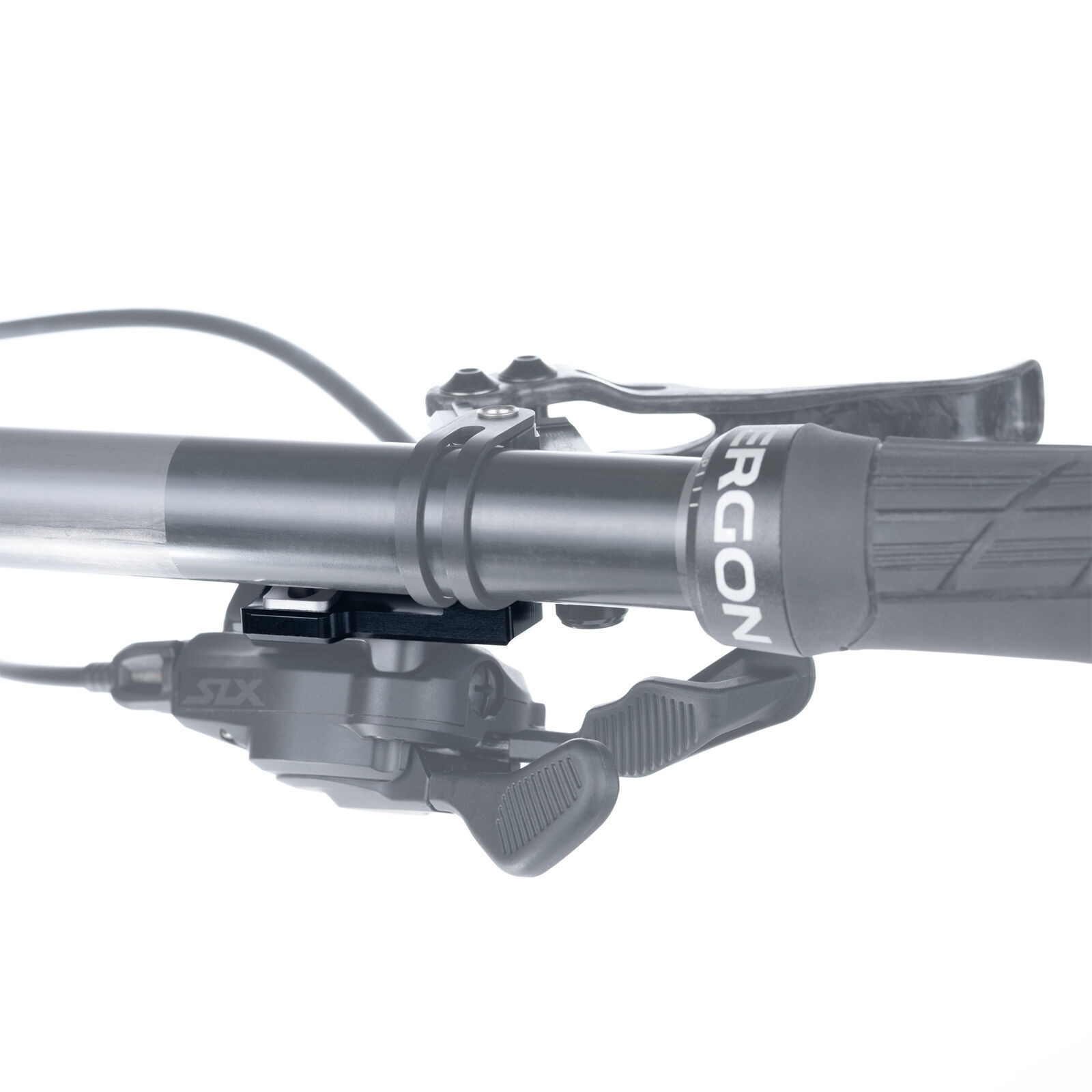

Designed for the compact Piccola pump, the I-Spec EV UNI interface puts your Shimano shifter right where you want it, with both side-to-side and angle adjustment. It also fits Direttissima and Maxima pumps.

Highlights

  • Mounts a Shimano I-Spec EV shifter directly to the brake pump
  • Designed for Piccola pumps; also fits Piccola HD, Direttissima and Maxima
  • 14 mm of axial adjustment plus about 40 degrees of angle adjustment
  • Right side only
  • Black aluminium, mounting hardware included

On Direttissima and Maxima

The UNI interface also mounts to Direttissima and Maxima pumps. On those brakes the shifter sits further inboard, towards the centre of the bar. If you want the shifter further out on those pumps, look at the I-Spec EV DRT interface.

Compatibility & fit

Trickstuff brakes: Piccola, Piccola HD, Direttissima and Maxima. Shifters: Shimano I-Spec EV. Trickstuff states it is not compatible with the XTR Di2 shifter SW-M9250-IR or the Deore XT Di2 shifter SW-M8150-IR. Right side only. Supplied as one interface with mounting hardware. Our workshop can fit it and set up your shifting.

Covered against manufacturing defects under Trickstuff's warranty, alongside your rights under the Australian Consumer Law. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Trickstuff's Australian distributor.
  • Direct Shimano I-Spec EV shifter mount
  • Designed for Piccola; also fits Piccola HD, Direttissima, Maxima
  • 14 mm axial and about 40 degree angle adjustment
  • Right side only
  • Not for XTR Di2 SW-M9250-IR or XT Di2 SW-M8150-IR
Shifter standardShimano I-Spec EV
Not compatibleXTR Di2 SW-M9250-IR, Deore XT Di2 SW-M8150-IR
Trickstuff brakesPiccola, Piccola HD, Direttissima, Maxima
SideRight only
Adjustment14 mm axial, about 40 degrees angle
MaterialAluminium
ColourBlack
Included1 interface, mounting hardware
SKU KWT-T-BCAAVXXRS0000S
Brand Trickstuff
Shipping Weight 0.4000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
