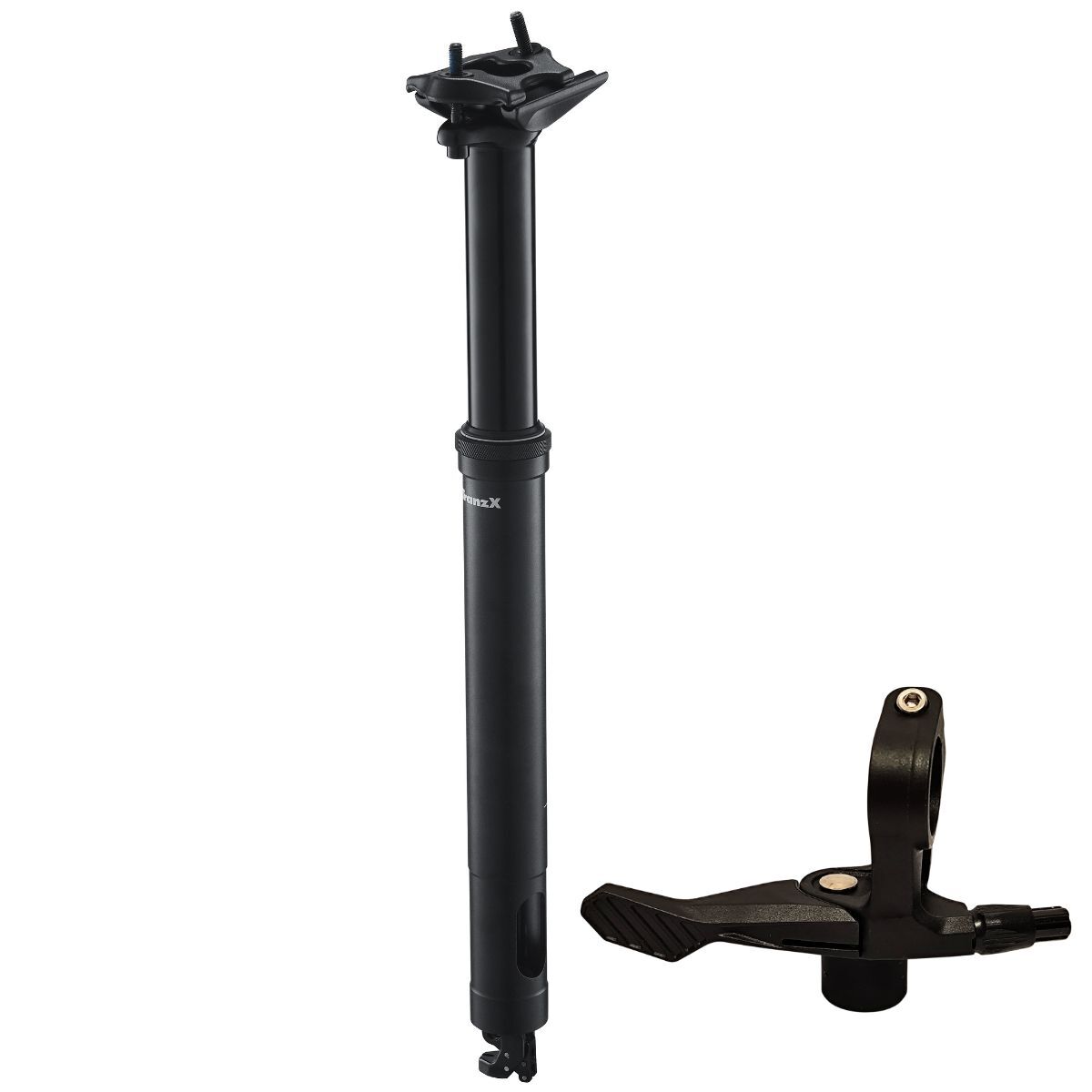

Long travel for the 31.6mm seat tubes found on many modern trail and enduro frames. The TranzX YSI34 gives you up to 200mm of drop in a straightforward, internally routed post.

Highlights

  • Internal cable routing
  • 31.6mm diameter, 100 to 200mm travel options
  • Supplied with a TranzX QL remote lever
  • Alloy 6061 construction with zero offset
  • Sandblasted black finish, hard-anodised black shaft

Straightforward and robust

The YSI34 uses 6061 aluminium, a zero-offset head and a hard-anodised black shaft, and routes internally through the frame. TranzX lists the 31.6mm post from 502 g at 100mm travel to 729 g at 200mm, excluding the cable set.

Options

TravelTotal length (TranzX)Weight excl. cable set (TranzX)
100mm350mm502 g
125mm405mm561 g
150mm456mm610 g
170mm500mm659 g
200mm565mm729 g

Compatibility & fit

Choose 31.6mm only if it matches your frame's seat tube. Check the total length against your frame's maximum insertion depth and your saddle height before choosing travel; TranzX does not publish insertion figures for the YSI34. Our workshop can fit your dropper post, route the cable and set it up with the remote lever.

Covered against defects in materials and workmanship. Normal wear and tear, crash damage, modification and incorrect installation are not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, TranzX's Australian distributor.
  • Internally routed dropper post
  • 31.6mm diameter
  • 100 to 200mm travel options
  • QL remote lever supplied
  • Alloy 6061, zero offset
  • Hard-anodised black shaft
BrandTranzX
ModelYSI34
RoutingInternal
Diameter31.6mm
Travel100mm / 125mm / 150mm / 170mm / 200mm
Offset0mm
MaterialAlloy 6061
Remote leverQL lever supplied
FinishSandblasted black
Shaft finishHard-anodised black
SKU KWT-P-JD-YSI34QL-316
Brand TRANZX
Shipping Weight 0.7000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.500m
