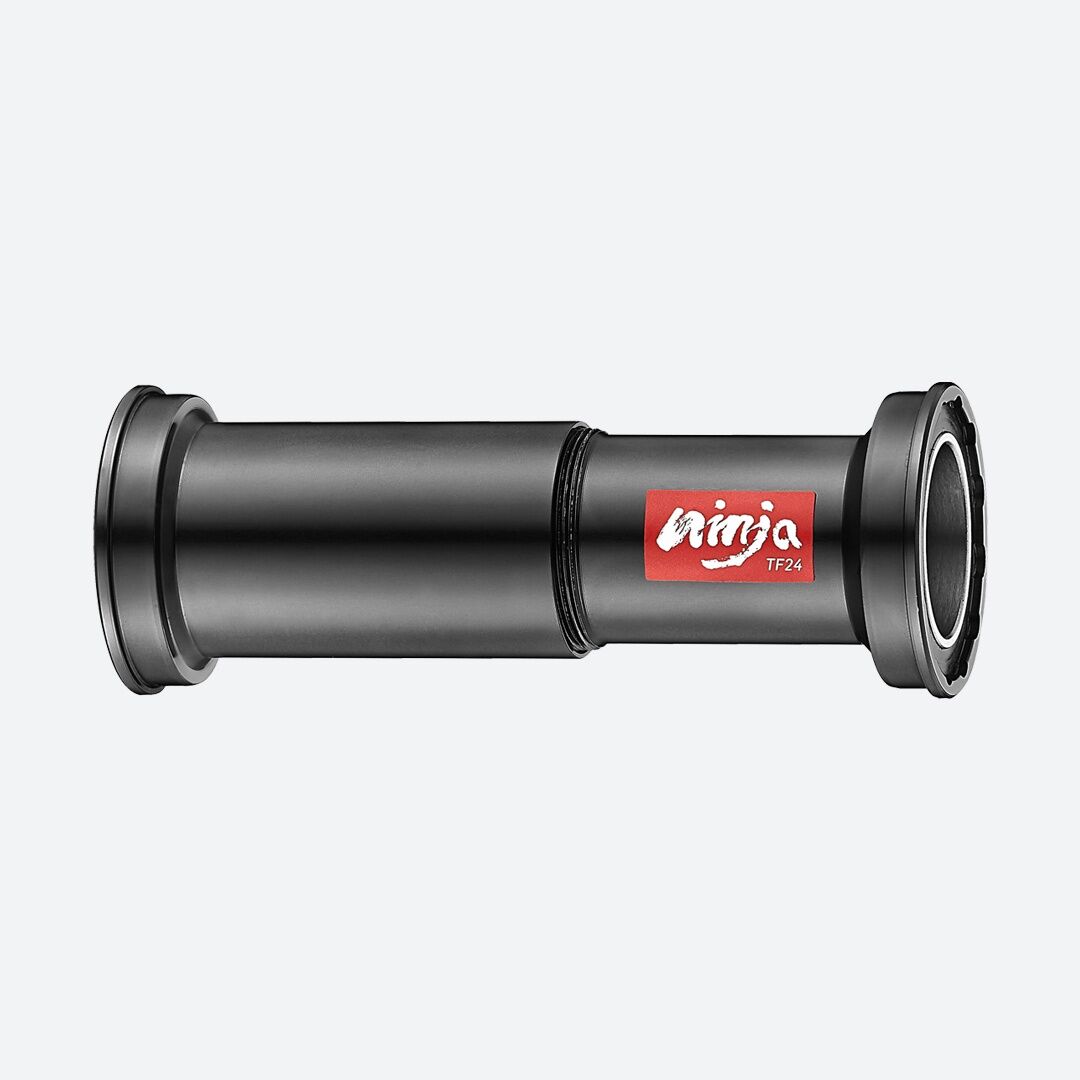

Token's Ninja bottom bracket is built to end creaking bottom brackets, extend bearing life and stiffen up the crank-to-frame connection on Trek BB90/BB95 frames running SRAM GXP cranksets.

Highlights

  • Fusion technology: an alloy shell wrapped in a machined plastic-and-fibre composite for a snug, creak-free fit in the frame
  • Extended alloy shell locks the drive and non-drive sides together for a stiffer bottom bracket junction
  • Premium high-carbon-steel bearings, supported on a solid alloy platform for a longer service life
  • Thread-together installation, not press-fit — designed to replace Trek's original press-fit bottom bracket

How it works

Token houses the bearings in an alloy shell wrapped in plastic and fibre composite cups. This combination gives the bearings a solid, precisely machined platform to sit on, while the composite exterior fits snugly against the frame bore to stop the movement that causes creaking. The two shell halves thread together, locking frame, cranks and bottom bracket into one stiffer unit.

Compatibility & fit

Fits Trek BB90 and BB95 frame shells (37mm bore, 90.5mm/95.5mm width) and SRAM GXP cranksets (24mm drive side / 22mm non-drive side spindle). Premium bearings measure 34.3 x 24 x H6.5mm; the set weighs approximately 77g.

Fitting

Our workshop can fit and check bottom brackets as part of a service — ask in-store or when you book online.

Token bottom brackets carry a 2-year warranty against defects in materials or workmanship from the original date of purchase, covering the original purchaser only. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Token's Australian distributor.
  • Fusion alloy/composite shell for a snug, creak-free fit
  • Locking shell halves add stiffness at the bottom bracket junction
  • Premium high-carbon-steel bearings for reduced friction and longer life
  • Thread-together installation for Trek BB90/BB95 frames
  • SRAM GXP (24mm/22mm) spindle compatibility
Frame standardTrek BB90 / BB95 (37mm bore, 90.5mm / 95.5mm width)
Crank interfaceSRAM GXP, 24mm / 22mm spindle
Bearing typePremium high-carbon-steel bearings
Bearing size34.3 x 24 x H6.5mm
WeightApprox. 77g per set
InstallationThread-together
ColourBlack
SKU JET-TK-DBB3724R-BKTK
Brand Token
