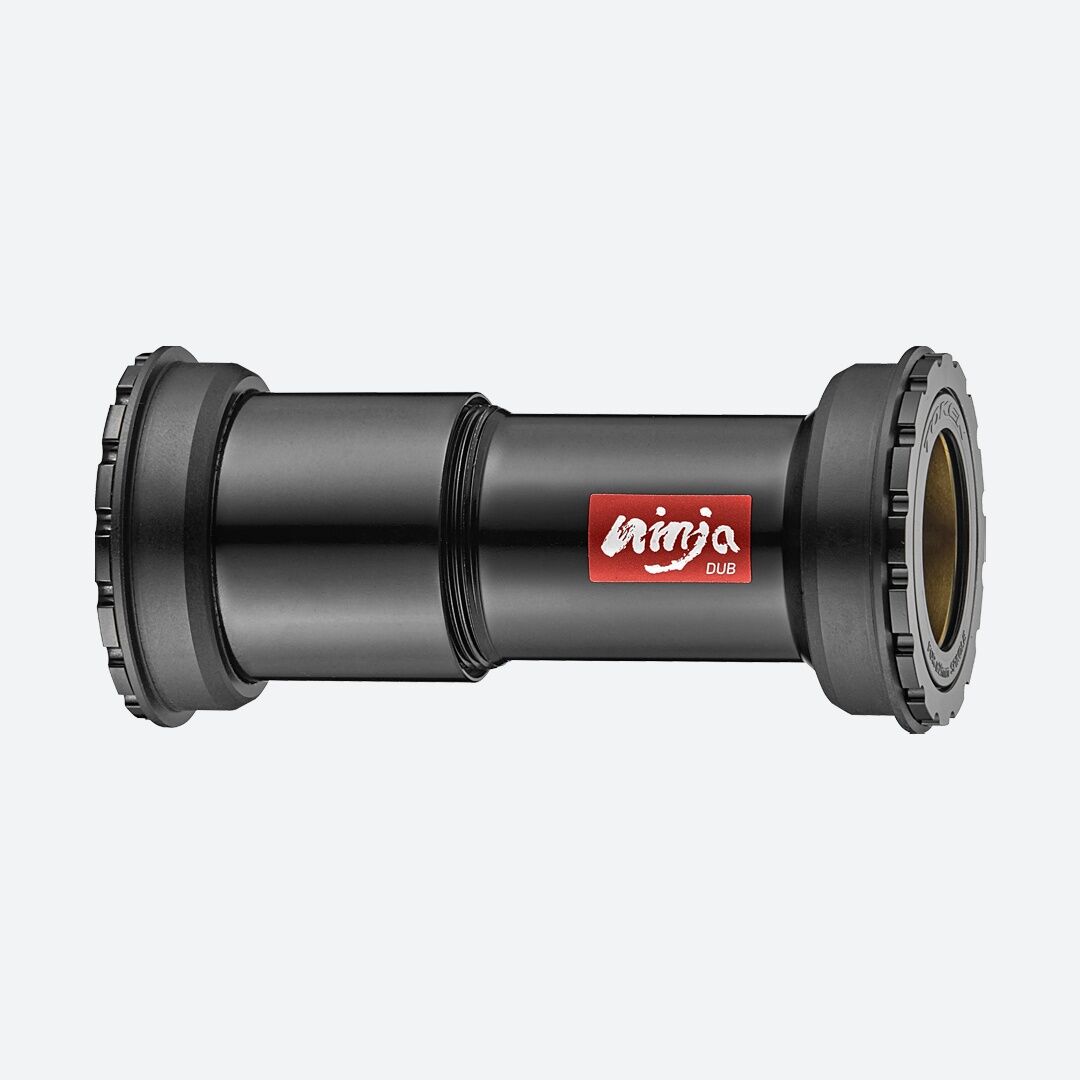

Token's Ninja bottom bracket is built to end creaking bottom brackets, extend bearing life and stiffen up the crank-to-frame connection on BB386/BB392 frames running SRAM DUB cranksets.

Highlights

  • Fusion technology: an alloy shell wrapped in a machined plastic-and-fibre composite for a snug, creak-free fit in the frame
  • Extended alloy shell locks the drive and non-drive sides together for a stiffer bottom bracket junction
  • TBT ceramic ball bearings, supported on a solid alloy platform for a longer service life
  • Thread-together installation, not press-fit

How it works

Token houses the bearings in an alloy shell wrapped in plastic and fibre composite cups. This combination gives the bearings a solid, precisely machined platform to sit on, while the composite exterior fits snugly against the frame bore to stop the movement that causes creaking. The two shell halves thread together, locking frame, cranks and bottom bracket into one stiffer unit.

Compatibility & fit

Fits BB386 and BB392 frame shells (46mm bore, 86.5mm/92mm width) and SRAM DUB cranksets (28.99mm spindle). TBT bearings measure 40 x 29 x H6.8mm; the set weighs approximately 109g.

Fitting

Our workshop can fit and check bottom brackets as part of a service — ask in-store or when you book online.

Token bottom brackets carry a 2-year warranty against defects in materials or workmanship from the original date of purchase, covering the original purchaser only. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Token's Australian distributor.
  • Fusion alloy/composite shell for a snug, creak-free fit
  • Locking shell halves add stiffness at the bottom bracket junction
  • TBT ceramic ball bearings for reduced friction and longer life
  • Thread-together installation for BB386/BB392 frames
  • SRAM DUB (28.99mm) spindle compatibility
Frame standardBB386 / BB392 (46mm bore, 86.5mm / 92mm width)
Crank interfaceSRAM DUB, 28.99mm spindle
Bearing typeTBT ceramic ball bearings
Bearing size40 x 29 x H6.8mm
WeightApprox. 109g per set
InstallationThread-together
ColourBlack
SKU JET-TK-DBB38629TBT-B
Brand Token
