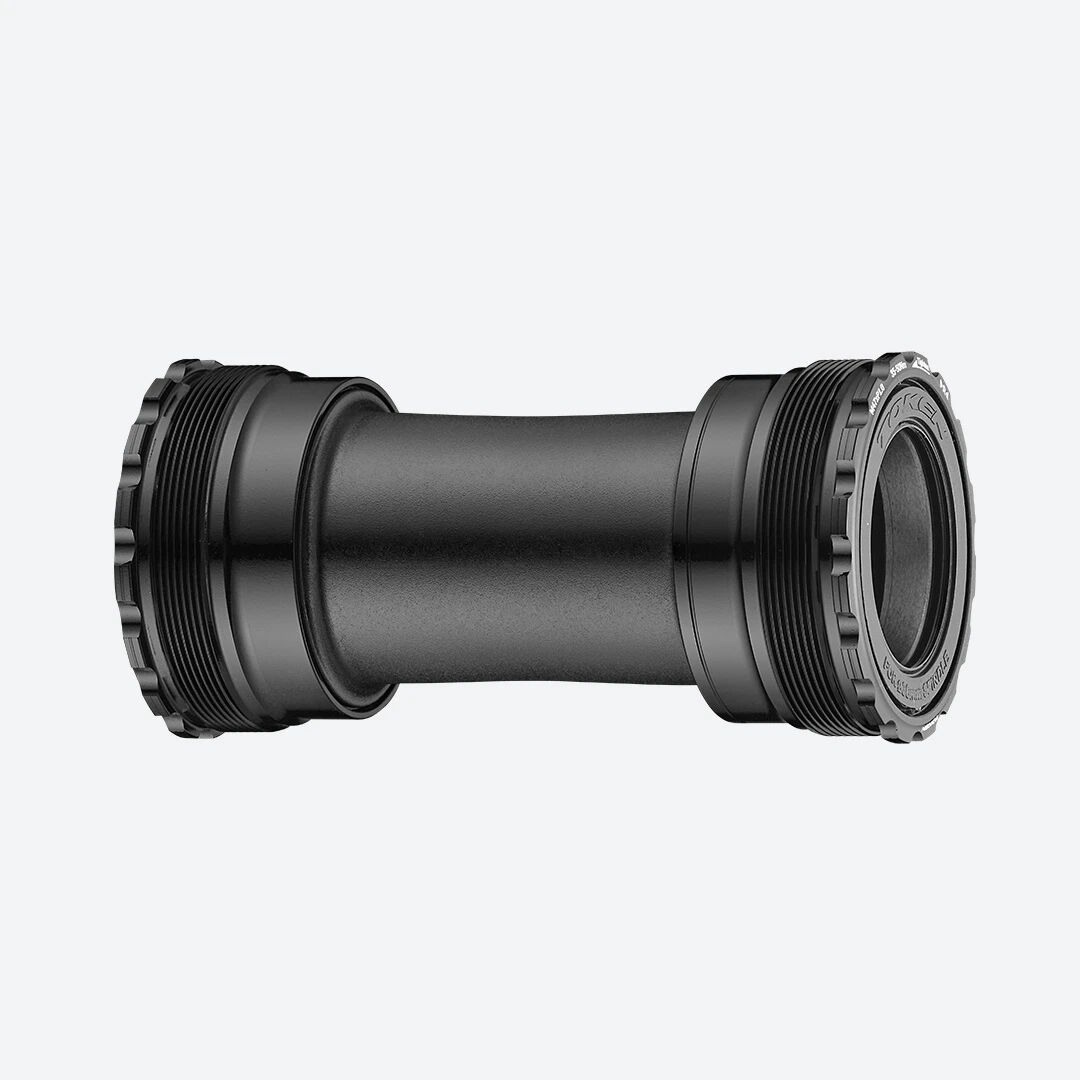

TOKEN BB47VM30 T47 Internal Bottom Bracket for Praxis M30 – Ceramic
SKU code: FES-DBB47VM30-TBT-BKTK
In Stock
TOKEN's BB47 series is built for T47 threaded frames, with a choice of TBT ceramic or Premium bearings behind highly water-resistant X-Seals. The BB47VM30 fits T47 internal (M47 x 85.5/86.5/91.5) frames with Praxis M30 cranks.
Highlights
- T47 internal (M47 x 85.5/86.5/91.5) shells
- M30 (28-30 mm), e.g. Praxis M30 cranksets
- Premium steel or TBT ceramic bearings
- X-Seal protection
- 108 g (TBT) / 113 g (Premium)
X-Seal protection
TOKEN's X-Seal technology keeps dirt and water out of the bearings with very little added friction, so the bottom bracket keeps spinning freely in bad conditions.
Bearing choice
TBT bearings use ceramic balls and very hard races for very low rolling resistance and long-lasting performance. Premium bearings are TOKEN's high carbon steel bearings.
Options
| Bearing Type | Bearings | Weight | Product code |
|---|---|---|---|
| Premium | High carbon steel | 113 g | BB47VM30 |
| Ceramic | TBT ceramic | 108 g | BB47VM30-TBT |
Compatibility & fit
Frame: T47 internal / inboard (M47 x 85.5 / 86.5 / 91.5). Crankset: M30 (28-30 mm) spindle, e.g. Praxis M30.
Installation: TOKEN recommends its TF4630-3SPA-2 tool; it is also compatible with Park Tool BBT-27.3.
Listed weights exclude spacers.
Bottom bracket installation is a separate workshop service and isn't included in the price. Our workshop can fit it with the correct tooling and check the shell before it goes in.
TOKEN warrants this product against defects in materials or workmanship for two years from the original date of purchase, for the original purchaser with dated proof of purchase. Normal wear and tear, bearings (unless unused), and damage from incorrect installation, modification, neglect or improper maintenance are not covered; TOKEN repairs or replaces a defective product at its discretion. This is in addition to your rights under the Australian Consumer Law.
For warranty support, return the product to Tune Cycles and we'll manage the claim with TOKEN's Australian distributor.
- T47 internal (M47 x 85.5/86.5/91.5) shells
- M30 (28-30 mm), e.g. Praxis M30 cranksets
- Premium steel or TBT ceramic bearings
- X-Seal protection
- 108 g (TBT) / 113 g (Premium)
| Type | Threaded |
|---|---|
| Frame type | T47 internal / inboard (M47 x 85.5 / 86.5 / 91.5) |
| Crank type | M30 (28-30 mm) spindle, e.g. Praxis M30 |
| Bearing type | Premium (high carbon steel) or TBT (ceramic) |
| Bearing size | 42 x 30 x 7 mm |
| Weight (excl. spacers) | TBT 108 g; Premium 113 g |
| TOKEN tool | TF4630-3SPA-2 |
| Compatible Park Tool | BBT-27.3 |
| SKU | FES-P-31220 |
| Brand | TOKEN |
