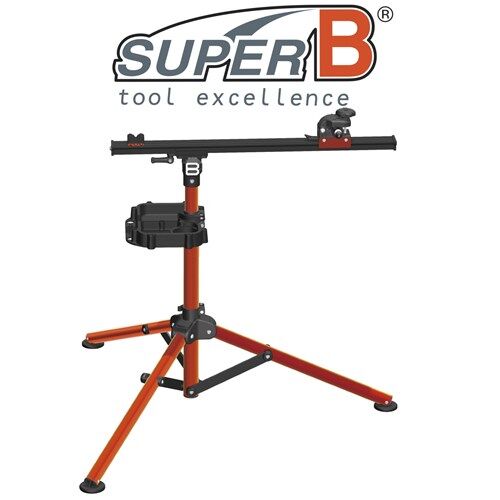

Super B Team Race Professional Work Stand Axle Mount
SKU code: BCP-TBWS60
A folding, axle-mount work stand that holds the bike by its axle and bottom bracket rather than clamping the frame or seatpost. Light aluminium and quick to pack for races and events.
Highlights
- Universal axle clamp: QR and 12–20 mm thru-axles
- Enlarged bottom bracket supports
- 360° horizontal rotation, double-lock beam
- Height 75–100 cm, max load 30 kg
- Folds quickly; tool tray and 2 touch fasteners included
Holding the bike
The universal clamp takes quick-release skewers (100, 130 and 135 mm) and 12–20 mm thru-axles. Enlarged bottom bracket supports take a wide range of frames, and the beam slides forward and back to balance the bike. Two touch fasteners are included to secure it.
Working on it
The beam rotates 360° horizontally with a double-lock design to hold it steady, so you can bring each side of the bike to you. Drainage holes in the beam let water run out when you wash the bike on the stand. The included tool tray keeps parts and tools at hand.
Compatibility & fit
Fits bikes with QR skewers (100 / 130 / 135 mm) or 12–20 mm thru-axles, up to 30 kg. Because it mounts at the axle, one wheel comes out to fit the bike to the stand.
Super B offers a limited lifetime warranty: under normal use, a tool with a defect in material or manufacture will be repaired or replaced. It doesn't cover normal wear, or damage from accident, abuse, neglect, modification or improper use. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Super B's Australian distributor.
- Axle-mount clamp for QR and 12–20 mm thru-axles
- Bottom bracket supports; beam adjusts fore and aft
- 360° horizontal rotation with double lock
- 75–100 cm height, 30 kg max load
- Lightweight aluminium, folds for transport
- Tool tray and 2 touch fasteners included
| Brand | Super B |
|---|---|
| Model | TB-WS60 Professional Work Stand |
| Mount | Axle clamp + bottom bracket support |
| Axle fit | QR 100 / 130 / 135 mm; thru-axle 12–20 mm diameter |
| Rotation | 360° horizontal |
| Height | 75–100 cm |
| Max load | 30 kg |
| Material | Aluminium |
| Included | Tool tray, 2 touch fasteners |
| Range | Super B Premium |
| SKU | BCP-TBWS60 |
| Model # | TBWS60 |
| Barcode # | 4710898411005 |
| Brand | Super B Tools |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.400m |
| Shipping Length | 1.200m |
