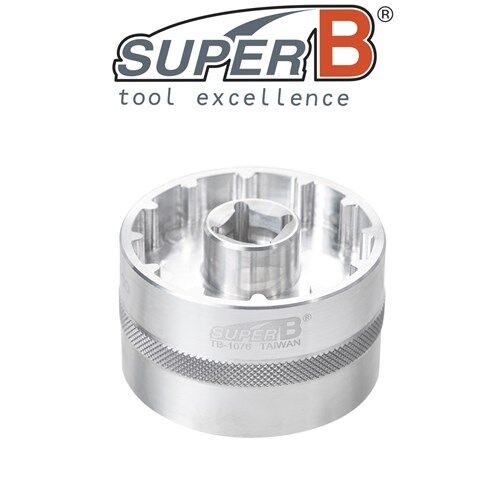

Super B T47 and PF30 Bottom Bracket Tool 12 and 16 Notch 1/2 in Drive
SKU code: BCP-TB1076
One dual-sided tool for the two common notched T47-size cups: a 16-notch side for SRAM T47 DUB, Enduro T47 and PF30 cups, and a 12-notch side for Chris King ThreadFit. It takes a 1/2 in drive ratchet or torque wrench.
Highlights
- 16-notch side: 52.2 mm cup OD
- 12-notch side: 50.4 mm cup OD
- Installs and removes external-bearing cups
- 1/2 in square drive
- Aluminium body
- Super B Classic range
Which side you need
The 16-notch side fits SRAM T47 DUB, Enduro T47 and Enduro PF30 external-bearing cups (cup outside diameter 52.2 mm). The 12-notch side fits Chris King ThreadFit T47 and ThreadFit 30 (cup outside diameter 50.4 mm). Count the notches on your cup before you start.
Drive
Use it with a 1/2 in drive socket wrench or ratchet. A 1/2 in drive torque wrench lets you install cups to the bottom bracket maker's torque figure. Prefer to leave it to us? Our workshop can remove, prepare and install your bottom bracket.
Compatibility & fit
For the cups listed above only. Check the notch count and cup diameter of your bottom bracket: other T47 and BSA cups with different notch counts or diameters need a different tool. Not for press-fit bearing extraction or installation.
Super B offers a limited lifetime warranty: under normal use, a tool with a defect in material or manufacture will be repaired or replaced. It doesn't cover normal wear, or damage from accident, abuse, neglect, modification or improper use. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Super B's Australian distributor.
- Dual-sided 12- and 16-notch design
- 16-notch: SRAM T47 DUB, Enduro T47, PF30 (52.2 mm OD)
- 12-notch: Chris King ThreadFit T47 / ThreadFit 30 (50.4 mm OD)
- 1/2 in drive
- Aluminium
| Brand | Super B |
|---|---|
| Model | TB-1076 B.B. Tool |
| Side 1 | 16-notch, cup OD 52.2 mm: SRAM T47 DUB, Enduro T47, PF30 |
| Side 2 | 12-notch, cup OD 50.4 mm: Chris King ThreadFit T47, ThreadFit 30 |
| Drive | 1/2 in square |
| Material | Aluminium |
| Range | Super B Classic |
| SKU | BCP-TB1076 |
| Model # | TB1076 |
| Barcode # | 4710898410411 |
| Brand | Super B Tools |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.080m |
| Shipping Length | 0.300m |
