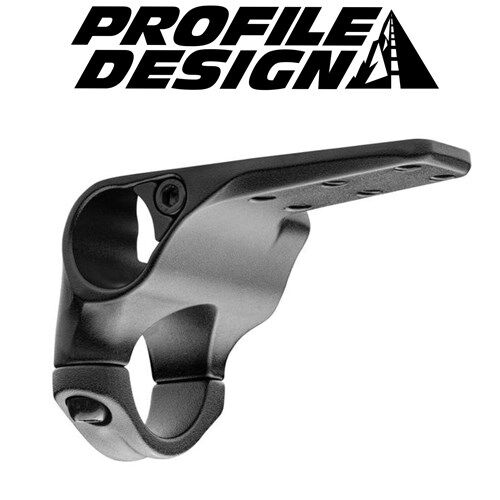

The Supersonic (J5) bracket is the core of Profile Design's T-Carbon aerobar line, built for adjustability so you can dial in your position.

Highlights

  • Inline Compression Clamp: single-bolt extension adjustment
  • In-line wedge designed to reduce drag and even out clamping force
  • 42 mm stack; up to 70 mm with the optional riser kit, per Profile Design
  • 31.8 mm bar clamp, 22.2 mm extension clamp
  • Forged 6061-T6 aluminium, 266 g

Stack

Stack height is 42 mm. Profile Design says stack can be increased up to 70 mm with its optional Aerobar Bracket Riser Kit.

Compatibility & fit

Clamps a 31.8 mm base bar and takes 22.2 mm extensions. Follow the Supersonic (J5) Bracket Kit installation instructions.

Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.

Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.

  • Core bracket of the T-Carbon line
  • Single-bolt Inline Compression Clamp
  • 31.8 mm base bar, 22.2 mm extensions
  • 42 mm stack, 37 mm width adjustment
  • Forged 6061-T6 aluminium
  • 266 g
MaterialsForged 6061-T6 aluminium
Stack height42 mm (can be increased up to 70 mm with the optional Aerobar Bracket Riser Kit)
Width adjustment37 mm
Base bar clamp diameter31.8 mm
Extension clamp diameter22.2 mm
ColourBlack
Weight266 g
SKU BCP-ACJ5BRKTKT
Model # ACJ5BRKTKT
Barcode # 0723660005559
Brand Profile Design
Shipping Weight 0.4800kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.800m
