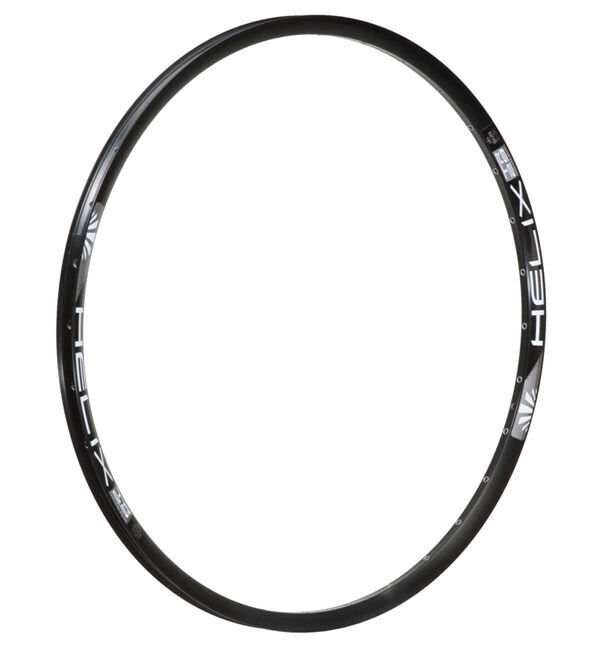

SUNringlé's Helix TR29 rim in 27.5in, 28-hole, black — an all-duty disc rim SUNringlé rates for trail and downhill use.

Highlights

  • 27.5in (584), 28-hole
  • 29mm external / 26mm internal width, 22mm section height
  • Sleeved joint construction
  • Disc brake only

Built for trail and downhill

SUNringlé lists the Helix TR29 for trail (AM) and downhill use, at 541g for the 27.5in rim. ERD is 561mm, as listed by Dirt Works.

Compatibility & fit

28-hole flange hub required to build this rim; it isn't cross-drilled to another hole count. Disc brake only — no rim-brake track. Rim only — hub, spokes and tubeless valve are sold separately. The Tune workshop builds and trues wheels around this rim.

SUNringlé parts are covered by the Hayes Bicycle Group Limited Warranty: repair or replacement, at Hayes' discretion, for defects in materials or workmanship within two years of the original purchase, to the original owner, excluding normal wear, cosmetic damage, crash or misuse damage and non-HBG parts. For warranty support, return the product to Tune Cycles and we'll manage the claim with SUNringlé's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 27.5in (584), 28-hole
  • 29mm external / 26mm internal width
  • Sleeved joint construction
  • Disc brake only
  • Rated for trail and downhill use
BrandSUNringlé
ModelHelix TR29
Wheel size27.5in (584)
Hole count28H
External width29mm
Internal width26mm
Section height22mm
ERD561mm
ConstructionSleeved joint
Brake compatibilityDisc only
Weight0.54kg
ColourBlack
Part numberRF9E28P13605C
SKU DTW-SRG-RF9E28P13605
Barcode # 844171062418
Brand SUNringlé
Shipping Weight 1.5000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
