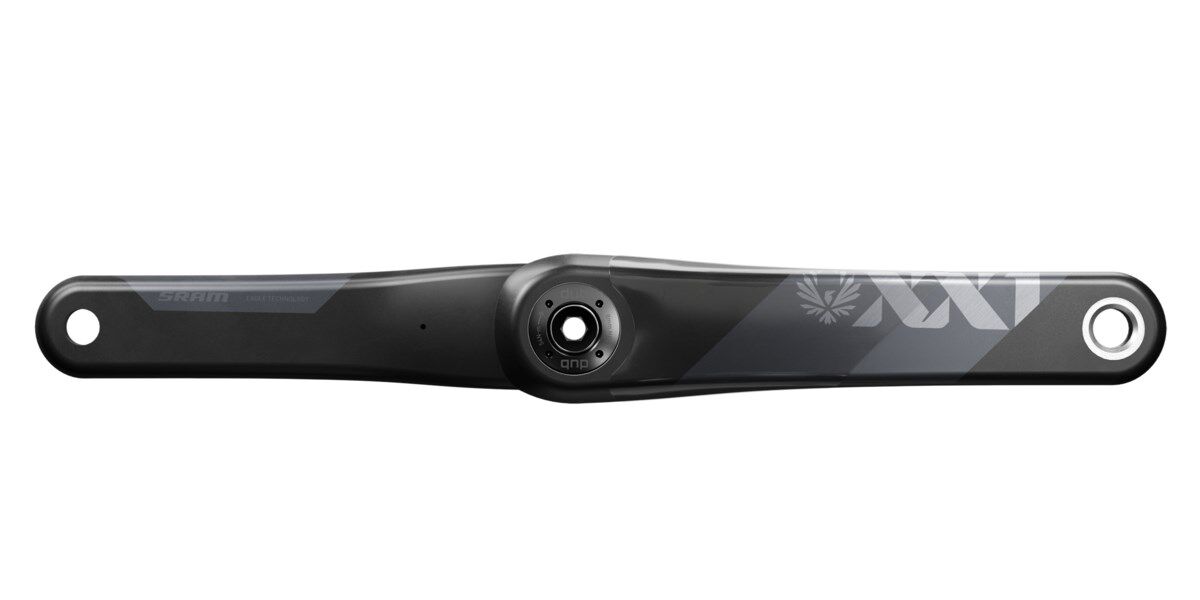

Build your own dream Eagle drivetrain from the ground up with SRAM's lightest, stiffest carbon mountain bike crank arms. This XX1 Eagle DUB crank arm assembly gives you the bare CARBON TUNED arms and DUB spindle in a 175 mm length, ready to pair with the spider, chainring and power meter of your choice.

Highlights

  • 175 mm crank length for added leverage, favoured by taller riders and climbers
  • CARBON TUNED arms tuned for maximum stiffness and efficient power transfer
  • SRAM DUB 29 mm spindle for a simple, durable bottom bracket interface
  • 8-Bolt direct mount interface for 8-bolt chainrings and Quarq power meter spiders
  • Grey finish to match XX1 Eagle componentry

Crank arms only, your build your way

This is the crank arm assembly in isolation. The bottom bracket, spider and chainrings are not included, so you can spec exactly the chainline, ring size and power meter your bike needs. SRAM Torx T20 mounting bolts are supplied for the 8-bolt interface.

DUB and 8-Bolt explained

The DUB spindle is a 29 mm SRAM standard that runs on a matching SRAM DUB bottom bracket (sold separately) to suit your frame's shell. The 8-Bolt direct mount interface accepts SRAM 8-bolt chainrings and the Quarq DZero XX1 Eagle power meter spider for a clean, quiet, low-maintenance drive side.

Compatibility and fit

Suits SRAM Eagle 12-speed drivetrains. Requires a SRAM DUB bottom bracket matched to your frame and an 8-bolt chainring or 8-bolt spider, plus a chainring to complete the crankset. Not compatible with SRAM 3-bolt direct mount chainrings. Pedal thread is 9/16 inch.

SRAM warrants this product to be free from defects in materials and workmanship in line with SRAM's standard warranty terms (generally two years from the original date of purchase). The warranty covers manufacturing defects and does not cover damage from crashes, abuse, improper installation, neglect, normal wear or modification.

For any warranty claim or support, please return the item to Tune Cycles and we will manage the process on your behalf.

  • SRAM XX1 Eagle DUB crank arm assembly, 175 mm length
  • CARBON TUNED carbon fibre crank arms
  • SRAM DUB 29 mm spindle interface
  • 8-Bolt direct mount chainring and power meter interface
  • 12-speed SRAM Eagle compatible
  • Grey finish
  • 9/16 inch pedal thread
  • Includes SRAM Torx T20 mounting bolts
  • Bottom bracket, spider and chainrings not included
Brand SRAM
Model XX1 Eagle DUB Crank Arm Assembly
SRAM part number 00.3018.270.175
Crank length 175 mm
Arm material Carbon (CARBON TUNED)
Spindle interface SRAM DUB (29 mm)
Chainring/spider interface 8-Bolt direct mount
Speeds 12-speed Eagle
Pedal thread 9/16 inch
Colour Grey
Power meter compatibility Quarq DZero XX1 Eagle 8-bolt spider
Included Crank arms, SRAM Torx T20 bolts
Not included Bottom bracket, spider, chainrings
SKU PSI-SR003018270175
Model # 003.018.270.175
Barcode # 710845839283
Brand SRAM
