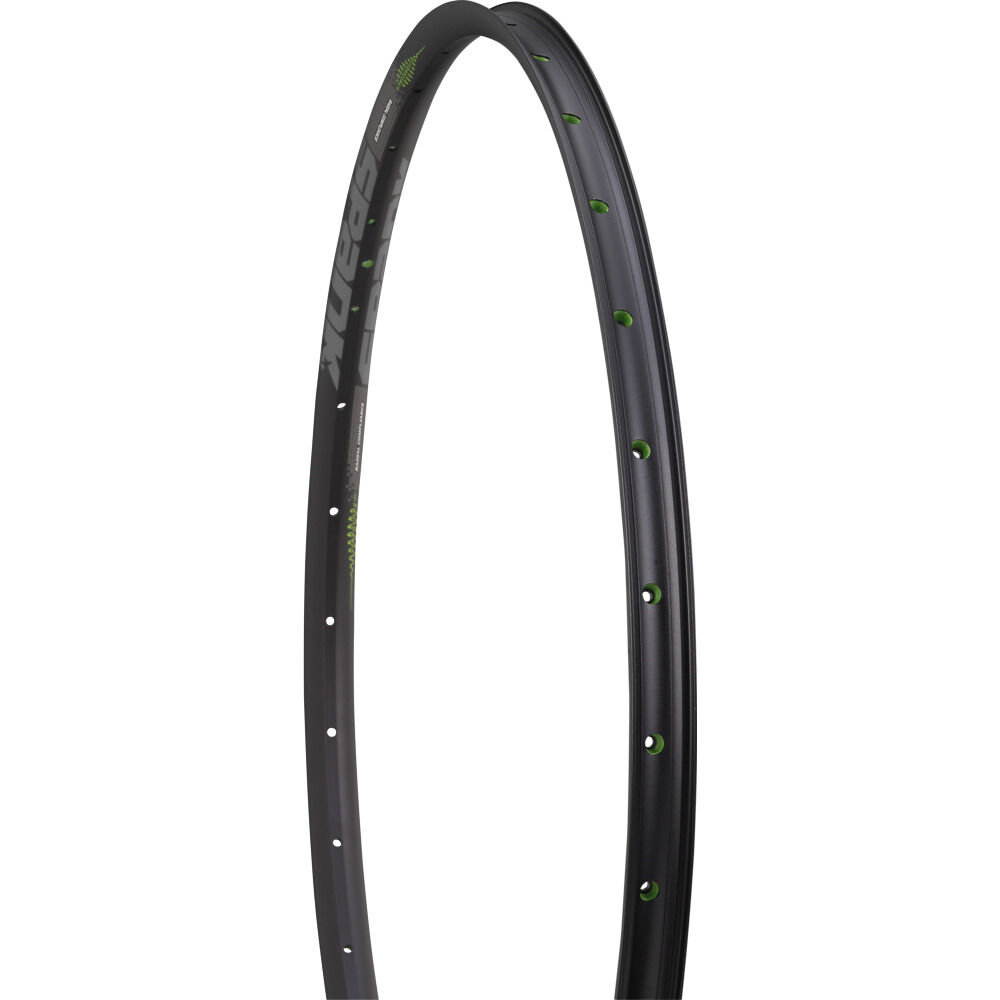

The Spank Flare 24 Vibrocore is a gravel-specific alloy rim with Spank's foam-filled Vibrocore core, giving a wide, tubeless-ready platform for modern gravel tyres. We build it into a complete wheel to the hole count and axle standard you need.

Highlights

  • 24mm internal width suits wide gravel tyres from 35c to 62c (1.5in–2.3in)
  • Dynamal alloy construction with a low 16.5mm profile depth
  • Vibrocore foam core damps vibration through the rim
  • Tubeless-ready with Bead Nip bead seats
  • Available in 650b/27.5in and 700c/29in, 28H or 32H

Built for gravel

The symmetric 24mm profile is designed around wide modern gravel tyres, with a low-profile shape Spank says improves radial compliance and traction on rough gravel.

Compatibility & fit

Fits 650b/27.5in and 700c/29in tyres from 35c to 62c. Nipple washers aren't included with this rim and are recommended to prevent spoke pull – ask our workshop about fitting them when we build your wheel.

Sizes & options

Size
27.5in 28H
27.5in 32H
29in 28H
29in 32H
Spank's standard warranty on the Flare 24 Vibrocore rim covers manufacturer defects in materials and workmanship for two years from the original purchase date through an authorised Spank seller; it doesn't cover wear and tear, accidents, abuse or unauthorised repairs. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
  • 24mm internal rim width
  • 16.5mm profile depth
  • Dynamal alloy construction
  • Vibrocore foam-filled core
  • Tubeless-ready Bead Nip bead seats
  • Fits 35c–62c (1.5in–2.3in) tyres
Inner width24mm
Outer width28mm
Profile depth16.5mm
Tyre compatibility35c–62c (1.5in–2.3in)
ERD (650b/27.5in)564mm
ERD (700c/29in)602mm
Weight (650b/27.5in)405g
Weight (700c/29in)430g
Hole count28H or 32H
MaterialDynamal alloy
SKU LNK-P-SPA-FLARE24-V-BS6X
Brand Spank
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
