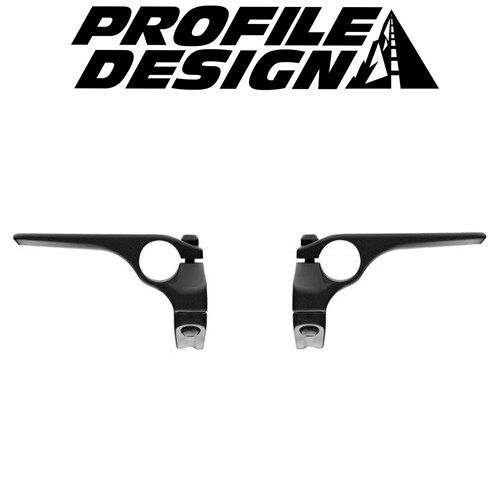

The Sonic bracket is forged aluminium for solid, easy-to-use construction, with what Profile Design calls an industry-leading fit range. It clamps 31.8 mm bars and 22.2 mm extensions in aluminium or carbon.

Highlights

  • 42.6 mm stack height
  • 37 mm width adjustment
  • Takes 22.2 mm aluminium and carbon extensions
  • Compatible with Profile Design riser kits

Compatibility & fit

Clamps a 31.8 mm basebar. Works with Profile Design's Aerobar Bracket Riser Kits and with 22.2 mm extensions in aluminium or carbon. Extensions and armrests aren't part of this bracket kit's listed specifications. Profile Design's Sonic installation instructions give 6 Nm for the handlebar clamp and extension clamp bolts.

Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.

Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.

  • Forged 6061-T6 aluminium
  • 42.6 mm stack
  • 37 mm width adjustment
  • 31.8 mm basebar, 22.2 mm extensions
  • 234 g (brand-listed)
MaterialForged 6061-T6 aluminium
Stack height42.6 mm
Width adjustment37 mm
Basebar clamp31.8 mm
Extension clamp22.2 mm
Clamp bolt torque6 Nm (handlebar and extension clamps)
ColourBlack
Weight (brand-listed)234 g
SKU BCP-ACSNCBRKTKT
Model # ACSNCBRKTKT
Barcode # 0723660007416
Brand Profile Design
Shipping Weight 0.4800kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.800m
