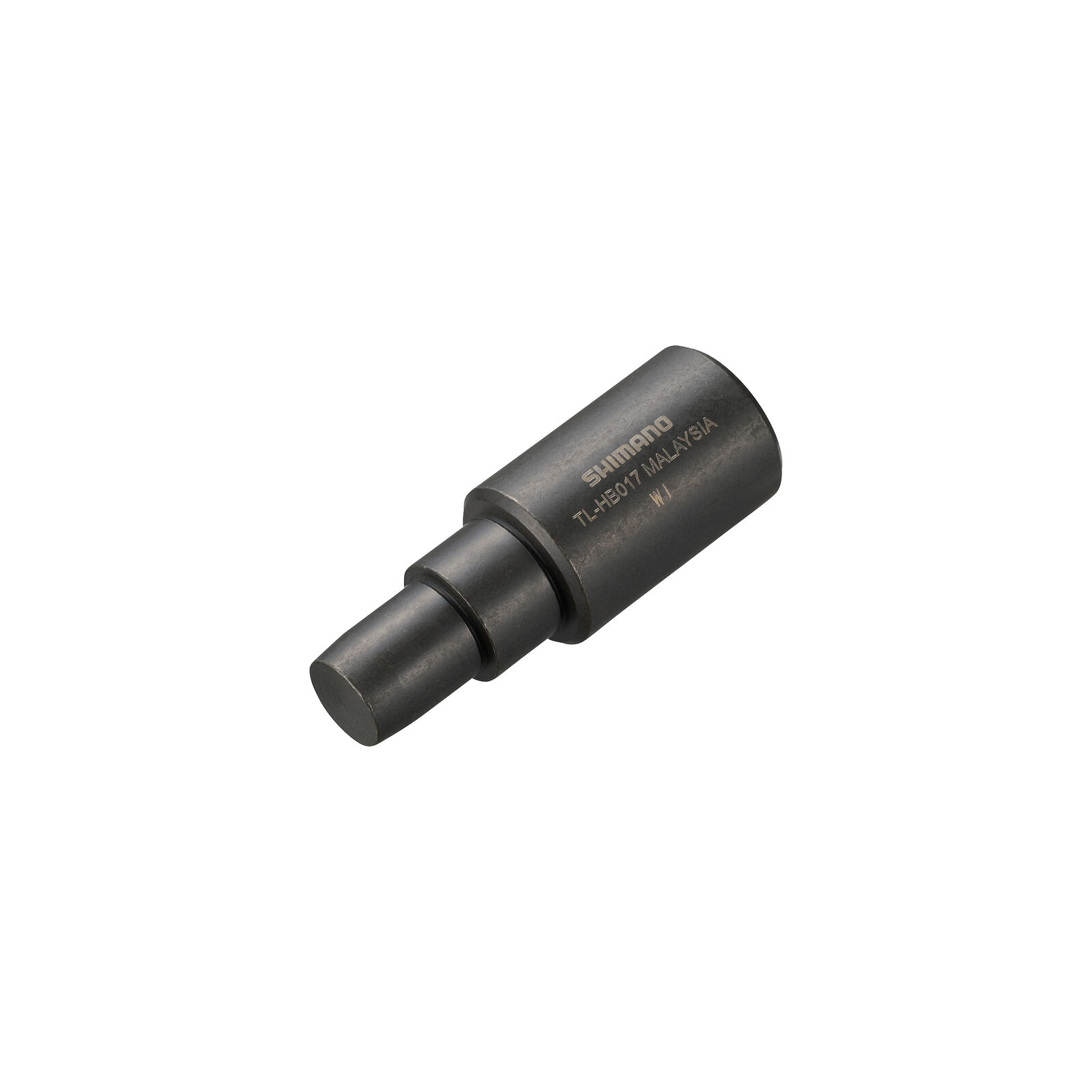

Shimano TL-HB017 Hub Bearing Remover
SKU code: SHM-Y2LF9802T
Sold Out
Service your latest-generation Shimano XTR and XT wheels and hubs the right way. The genuine Shimano TL-HB017 hub bearing remover lets you drive out the axle, bearing and seal ring cleanly, so you can replace worn bearings without damaging expensive hub internals.
Highlights
- Removes the hub axle, bearing and seal ring in a single, controlled operation
- Genuine Shimano workshop tool for accurate, repeatable servicing
- Protects costly hub shells and bearing seats from accidental damage
- Purpose-made for current XTR and XT wheel and hub platforms
What it does
The TL-HB017 is the dedicated bearing removal tool for Shimano's newest mountain bike hubs. It seats on the hub axle so the load is applied squarely, letting you press the axle and cartridge bearing out together rather than improvising with drifts that can mar the bearing bore.
How to use
Fit the TL-HB017 onto the hub axle, then strike it with a soft-face mallet to drive out the axle, bearing and seal ring. Always work on a clean bench and follow the relevant Shimano dealer manual for your hub.
Compatibility & fit
Designed for replacing bearings on the following Shimano wheels and hubs:
- Wheels: XTR WH-M9200, XTR WH-M9220, XT WH-M8200
- Hubs: XTR HB-M9210, XTR FH-M9210, XT HB-M8210, XT FH-M8210
If your hub or wheel is not listed above, check the Shimano dealer manual to confirm the correct service tool before ordering.
This genuine Shimano tool is covered against manufacturing defects in materials and workmanship. The warranty does not cover normal wear, misuse, or damage from use outside the intended servicing application.
For warranty support, return the item to Tune Cycles and we'll manage the claim for you.
This warranty is in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- Genuine Shimano hub bearing remover (TL-HB017)
- Drives out hub axle, bearing and seal ring together
- Seats on the hub axle for square, controlled removal
- Helps prevent damage to hub shell and bearing seats
- Used with a soft-face mallet
- Purpose-built for current Shimano XTR and XT hubs and wheels
| Type | Hub bearing remover (workshop service tool) |
|---|---|
| Tool code | TL-HB017 |
| Part number | Y2LF9802T |
| Brand | Shimano |
| Removes | Hub axle, bearing and seal ring |
| Compatible wheels | XTR WH-M9200, XTR WH-M9220, XT WH-M8200 |
| Compatible hubs | XTR HB-M9210, XTR FH-M9210, XT HB-M8210, XT FH-M8210 |
| SKU | SHM-Y2LF9802T |
| Barcode # | 4550170077938 |
| Brand | Shimano |
